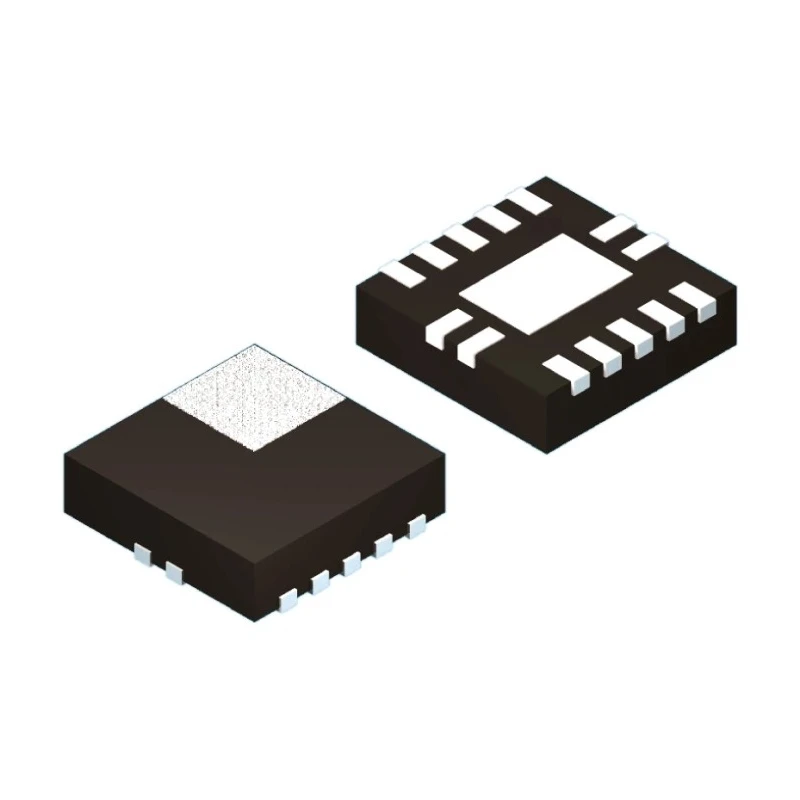

Nexperia Analogue Switch 4 CMOS Quad SPST 14-Pin VQFN 2 to 6 V Operating Voltage 74HC4066BQ,115

Name: Nexperia Analogue Switch 4 CMOS Quad SPST 14-Pin VQFN 2 to 6 V Operating Voltage 74HC4066BQ,115
Brand: Nexperia
SKU: 106273
Price: 0.28 USD
Availability: InStock



Category Multiplexer & Demultiplexer ICs Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	0.95mm
Length	3.1mm
Model	74HC4066BQ,115
Width	2.6mm
Mount Type	Surface
Compatibility	Input CMOS, Output CMOS
Output type	CMOS
Series	74HC4066
Configuration	Quad SPST
Maximum Operating Temperature	125°C
Package Type	VQFN
Minimum Operating Temperature	-40°C
Operating Voltage	2 to 6 V
Standards/Approvals	RoHS
Pin Count	14
Number of Elements per Chip	4
Maximum Supply Voltage	10V
Logic Family	CMOS
Minimum Supply Voltage	2V
Maximum On State Resistance	142Ω

Key Features

Operates at a voltage range of 2 to 6 volts.
Features four independent switches per chip for versatile analog signal routing.
Has a maximum on-state resistance of 142 ohms ensuring low signal loss.
Compatible with CMOS logic input and output types.
Packaged in a compact 14-pin VQFN surface-mount package.
Designed to operate reliably from -40°C to 125°C ambient temperature.
Measuring 3.1 mm in length, 2.6 mm in width, and 0.95 mm in height for small footprint applications.
Fully RoHS compliant for environmentally safe use.

Product Description

Nexperia 74HC4066BQ,115 analogue switch is a high-speed CMOS quad SPST device supplied in a 14-pin VQFN package. Operating within voltage ranges from 2 to 6 volts, it offers efficient low power consumption with CMOS logic input and outputs, making it ideal for sensitive electronic switching applications.

This analogue switch integrates four separate single-pole single-throw switches on a single chip, providing excellent signal routing capabilities for analog circuits. Its maximum on-state resistance is 142 ohms, ensuring minimal signal degradation during operation.

The device measures 3.1 mm length, 2.6 mm width, and has a height of 0.95 mm, facilitating compact PCB designs especially in industrial, automotive, communication, and general electronic applications. It operates reliably over a wide temperature range of -40°C to 125°C, suitable for diverse environmental conditions.

Manufactured with RoHS compliant processes, this switch aligns with current environmental standards for electronics components. The 74HC family is well known for combining high-speed logic performance with CMOS technology advantages.

Operates at a voltage range of 2 to 6 volts. Contains four independent switches per chip supporting versatile analog signal routing. Maximum on-state resistance of 142 ohms to reduce signal loss. Compatible with CMOS input and output signals.

Small footprint 14-pin VQFN surface-mount package. Wide operating temperature range from -40°C to 125°C. Compact dimensions of 3.1 mm length, 2.6 mm width, and 0.95 mm height. RoHS compliant for environmental safety. Suitable for industrial, automotive, communication, and general electronics use.

Part of the high-speed 74HC CMOS logic IC family.

This analogue switch is an excellent choice for designers focusing on efficient analog multiplexing and demultiplexing within demanding environments. Browse EnvMart categories for related semiconductors and logic ICs to find compatible components.
