Nexperia 6.2 V Zener Diode, Single 1.5 W 5% Voltage Regulator, Surface Mount 4-Pin SOT-223 BZV90-C6V2,115

Free Delivery in India | Lowest Global Shipping Charges

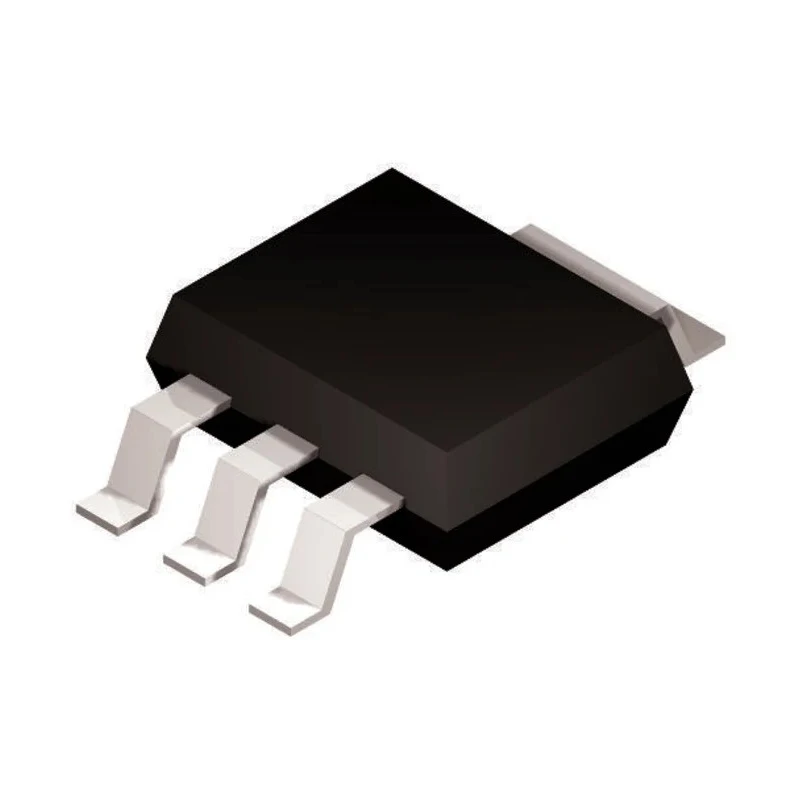

Nexperia 6.2 V Zener Diode, Single 1.5 W 5% Voltage Regulator, Surface Mount 4-Pin SOT-223 BZV90-C6V2,115

Name: Nexperia 6.2 V Zener Diode, Single 1.5 W 5% Voltage Regulator, Surface Mount 4-Pin SOT-223 BZV90-C6V2,115
Brand: Nexperia
SKU: 164471
Price: 0.54 USD
Availability: InStock



Category Zener Diode Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.8mm
Length	6.7mm
Model	BZV90-C6V2,115
Mount Type	Surface
Series	BZV90
Maximum Operating Temperature	150°C
Package Type	SOT-223
Minimum Operating Temperature	-65°C
Pin Count	4
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	1.5W
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	3μA
Nominal Zener Voltage Vz	6.2V
Zener Type	Voltage Regulator
Maximum Zener Impedance	10Ω
Typical Voltage Temperature Coefficient	2.3mV/°C
Nexperia 1, 6.2 V Zener Diode, Single 1 W 5 % Surface 4-Pin UPAKBrand	Nexperia

Key Features

Nominal Zener voltage of 6.2 V with ±5% tolerance ensures precise voltage stabilization.
Maximum power dissipation rating of 1.5 W supports moderate load applications.
Surface mount type in compact SOT-223 package ideal for space-saving PCB designs.
Low maximum reverse leakage current of 3 μA minimizes power losses.
Wide operating temperature range from -65°C to 150°C suits harsh environments.
Pin count of 4 provides stable mechanical and electrical connection.
Typical voltage temperature coefficient of 2.3 mV/°C compensates for temperature fluctuations.
Compliance with automotive standard AEC-Q101 ensures reliability in automotive applications.

Product Description

Nexperia BZV90-C6V2,115 is a single Zener Diode designed for regulating voltage with a nominal voltage rating of 6.2 V and power dissipation of 1.5 W. It is packaged in a compact 4-pin SOT-223 surface mount style, making it suitable for modern PCB assemblies in industrial and automotive electronic circuits.

This Zener Diode provides precise voltage regulation with a ±5% tolerance on the Zener voltage, ensuring circuit protection and stable voltage levels in sensitive devices. The maximum reverse leakage current is limited to 3 μA, optimizing efficiency and reducing unwanted power dissipation.

The device operates reliably under a wide temperature range from -65°C to 150°C, making it ideal for harsh environment applications including automotive and industrial electronics. Its compliance with the AEC-Q101 automotive standard further underlines its robustness and suitability for automotive safety-critical systems.

The low maximum Zener impedance of 10 Ω and typical voltage temperature coefficient of 2.3 mV/°C contribute to consistent voltage regulation performance even under temperature variations. The diode is designed for surface mounting with a 4-pin SOT-223 package that enhances ease of assembly and mechanical stability on printed circuit boards.

This product from the BZV90 series by Nexperia is widely used in electronic devices requiring voltage regulation, protection circuits, and general semiconductor applications in industrial, automotive, consumer, and manufacturing sectors.

Nominal Zener voltage: 6.2 V, ±5% tolerance. Power dissipation: 1.5 W maximum. Package: Surface mount SOT-223, 4 pins. Operating temperature range: -65°C to 150°C. Maximum reverse leakage current: 3 μA. Automotive grade AEC-Q101 certified.

Typical voltage temperature coefficient: 2.3 mV/°C. Maximum Zener impedance: 10 Ω. Applications include voltage regulation and circuit protection in automotive and industrial electronics. Explore more semiconductor components from Nexperia and other reliable brands at EnvMart for your industrial, manufacturing, automotive, and electronics design needs.
