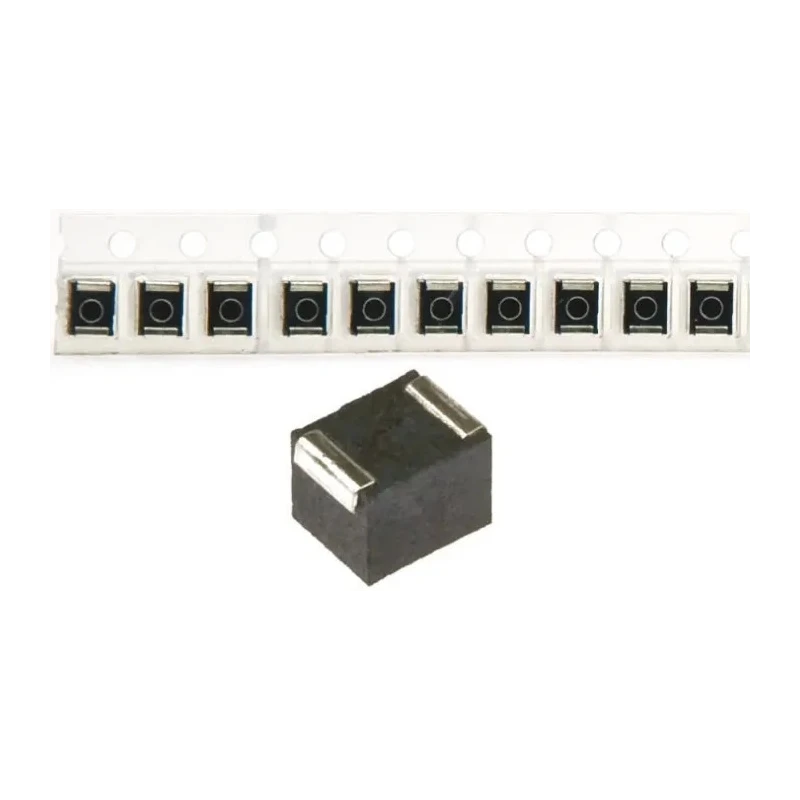

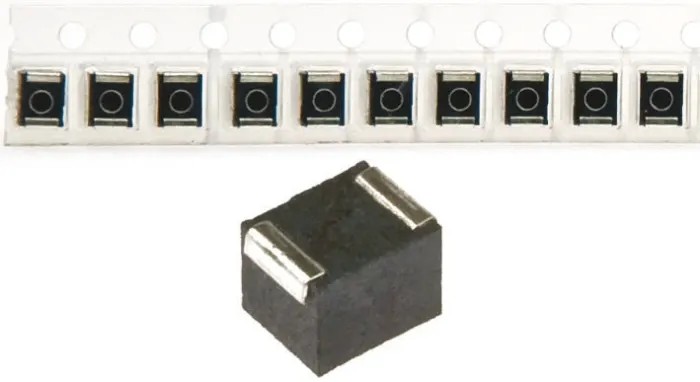

TDK 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 470 μH ±5 % 25 mA Idc Q:20 NLV32T-471J-PF
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TDK |
| Height | 2.2mm |
| Length | 3.2mm |
| Model | NLV32T-471J-PF |
| Depth | 2.5mm |
| Series | NLV-PF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 470μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 25mA |
| Pin Count | 2 |
| Maximum DC Resistance | 40Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 4MHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Wirewound |
| Applications include | TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, HDDs, etc |
Key Features
- Wirewound construction provides high reliability and stable inductance.
- Shielded design minimizes electromagnetic interference and noise.

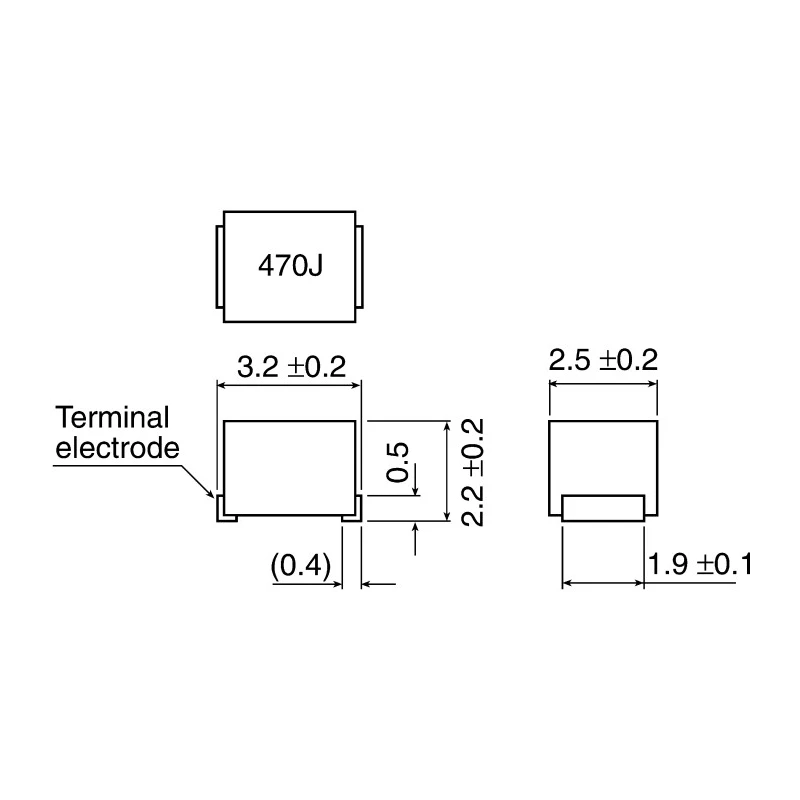

- Compact 1210 surface mount package with dimensions 3.2mm × 2.5mm × 2.2mm.
- Operating temperature range from -40°C to 105°C ensures wide application use.
- Maximum DC resistance of 40 Ω supports efficient circuit performance.
- Ferrite core material enhances magnetic properties and quality factor.
- Suits applications in TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, and HDDs.
- RoHS compliant meeting environmental and safety standards.
Product Description
TDK NLV32T-471J-PF is a 1210 shielded wirewound surface mount inductor featuring a ferrite core, designed for high-performance electronic circuits requiring stable inductance and low interference. With an inductance of 470 μH ±5 %, a maximum DC current rating of 25 mA, and a quality factor of 20, this inductor delivers reliable signal line performance in compact surface mount format.
The robust wirewound construction and shielded design effectively minimize electromagnetic interference, making it ideal for sensitive electronics. The component measures 3.2mm in length, 2.5mm in depth, and 2.2mm in height, fitting standard 1210 packages for easy PCB mounting. It operates efficiently across a temperature range of -40°C to 105°C, ensuring durability in harsh environments.
The maximum DC resistance of 40 Ω supports efficient power handling, while the ferrite core improves magnetic characteristics and operational quality. Molded with a highly heat-resistant thermoplastic resin, the component ensures mechanical stability during soldering and operation.
Typical applications include consumer electronics such as TVs, VCRs, digital cameras, xDSL modems, automotive audio systems, electronic control units (ECU), and hard disk drives (HDDs). Compliance with RoHS standards confirms the product's adherence to environmental regulations.
Wirewound construction provides high reliability and stable inductance. Shielded design minimizes electromagnetic interference and noise. Compact 1210 surface mount package with dimensions 3.2mm × 2.5mm × 2.2mm. Operating temperature range from -40°C to 105°C ensures wide application use.
Maximum DC resistance of 40 Ω supports efficient circuit performance. Ferrite core material enhances magnetic properties and quality factor. Suits applications in TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, and HDDs.
RoHS compliant meeting environmental and safety standards.
This shielded wirewound inductor is a dependable choice for advanced industrial, automotive, laboratory, telecommunications, and consumer electronics applications requiring compact and high-performance inductors.
Explore more high-quality Surface Mount Inductors and electronic components in EnvMart's catalog for optimized electronic designs and production efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 470 μH with a tolerance of ±5 %.
This model has dimensions of 3.2mm in length, 2.5mm in depth, and 2.2mm in height, fitting the standard 1210 package.
The maximum DC current rating for this inductor is 25 mA.
It operates efficiently within a temperature range of -40°C to 105°C.
The core material of this inductor is ferrite, which enhances its magnetic properties.
The maximum DC resistance is 40 Ω, which supports efficient circuit performance.
The minimum quality factor for this inductor is 20.
The termination style of this inductor is surface mount, suitable for PCB mounting.
This inductor is suitable for applications in TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, and HDDs.
The maximum self-resonant frequency is 4 MHz.
Yes, this inductor is RoHS compliant, meeting environmental and safety standards.
This inductor features a wirewound construction, providing high reliability and stable inductance.
