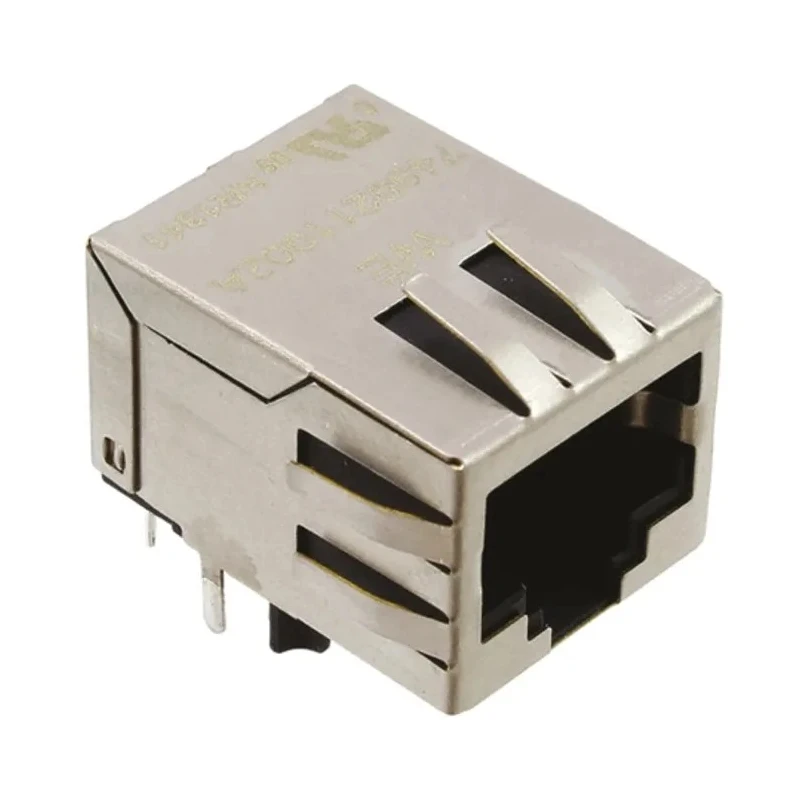

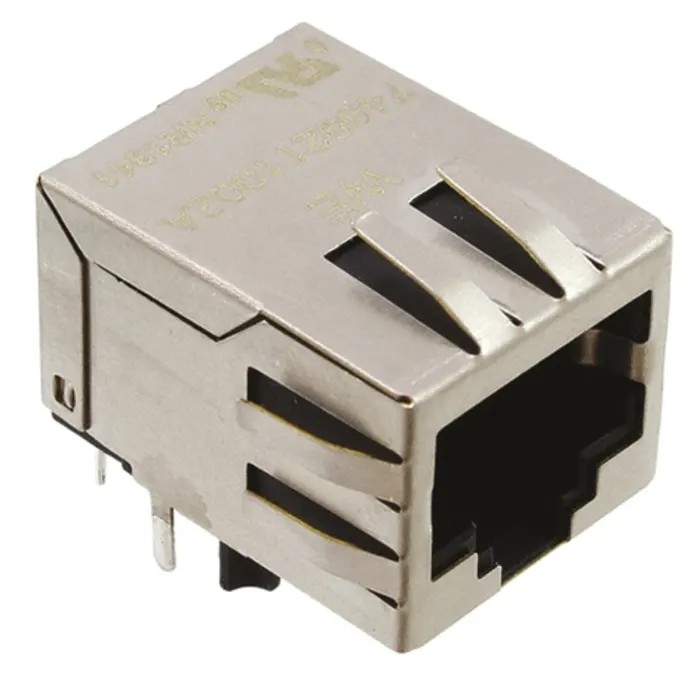

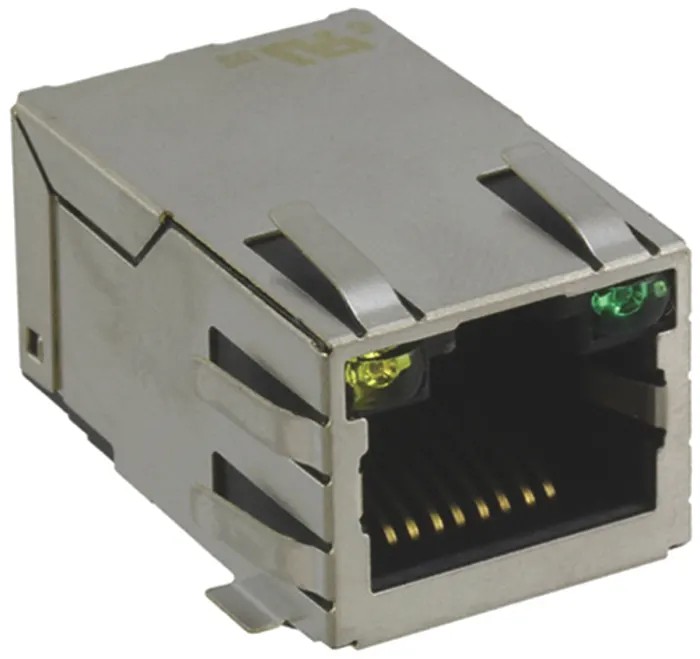

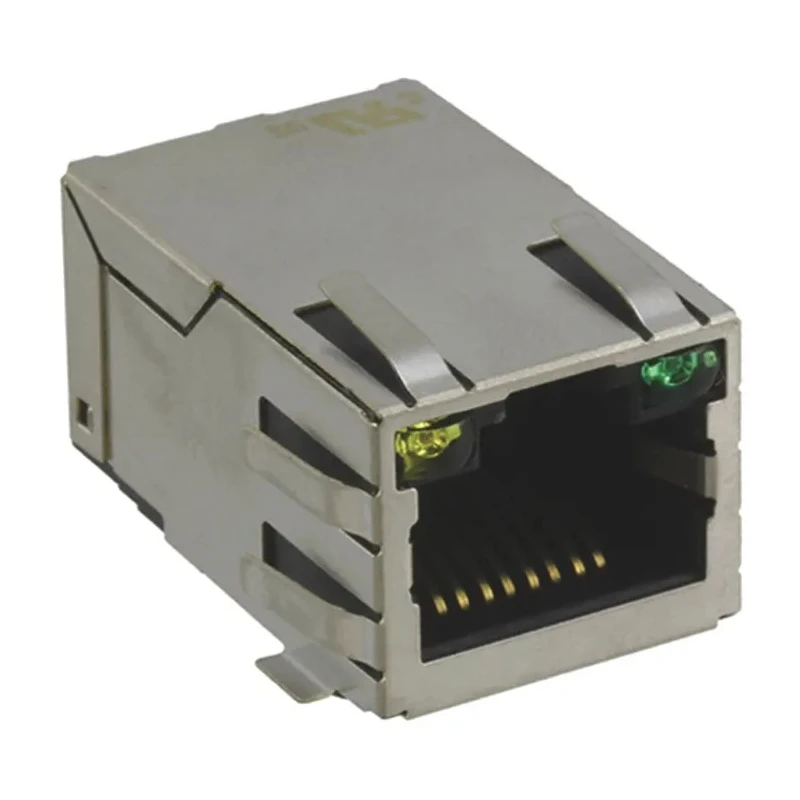

Wurth Elektronik LAN Ethernet Transformer Through Hole Mount 1 Output 1:1 Turns Ratio 70 °C 7499211002A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Length | 13.74mm |
| Model | 7499211002A |
| Depth | 21.84mm |
| Width | 15.88mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | 0°C |
| Interfaces | LAN applications, HUB, routers and switches |
| Number of outputs | 1 |
| Standards/Approvals | RoHS |
| Insertion Loss | -1dB |
| Minimum Operating Frequency | 1MHz |
| Maximum Operating Frequency | 100MHz |
| Turns Ratio | 1:1 |
| Turns Ratio1 | 1 |
| Supported Ethernet Standards | 10/100 Base |
Key Features
- Compliant with IEEE 802.3 standards for Ethernet communication.
- Operates over a frequency range of 1 MHz to 100 MHz for versatile networking uses.
- Supports operating temperatures from 0 °C to 70 °C, suitable for industrial environments.
- Through Hole mount design ensures secure PCB installation.
- Insertion loss is low at -1 dB, maintaining signal quality.
- Contains a minimum inductance of 350 μH with 8 mA bias for stable performance.
- Ideal for ADSl modems, embedded PCs, LAN applications including HUBs, routers, and switches.
Product Description
Wurth Elektronik 7499211002A LAN Ethernet Transformer is a high-quality through-hole mounted transformer designed to meet demanding networking applications. It provides a 1 output with a 1:1 turns ratio, ensuring effective signal transmission and isolation for Ethernet devices.
Designed to comply with IEEE 802.3 standards, this transformer supports 10/100 Base Ethernet communication protocols. It features a frequency operation range from 1 MHz to 100 MHz and a low insertion loss of -1 dB to maintain signal integrity over transmission lines. The transformer supports operating temperatures from 0 °C up to 70 °C, making it suitable for industrial and commercial applications.
Constructed with precision, the transformer dimensions measure 13.74 mm in length, 15.88 mm in width, and 21.84 mm in depth, facilitating easy integration onto PCBs with through-hole mounting technology. It offers a minimum inductance of 350 μH with an 8 mA bias, delivering stable performance across Ethernet networking equipment.
This device is ideal for use in ADSL modems, embedded PCs, and various LAN equipment such as hubs, routers, and switches where reliable Ethernet connectivity is essential. The product is RoHS compliant, ensuring it meets environmental and safety regulations.
Compliant with IEEE 802.3 standards for Ethernet communication. Features 1:1 turns ratio with 1 output for signal transformation. Operates over a frequency range of 1 MHz to 100 MHz for versatile networking uses. Supports operating temperatures from 0 °C to 70 °C, suitable for industrial environments.
Through Hole mount design ensures secure PCB installation. Dimensions are 13.74 mm (length) x 15.88 mm (width) x 21.84 mm (depth) for compact integration. Insertion loss is low at -1 dB, maintaining signal quality. Contains a minimum inductance of 350 μH with 8 mA bias for stable performance.
Ideal for ADSl modems, embedded PCs, LAN applications including HUBs, routers, and switches.
Discover the full range of networking transformers and components in the Electronics & Electricals category at EnvMart for your industrial, laboratory, and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates over a frequency range of 1 MHz to 100 MHz, making it suitable for various networking applications.
The insertion loss is low at -1 dB, which helps maintain signal quality during transmission.
The dimensions are 13.74 mm in length, 15.88 mm in width, and 21.84 mm in depth, allowing for compact integration onto PCBs.
It features a 1:1 turns ratio, which is essential for effective signal transformation and isolation in Ethernet devices.
It supports operating temperatures from 0 °C to 70 °C, making it suitable for industrial environments.
It is compliant with IEEE 802.3 standards and supports 10/100 Base Ethernet communication protocols.
It uses a through-hole mount design, ensuring secure installation on printed circuit boards (PCBs).
This model is ideal for ADSL modems, embedded PCs, and various LAN applications including hubs, routers, and switches.
It contains a minimum inductance of 350 μH with an 8 mA bias, which contributes to stable performance.
Yes, it is RoHS compliant, ensuring it meets environmental and safety regulations.
It supports LAN applications, including hubs, routers, and switches, facilitating effective networking solutions.
The country of origin is China.
