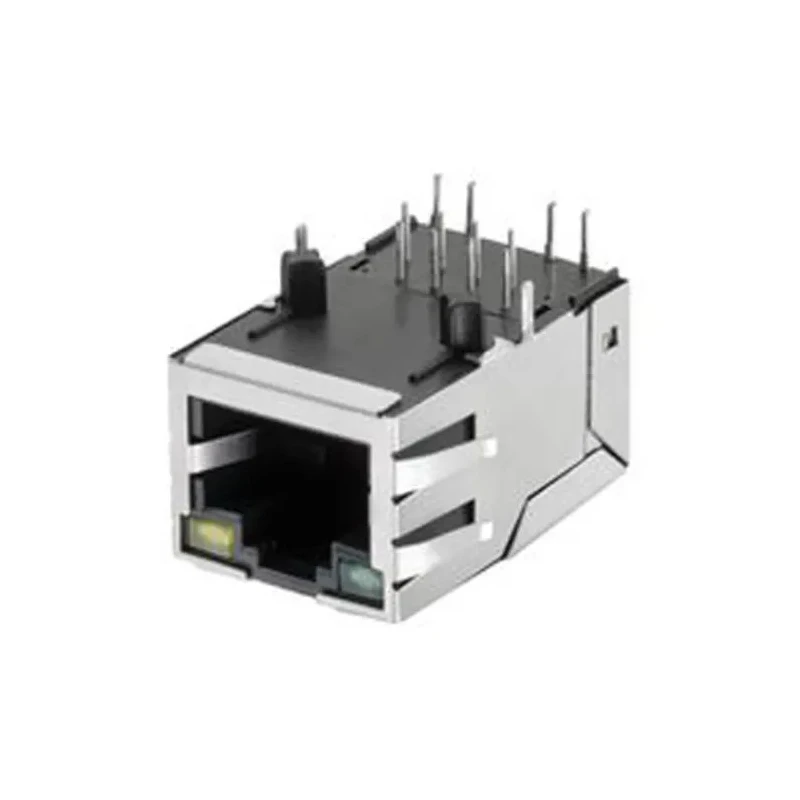

Wurth Elektronik LAN Ethernet Transformer PCB Mount, 1 Output, 1:1 Turns Ratio, 16.2mm x 13.5mm, -40°C to 85°C 7499011441A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Length | 16.2mm |
| Model | 7499011441A |
| Width | 13.5mm |
| Mount Type | PCB |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Standards/Approvals | IEEE 802.3u |
| Insertion Loss | -1dB |
| Minimum Operating Frequency | 1MHz |
| Maximum Operating Frequency | 100MHz |
| Turns Ratio | 1:1 |
| Turns Ratio1 | 1 |
Key Features
- Compact PCB mount with dimensions 16.2mm length and 13.5mm width.
- Operates reliably between temperatures of -40°C and 85°C.
- Meets IEEE 802.3u standards ensuring compatibility with networking protocols.
- Insertion loss is minimized at -1dB for efficient signal transmission.
- Solder termination type for secure PCB attachment.
- Effective frequency range from 1MHz up to 100MHz for versatile network applications.
- Manufactured in China with high-quality components.
Product Description
Wurth Elektronik 7499011441A LAN Ethernet Transformer is a robust PCB-mounted transformer designed to provide signal isolation and conditioning for Ethernet applications. This component is engineered to operate reliably in a wide temperature range of -40°C to 85°C, ensuring stability across various environmental conditions.
The transformer features a compact footprint, measuring 16.2mm in length and 13.5mm in width, which facilitates easy integration into printed circuit boards without consuming excessive space. Its single output and 1:1 turns ratio support stable data transmission, making it suitable for embedded computing, modems, hubs, routers, switches, M2M communication, IoT devices, and EtherCAT networks.
Compliant with IEEE 802.3u standards, the device ensures seamless compatibility with standard Ethernet protocols. The low insertion loss of -1dB optimizes signal integrity, while the solder termination type guarantees firm mounting on PCB traces.
This transformer operates effectively between frequencies of 1MHz to 100MHz, catering to a broad spectrum of Ethernet signal frequencies. Manufactured with precision in China, it upholds quality and reliability standards expected in industrial and commercial Ethernet applications.
Compact PCB mount with dimensions optimized for embedded designs. Wide operating temperature range for diverse environmental conditions. Single output with 1:1 turns ratio supporting Ethernet signal isolation. Low insertion loss enhances signal quality and transmission efficiency.
Meets IEEE 802.3u standards for Ethernet compliance. Solder termination enables secure PCB integration. Frequency range 1MHz to 100MHz accommodates varied applications. Manufactured in China under quality control.
This Wurth Elektronik LAN Ethernet Transformer is ideal for use in industrial automation, networking equipment manufacturing, embedded computing systems, and telecommunications. It supports reliable and efficient data communication in harsh or variable temperature environments.
Explore EnvMart's extensive range of electronic components and transformers to find compatible products for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The transformer measures 16.2mm in length and 13.5mm in width, making it compact for PCB integration.
It operates reliably between -40°C and 85°C, suitable for various environmental conditions.
This transformer has a 1:1 turns ratio, which supports stable data transmission.
It meets IEEE 802.3u standards, ensuring compatibility with standard Ethernet protocols.
The insertion loss is minimized at -1dB, which helps optimize signal integrity during transmission.
It operates effectively within a frequency range of 1MHz to 100MHz, accommodating various Ethernet signal frequencies.
It features a solder termination type, ensuring secure attachment to PCB traces.
This transformer has a single output, designed for Ethernet signal isolation and conditioning.
It is manufactured in China, adhering to quality control standards expected in industrial applications.
It is suitable for use in embedded computing, modems, hubs, routers, switches, M2M communication, IoT devices, and EtherCAT networks.
The mounting type is PCB, allowing easy integration into printed circuit boards.
This model does not specify any additional components; it is designed for direct PCB mounting.
