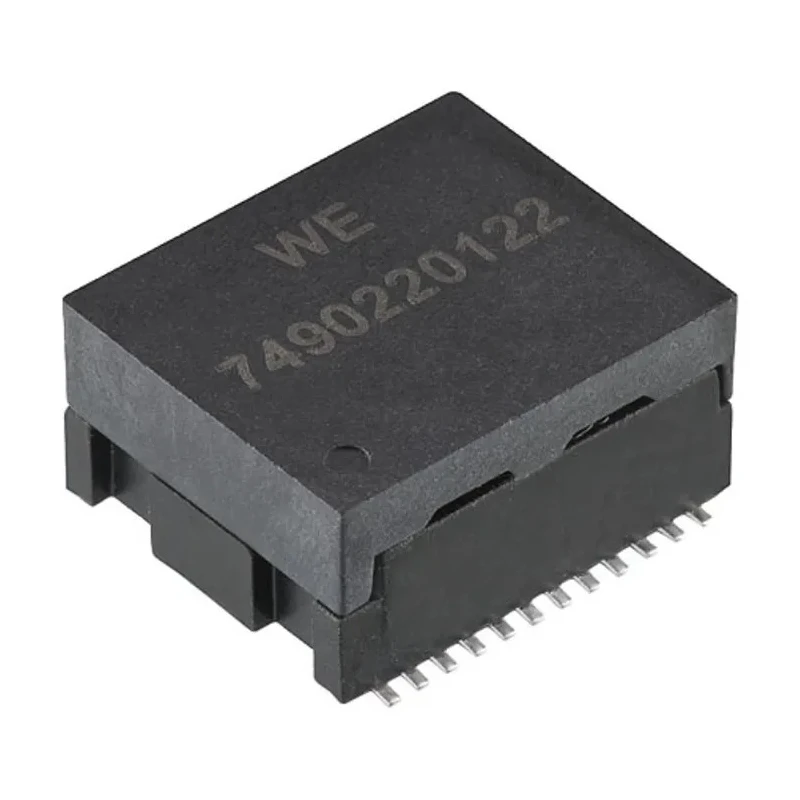

Wurth Elektronik Surface Mount LAN Ethernet Transformer 18.29 mm Length, 14.7 mm Width, 8.8 mm Depth, IEEE 802.3 7490220122
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Length | 18.29mm |
| Depth | 8.8mm |
| Width | 14.7mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | Ethernet |
| Number of outputs | 1 |
| Inductance | 350μH |
| Standards/Approvals | IEEE 802.3at, IEEE 802.3ab, IEEE 802.3u, DAP Black per UL 94 V-0, IEE 802.3bt, IEEE 802.3af |
| Insertion Loss | -1dB |
| Turns Ratio | 1:1 |
| Turns Ratio1 | 1 |
Key Features
- Surface mount transformer designed for Ethernet and Power over Ethernet applications.
- Supports IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, and IEEE 802.3at standards.
- Provides 1 output and insertion loss of -1 dB.
- Inductance rated at 350 μH for high-performance data transmission.
- Operates efficiently between -40°C and 85°C.
- Compact size with 18.29 mm length, 14.7 mm width, and 8.8 mm depth.
Product Description
Wurth Elektronik 7490220122 Surface Mount LAN Ethernet Transformer is a highly efficient magnetic component engineered for Ethernet and Power over Ethernet (PoE) applications. With a compact profile, this transformer is ideal for integration in networking equipment requiring reliable signal integrity and minimal insertion loss.
Designed for compatibility with industry-leading ICs such as AMD, Globespan, Intel, and Realtek, this single-port transformer supports 10/100/1000 Mbit/s Gigabit Ethernet as well as standard hub, router, and switch applications. Its surface mount format ensures ease of automated assembly and robust connectivity.
Supporting IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and upcoming IEEE 802.3bt standards, the transformer delivers seamless performance for both Ethernet and PoE devices. The component complies with UL 94 V-0 for flammability and provides a 1:1 turns ratio for optimal signal transmission.
Surface mount LAN Ethernet transformer suitable for demanding industrial and commercial networking applications. Compact dimensions: 18.29 mm length, 14.7 mm width, 8.8 mm depth for space-constrained PCB designs. Operates over a wide temperature range from -40°C to 85°C for reliable deployment in varying environments.
Features 350 μH inductance, -1 dB insertion loss, and single output for high-speed data transfer. Compatible with most Ethernet IC manufacturers and standards.
This transformer is commonly used in industrial, laboratory instrumentation, commercial networking hardware, and telecommunications, enabling robust and high-performance Ethernet connectivity. Applications include industrial automation controllers, router and switch motherboards, IP cameras, and PoE-powered devices.
Explore LAN Ethernet Transformers and other component solutions from Wurth Elektronik in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The transformer has a length of 18.29 mm, a width of 14.7 mm, and a depth of 8.8 mm.
It has an inductance rating of 350 μH, which supports high-performance data transmission.
This model operates efficiently between -40°C and 85°C, making it suitable for various environments.
The insertion loss is rated at -1 dB, ensuring minimal signal degradation.
It supports IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt standards.
This transformer is designed for surface mounting, facilitating automated assembly.
It provides a single output, suitable for various Ethernet applications.
The turns ratio is 1:1, which is optimal for signal transmission.
It is commonly used in industrial automation controllers, router and switch motherboards, IP cameras, and PoE-powered devices.
This model supports Ethernet interfaces, making it compatible with various networking equipment.
The transformer is manufactured in China.
It is engineered for reliable signal integrity and minimal insertion loss, making it ideal for Ethernet and Power over Ethernet applications.
