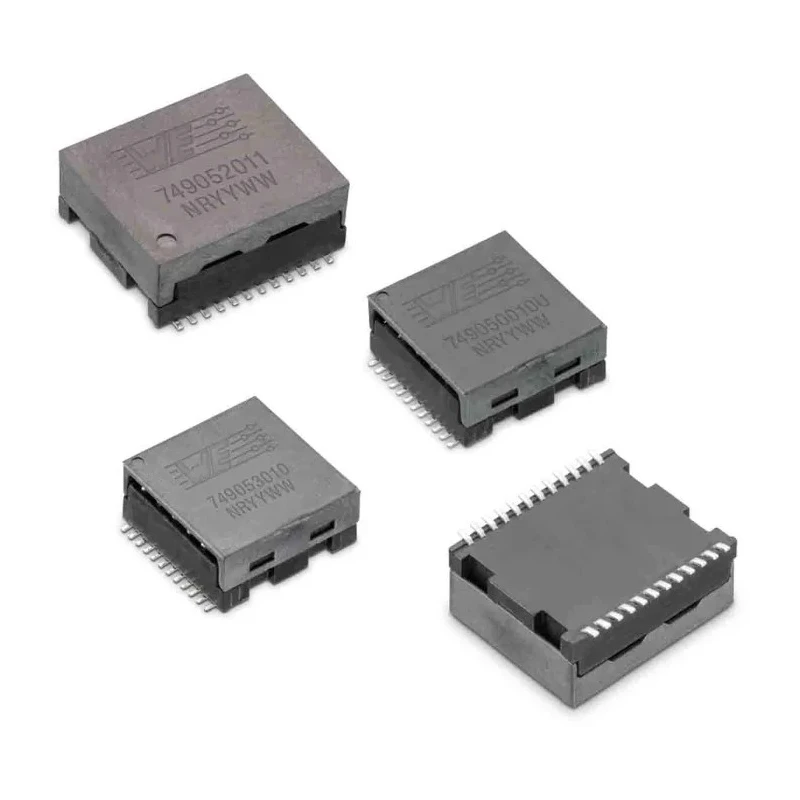

Wurth Elektronik Surface LAN Ethernet Transformer 1 Output, 350μH Inductance, 8.8 mm Depth, -40°C to 85°C 749052051
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Depth | 8.8mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Inductance | 350μH |
| Standards/Approvals | RoHS |
| Insertion Loss | -3.0dB |
| Turns Ratio | 1:1 |
| Turns Ratio1 | 1 |
| Industrial temperatures range | -40°C up to +85°C |
| Compliant with IEEE standards | 802.3af, 802.3at, 802.3an and 802.3bt |
Key Features
- The transformer is designed for surface mount technology applications.
- It features an insertion loss of -3.0 dB for efficient signal processing.
- Complies with RoHS standards ensuring environmental safety.
- Suitable for industrial temperature ranges from -40°C to +85°C.
- Supports Power over Ethernet (PoE) over 4 pairs up to 150 W power.
- Made with ferrite core material and Cu-Ni-Sn contact plating for enhanced durability.
- Conforms with IEEE standards 802.3af, 802.3at, 802.3an, and 802.3bt for Ethernet applications.
- Ideal for use in office and factory network access points, gateways, servers, high-speed routers, switches, and HDBaseT systems.
Product Description
Wurth Elektronik 749052051 is a Surface LAN Ethernet Transformer designed to support 10 Gbit Base-T connections. This transformer features a single output channel with an inductance of 350μH and a compact depth of 8.8 mm suitable for surface mount technology (SMT).
Operating reliably within an industrial temperature range from -40°C to +85°C, it ensures stable performance in harsh environmental conditions. The device includes ferrite as the base core material and utilizes Cu-Ni-Sn plating on contacts to assure long-lasting corrosion resistance.
The transformer complies with Restriction of Hazardous Substances (RoHS) standards and meets multiple IEEE Ethernet standards, including 802.3af, 802.3at, 802.3an, and 802.3bt, enabling support for Power over Ethernet (PoE) functionalities with up to 150 W over four pairs.
This transformer is widely used in industrial and commercial networking environments such as office and factory access points, gateway interfaces, servers, high-speed routers, switches, and HDBaseT applications which require robust signal integrity and interference mitigation.
Single output with 350μH inductance ensures effective impedance matching. Low insertion loss of -3.0 dB enhances signal fidelity and data transmission quality. RoHS compliance affirms environmentally safe manufacturing standards.
Designed for surface mount mounting techniques to suit modern PCB assemblies. Industrial temperature tolerance secures operation in extreme environments. Contact plating materials provide corrosion resistance and durability.
IEEE compliance ensures compatibility with leading network protocols. Supports high power PoE applications up to 150 W across four cable pairs.
Choose Wurth Elektronik LAN Ethernet Transformers for reliable and compliant network infrastructure solutions. Browse our extensive catalog to find additional networking and power supply components suited to industrial and commercial electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The transformer has an inductance value of 350μH, which ensures effective impedance matching for signal integrity.
It features a low insertion loss of -3.0 dB, enhancing signal fidelity and data transmission quality.
This transformer operates reliably within an industrial temperature range from -40°C to +85°C, making it suitable for harsh environments.
Yes, it complies with RoHS standards and meets multiple IEEE Ethernet standards including 802.3af, 802.3at, 802.3an, and 802.3bt.
It is designed for surface mount technology (SMT), making it suitable for modern PCB assemblies.
This model has a single output channel for effective signal processing.
The transformer features a ferrite core material and Cu-Ni-Sn contact plating, which provides corrosion resistance and durability.
It is widely used in industrial and commercial networking environments such as access points, gateways, servers, high-speed routers, switches, and HDBaseT systems.
The transformer has a compact depth of 8.8 mm, suitable for space-constrained applications.
It supports Power over Ethernet (PoE) over four pairs with a maximum power of 150 W.
The turns ratio of this transformer is 1:1, which is typical for Ethernet transformers.
The country of origin for this transformer is China.
