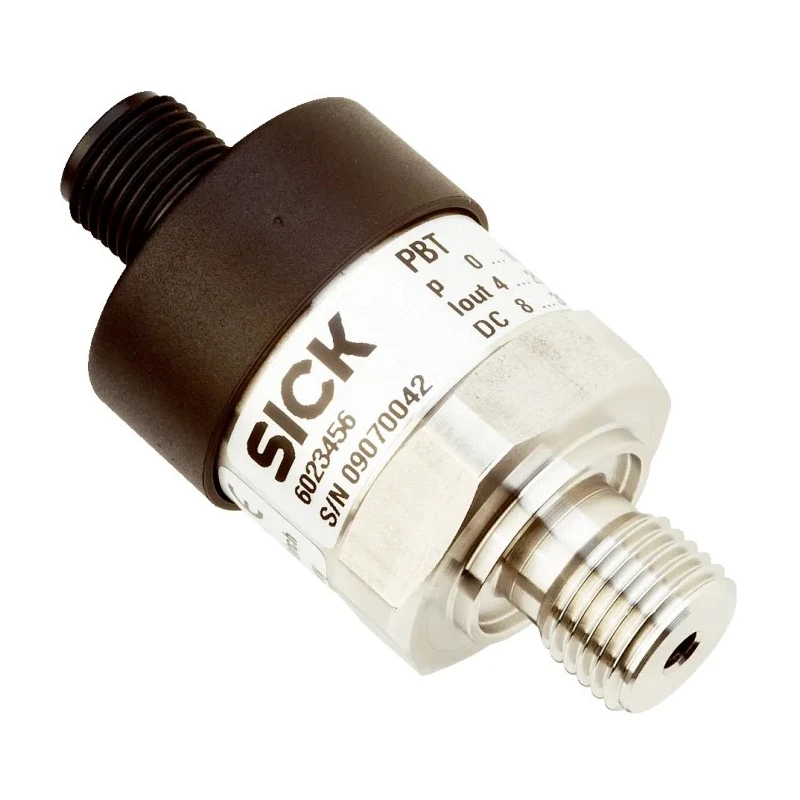

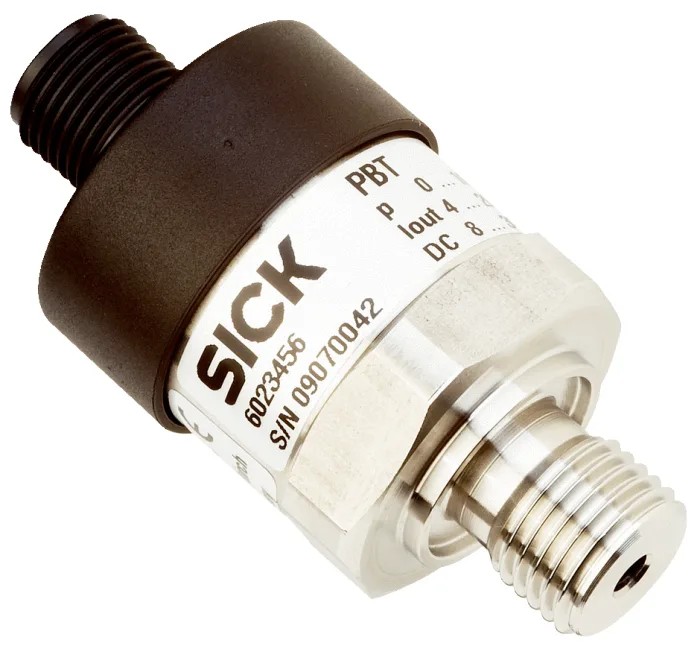

SICK PBT Series Pressure Sensor Current Output 0 bar to 600 bar Relative Reading PBT-RB600SG1SSNAMA0Z

SICK PBT-RB600SG1SSNAMA0Z is a high-precision pressure sensor designed for industrial and automation applications requiring reliable relative pressure measurement with current output. It supports a pressure range from 0 to 600 bar, making it ideal for demanding hydraulic, pneumatic, and process control environments.

The sensor features a rugged stainless steel and plastic housing combined with a circularly welded and hermetically sealed stainless steel membrane, ensuring resistance to wear and fatigue over extended operation periods. Its IP67 rating provides excellent protection against dust and water, enhancing reliability in harsh industrial conditions.

Output signals include standard 4 mA to 20 mA current output, facilitating easy integration with control systems. The device connects via an M12 x 1 angled plug and utilizes screw terminals, providing secure and straightforward wiring options.

With an accuracy of ±1%, fast 4 ms response time, and compliance with Pressure Equipment Directive 2014/68/EU and EMC directive 2014/30/EU, this sensor assures precise and safe pressure monitoring. Its suitability for various media such as air, gas, hydraulic fluids, liquids, oils, and water, broadens its application scope.

Features current output signal for accurate pressure measurement. Measures pressures ranging from 0 bar minimum to 600 bar maximum. Constructed with stainless steel and plastic housing for durability. Ensures high accuracy of ±1% for reliable monitoring.

Designed with IP67 rating for protection against dust and water ingress. Suitable for various media including air, gas, hydraulic fluid, liquid, oil, and water. Threaded mount type allowing secure installation in industrial settings.

Operates efficiently between 0°C and 80°C temperature range. Responds rapidly with a response time of 4 milliseconds. Certified to Pressure Equipment Directive and EMC directive standards.

Applications include pressure measurement in hydraulic cylinders, monitoring of pressure, flow, temperature, and energy flows, pressing pressure monitoring, pressure control in hydraulic systems, cooling water pressure and temperature monitoring, and industrial process controls in metallurgy and casting.

This sensor is engineered for industrial, automation, manufacturing, hydraulic, pneumatic systems, and laboratory instrumentation requiring dependable and precise pressure sensing solutions.
