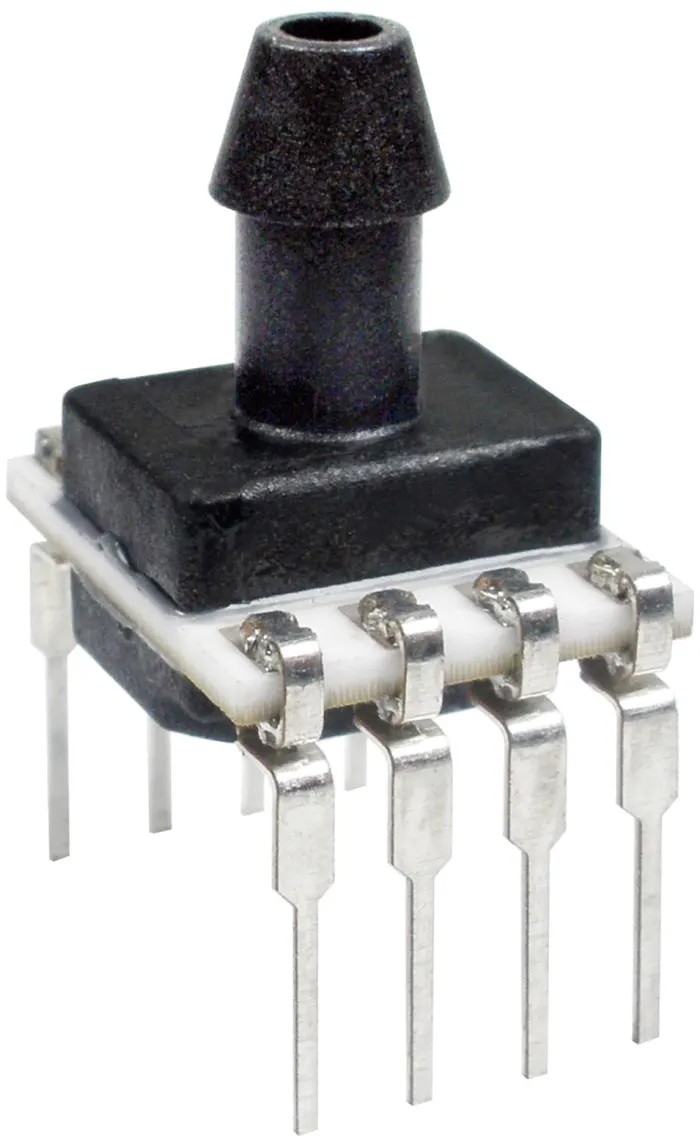

Honeywell Technologies Gauge Pressure Sensor Through Hole DIP Package 8 Pin 3.3V-5V ±0.25% Accuracy SSCDANN010BGAA3
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 10 bar |
| Height | 13.75mm |
| Length | 10mm |
| Model | SSCDANN010BGAA3 |
| Sensor Type | Gauge Pressure Sensor |
| Mount Type | Through Hole |
| Series | SSC |
| Maximum Operating Temperature | 85°C |
| Port Type | Single Axial Barbed |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 8 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3.3V |
| Minimum Operating Pressure | 0bar |
| Maximum Overload Pressure | 17bar |
Key Features
- The sensor supports a maximum operating pressure of 10 bar with a maximum overload pressure of 17 bar.
- It is designed with a single axial barbed port for precise gauge pressure measurement.
- The operating temperature range spans from -40°C to 85°C to support varied industrial environments.
- The compact size includes a length of 10mm and height of 13.75mm, ideal for PCB mounting applications.
- Its series SSC architecture ensures high long-term stability and ratiometric analog output suitable for accurate data acquisition.
- It is RoHS compliant and suitable for use in industrial, laboratory, automotive, and HVAC pressure sensing needs.
- The sensor’s piezoresistive silicon ceramic technology enables reliable gauge pressure sensing in liquid media applications.
Product Description
Honeywell SSCDANN010BGAA3 is a high-precision gauge pressure sensor designed for industrial and laboratory use where accurate pressure measurement is critical. Featuring a robust through-hole DIP package with 8 pins, this sensor operates within a 3.3V to 5V supply voltage range and delivers an accuracy of ±0.25%, making it suitable for demanding applications.
The sensor supports a maximum operating pressure of 10 bar, withstanding overloads up to 17 bar, ensuring safety and reliability. It utilizes a single axial barbed port for pressure input, enabling easy integration with fluid systems requiring gauge pressure detection.
Its temperature tolerance from -40°C to 85°C allows function in harsh environments, including automotive systems, HVAC controls, and process instrumentation. The compact 10mm length and 13.75mm height DIP package facilitate straightforward mounting on printed circuit boards.
Constructed using Honeywell’s TruStability standard accuracy silicon ceramic technology, the device ensures outstanding long-term stability and a ratiometric analog output signal. This sensor is RoHS compliant and designed for compatibility with liquid media, broadening its industrial applicability.
The sensor’s highly accurate piezoresistive silicon design delivers reliable measurements over extended periods. Its through-hole mounting style supports durable mechanical connections for industrial PCB layouts. The 8-pin DIP package facilitates conventional soldering and prototyping methods.
Capable of measuring from 0 to 10 bar gauge pressure, it suits a variety of pressure sensing applications. The product is optimized for use in industrial automation, automotive diagnostics, HVAC monitoring, and water treatment systems.
Choose Honeywell Technologies SSCDANN010BGAA3 for robust, precision gauge pressure sensing solutions that meet rigorous industrial standards. Explore a wide range of Pressure Sensors and semiconductor components at EnvMart to fulfill your technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 10 bar, with a maximum overload pressure of 17 bar.
This model offers an accuracy of ±0.25%.
The operating temperature range spans from -40°C to 85°C, allowing it to function in various industrial environments.
It is designed with a single axial barbed port for precise gauge pressure measurement.
The sensor has a length of 10mm and a height of 13.75mm, making it suitable for PCB mounting applications.
It operates within a supply voltage range of 3.3V to 5V.
This model uses a through-hole mounting style, which supports durable mechanical connections for PCB layouts.
It is suitable for industrial automation, automotive diagnostics, HVAC monitoring, and water treatment systems.
The sensor delivers a ratiometric analog output signal, suitable for accurate data acquisition.
Yes, the sensor is RoHS compliant, making it suitable for environmentally conscious applications.
It utilizes piezoresistive silicon ceramic technology, which ensures reliable gauge pressure sensing in liquid media applications.
The sensor features an 8-pin DIP package, facilitating conventional soldering and prototyping methods.
