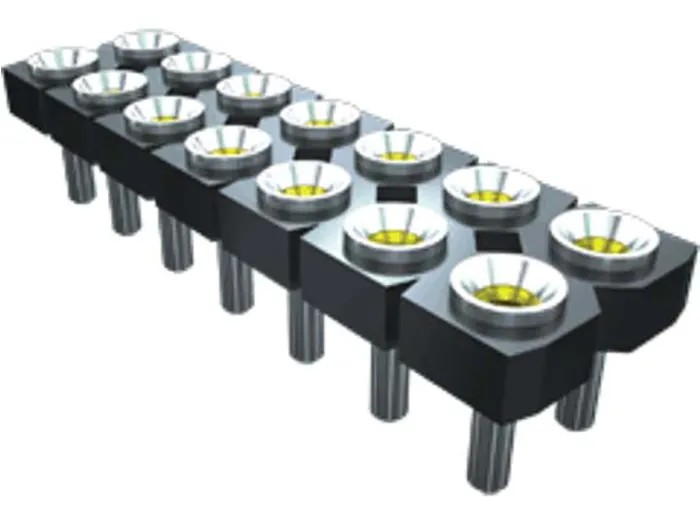

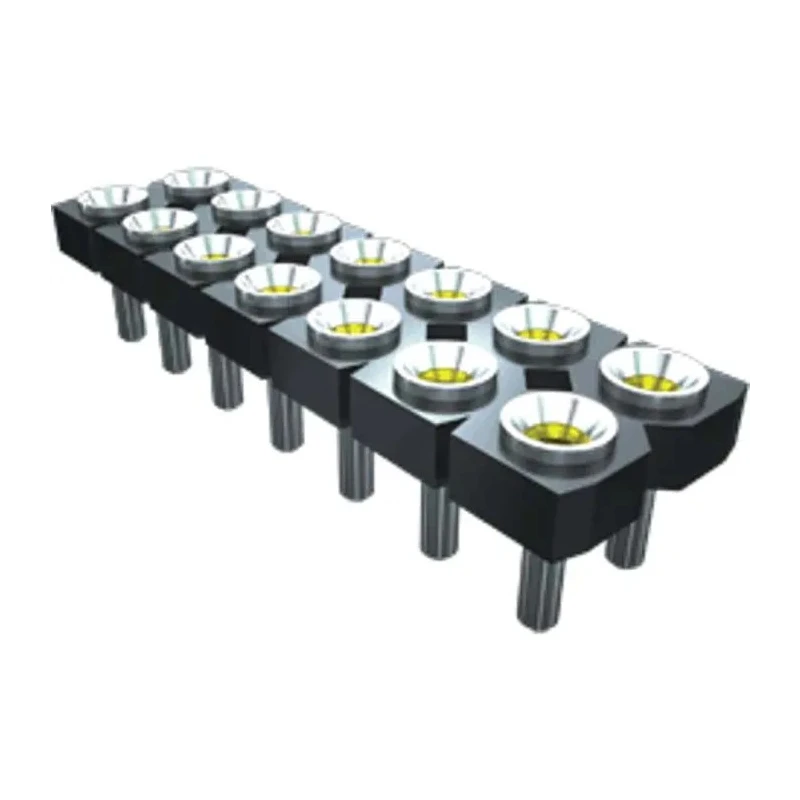

Samtec PCB Socket 20-Contact 2 Row 2.54 mm Pitch Solder Termination SDL-110-G-19
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Model | SDL-110-G-19 |
| Mount Type | Through Hole |
| Housing Material | Black Glass Filled Polyester |
| Contact Material | Beryllium Copper Alloy |
| Series | SDL |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Connector System | Board-to-Board |
| Stacking Height | 3.89mm |
Key Features
- The connector has a straight orientation suitable for through hole mounting.
- It features black glass filled polyester housing for durability.
- Contact material is beryllium copper alloy with gold plating for reliable conductivity.
- Operating temperature ranges from -55°C to 125°C ensuring performance in harsh conditions.
- It is RoHS compliant, meeting environmental standards.
- Stacking height is 3.89 mm, suitable for low profile applications.
- Connector system is board-to-board, enabling secure electrical connections.
- The series designation is SDL, ensuring compatibility within the family.
Product Description
Samtec SDL-110-G-19 PCB Socket is a high-quality 20-contact connector designed for use in electronics and industrial applications. This straight through hole socket features a 2-row configuration with a standardized 2.54 mm pitch, ideal for board-to-board connections. The black glass filled polyester housing enhances mechanical strength and heat resistance, suited for demanding environments.
Contacts are crafted from beryllium copper alloy, providing excellent electrical conductivity and mechanical durability. The gold plating ensures corrosion resistance and reliable signal integrity over time. With an operating temperature range from -55°C to 125°C, this socket is appropriate for use in extreme industrial and commercial conditions.
The device complies with RoHS standards, affirming its environmental safety and quality. The 3.89 mm stacking height allows for compact designs in printed circuit board assemblies. Its solder termination type facilitates secure and permanent mounting to PCB boards.
This Samtec SDL series socket is perfect for applications in industrial control systems, telecommunications, computing, and electronic manufacturing where robust and consistent board connections are required.
The Samtec SDL-110-G-19 features 20 contacts arranged in 2 rows. It has a pitch of 2.54 mm for standardized connection spacing. Black glass filled polyester housing ensures mechanical stability. Beryllium copper alloy contacts with gold plating provide durability and conductivity.
Operating temperature range is -55°C to 125°C for wide environmental tolerance. It's designed for through hole mounting with solder termination type. Stacking height is 3.89 mm for compact PCB integration. Connector system supports board-to-board interfacing.
The product is RoHS compliant meeting environmental regulations. EnvMart offers a wide range of electronic components and PCB connectors for industrial, telecommunications, and manufacturing applications.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB socket is 2.54 mm, which is standardized for connector spacing.
The maximum operating temperature for the SDL-110-G-19 is 125°C, allowing it to perform in high-temperature environments.
This model features 20 contacts arranged in 2 rows, facilitating board-to-board connections.
The contacts are made from beryllium copper alloy and are gold plated for enhanced conductivity and corrosion resistance.
The SDL-110-G-19 uses a solder termination type, which allows for secure and permanent mounting to PCB boards.
The stacking height of the SDL-110-G-19 is 3.89 mm, making it suitable for low profile applications.
Yes, this model is RoHS compliant, meeting environmental standards for safety and quality.
The housing material is black glass filled polyester, which provides mechanical strength and heat resistance.
This socket has a straight orientation, suitable for through hole mounting.
This model supports a board-to-board connector system, enabling secure electrical connections between circuit boards.
The minimum operating temperature for the SDL-110-G-19 is -55°C, allowing it to function in extreme cold conditions.
The Samtec SDL-110-G-19 is manufactured in India.
