SICK Vibrating Level Switch Horizontal Threaded Vertical 2G Ex ia IIC T6 LBV310

Free Delivery in India | Lowest Global Shipping Charges

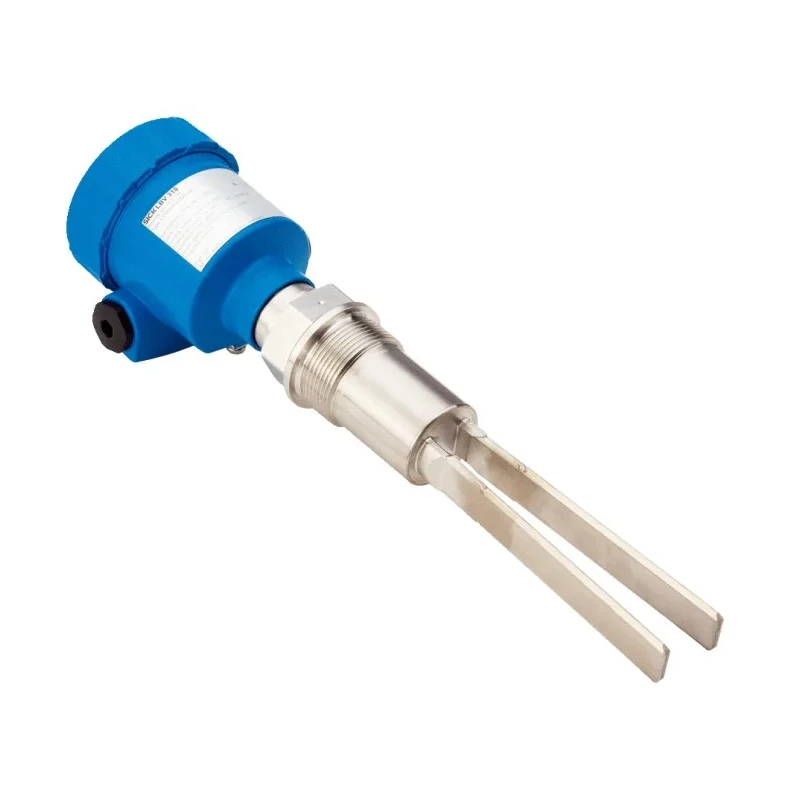

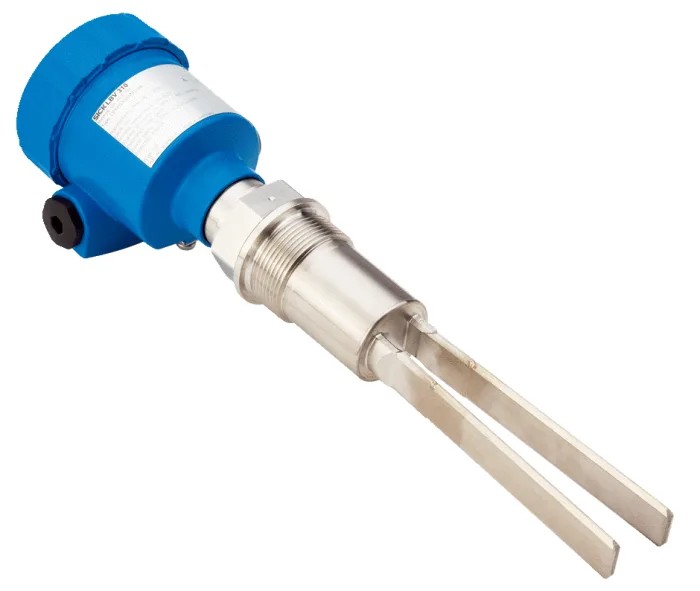

SICK Vibrating Level Switch Horizontal Threaded Vertical 2G Ex ia IIC T6 LBV310

Name: SICK Vibrating Level Switch Horizontal Threaded Vertical 2G Ex ia IIC T6 LBV310
Brand: SICK
SKU: 169014
Price: 1168.97 USD
Availability: InStock



Category Level Sensors Brand SICK Condition New

Specifications

Country of Origin	Germany
Brand	SICK
Model	LBV310
Cable Length	1.5mm
Mount Type	Horizontal, Threaded, Vertical
Housing Material	Aluminium, Stainless Steel
Series	LBV310
Maximum Operating Temperature	150°C
Maximum Pressure	25bar
Minimum Operating Temperature	-50°C
Maximum Current	3A
Device Type	Vibrating Level Switch
Maximum dc Voltage	72V dc
Hazardous Area Certification	2G Ex ia IIC T6, ATEX
Standards/Approvals	CE Certified
Maximum AC Voltage	253V ac

Key Features

The device features robust aluminium and stainless steel housing for durability.
Operates efficiently between -50°C to 150°C temperature ranges.
Supports maximum DC voltage of 72V and AC voltage of 253V with a 3A maximum current.
Certified with CE and ATEX hazardous area approval 2G Ex ia IIC T6 for explosive atmospheres.
Offers maintenance-free operation and high repeatability for reliable level monitoring.
Equipped with a 1.5 mm cable length suitable for industrial installations.
The switch withstands pressures up to 25 bar, suitable for a variety of containers and silos.
Facilitates easy installation and commissioning without the need for calibration.

Product Description

SICK LBV310 Vibrating Level Switch is a highly reliable device engineered for industrial level measurement applications. It supports horizontal, threaded, and vertical mountings, making it versatile for various installation scenarios in bulk material containers, silos, and tanks. The device is constructed with aluminium and stainless steel housing, ensuring robust protection in harsh environments.

Operating over a wide temperature range from -50°C to 150°C, the LBV310 is adapted to withstand demanding process conditions. It can handle a maximum DC voltage of 72V and AC voltage up to 253V with a current rating of 3A, making it compatible with numerous automation systems. The device pressure tolerance up to 25 bar allows it to be used in pressurized containers safely.

The LBV310 series is CE certified and holds hazardous area certifications including 2G Ex ia IIC T6 and ATEX approvals, suitable for explosive atmospheres ensuring safe operation. Its maintenance-free design reduces downtime and operational costs. Easy installation and commissioning without the need for calibration save time for end users.

Common industrial applications include level monitoring in dust hoppers, silos for aggregates, coal, cement, biomass bunkers, and ash hopper level monitoring in coal-fired power plants. The vibrating tuning fork sensing principle offers high reliability and sensitivity to changes in material density, regardless of silo shape or material.

The device's robust construction and certification allow use in explosive and hazardous environments. Simple integration into automation systems is enabled by multiple mounting and electrical connection options. Testing in place and maintenance without unmounting the sensor are supported, reducing installation and downtime costs.

This switch provides level management solutions for overfill protection and demand signaling in industrial storage tanks.

Set contains the LBV310 vibrating level switch suitable for industrial level control applications. Explore more sensors and automation control gear at EnvMart for comprehensive industrial solutions.
