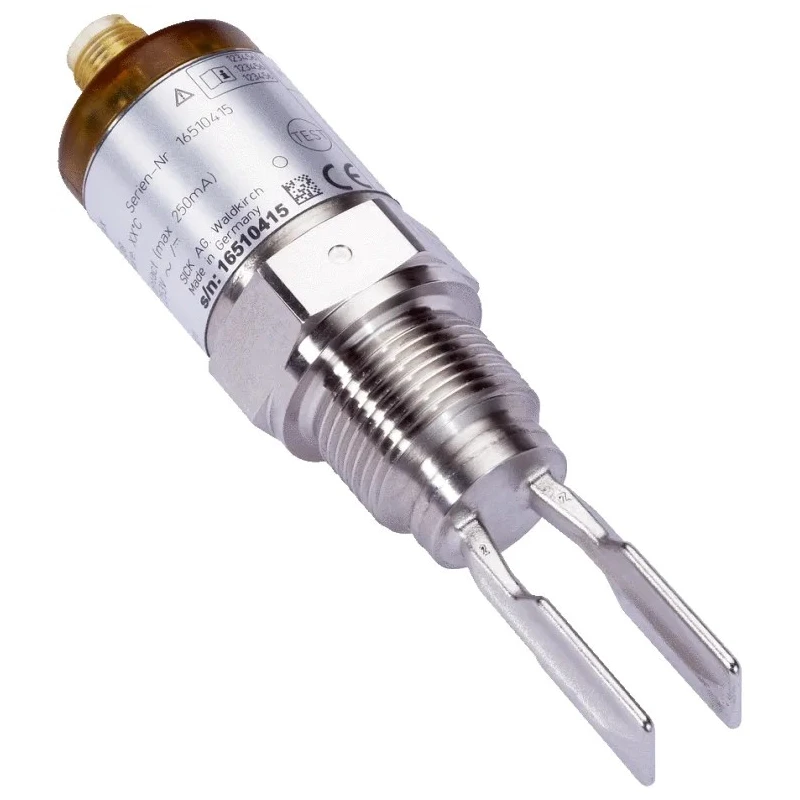

SICK Vibrating Level Switch Horizontal Threaded Vertical Housing Polyetherimide Stainless Steel LFV200

SICK LFV200 Vibrating Level Switch Horizontal Threaded Vertical is engineered to deliver precise point level measurement in liquid systems under demanding industrial conditions. It is suitable for applications requiring overfill protection or dry run prevention in pipes and containers.

The sensor housing is made of durable polyetherimide and stainless steel (316L) offering chemical resistance and compliance with hygienic standards including CIP and SIP capabilities. It operates reliably between -40°C and 100°C and withstands maximum pressures of 64 bar, making it ideal for rigorous process environments.

This device features an M12 electrical interface with a maximum DC voltage rating of 35V and a maximum current of 250mA. It has a rugged tuning fork sensor that provides exceptional repeatability and immunity to fouling or deposit formation even in challenging media.

Installation is flexible with support for horizontal, threaded, and vertical mounting types. Extended pipe lengths up to 1200 mm further enhance versatility. Commissioning is simplified as no container filling or medium calibration is necessary, resulting in easy integration and maintenance-free operation.

The LFV200 sensor supports IO-Link technology enabling readouts of oscillation frequency, amplitude, and sensor temperature for enhanced diagnostics and predictive maintenance. It is widely used in industrial automation, manufacturing, water treatment, and chemical processes for accurate and reliable liquid level control.

Operates reliably within -40°C to 100°C temperature range. Constructed with polyetherimide and stainless steel housing for enhanced durability. Supports a maximum pressure of 64 bar ensuring industrial robustness. Features M12 interface type with max DC voltage of 35V and current up to 250mA.

Suitable for horizontal, threaded, and vertical mount applications in diverse liquids. Maintenance-free operation with commissioning possible without container filling or medium calibration. High repeatability and resistant to deposit formation for reliable use.

Offers extended pipe variants up to 1200 mm for flexible installation. Equipped with WHG approval and designed for hygienic applications including CIP and SIP.

Explore the SICK brand at EnvMart for professional sensors engineered to meet industrial automation and control requirements. This series builds on proven vibrating level switch technology, providing accuracy and durability in complex liquid measurement applications.
