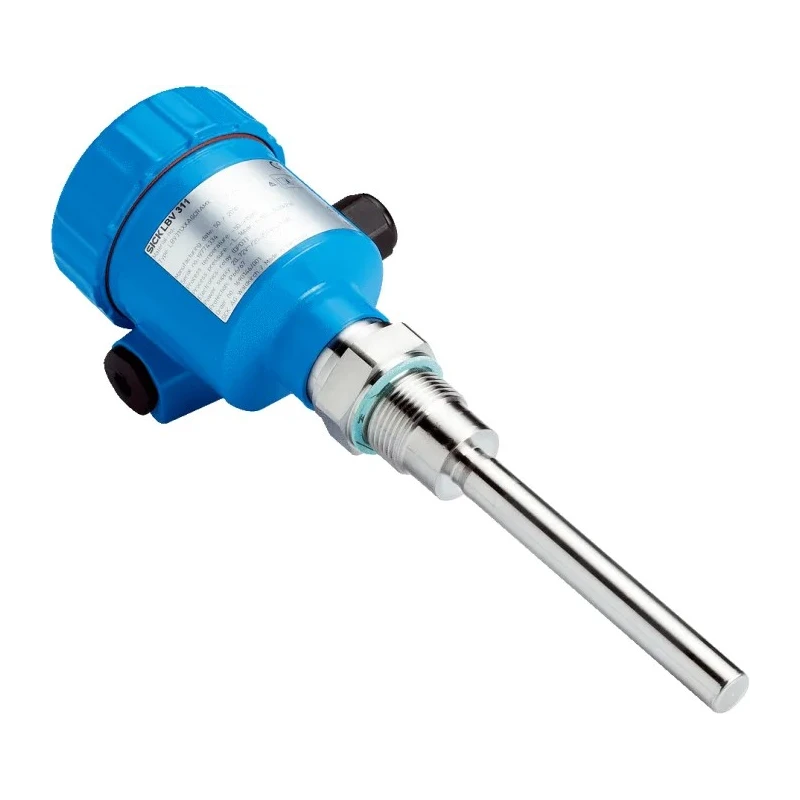

SICK LBV311 Vibrating Level Switch Horizontal Threaded Vertical Ex ATEX-Rated Stainless Steel Plastic Housing LBV311
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Model | LBV311 |
| Cable Length | 1.5mm |
| Mount Type | Horizontal, Threaded, Vertical |
| Housing Material | Stainless Steel, Plastic |
| Series | LBV311 |
| Maximum Operating Temperature | 150°C |
| Maximum Pressure | 25bar |
| Minimum Operating Temperature | -50°C |
| Maximum Current | 300mA |
| Device Type | Vibrating Level Switch |
| Maximum dc Voltage | 55V dc |
| Hazardous Area Certification | Ex, ATEX |
| Standards/Approvals | CE Certified |
| Maximum AC Voltage | 253V ac |
Key Features
- The vibrating monoprobe design prevents bulk materials from sticking or jamming.
- It features stainless steel and plastic housing suitable for food and industrial applications.
- Commissioning is easy with no upstream filling or medium calibration required.
- Operating temperature range spans from -50°C to 150°C with pressure tolerance up to 25 bar.
- Certified for explosion protection with Ex and ATEX approvals.
- Flexible installation options including horizontal and vertical mounting configurations.
- Maintenance-free and capable of sensor testing while installed.
- Suitable for monitoring bulk materials like pellets, wood chips, milk powder, and coal in industrial silos.
Product Description
SICK LBV311 Vibrating Level Switch is a robust compact sensor designed for precise level detection in various bulk materials used in industrial and food applications. The sensor employs a vibrating monoprobe principle to reliably detect changing vibration amplitudes caused by material coverage, preventing jamming and material build-up.
The LBV311 variant is intended for horizontal mounting while its series counterparts LBV321 and LBV331 provide cable and tube extension models for vertical mounting up to 80 m and 6 m respectively. Its stainless steel and plastic housing ensures suitability for hygienic environments, including food processing.
Operating temperature ranges from -50°C to 150°C and it withstands pressures up to 25 bar. The sensor supports voltage ratings up to 253 V AC and 55 V DC with a maximum current of 300 mA. It is CE certified and carries Ex and ATEX certifications for hazardous areas.
This vibrating level switch is maintenance-free, allowing sensor testing while installed, and requires no process medium calibration during commissioning. Its compact size and flexible mounting options facilitate installation in silos, hoppers, and tanks for level measurement of pellets, powder, wood chips, coal, and other bulk materials.
The vibrating monoprobe design prevents bulk materials from sticking or jamming. Commissioning without filling and medium calibration simplifies setup. Maintenance-free system reduces downtime and operational costs. Suitable for both food industry and industrial bulk material applications.
Robust stainless steel and plastic housing for harsh environments. Supports vertical and horizontal mounting configurations. Accurate level measurement and clogging detection in silos and hoppers. Certified for hazardous areas with Ex and ATEX approvals.
Flexible and reliable for applications in wood, food, coal, and chemical industries.
Choose the SICK LBV311 series for reliable, durable level sensing in industrial, laboratory, manufacturing, chemical, and food processing applications. Browse more Level Sensors and industrial automation products at EnvMart to meet your measurement needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LBV311 operates within a temperature range of -50°C to 150°C.
It can withstand a maximum pressure of 25 bar.
The housing is made from stainless steel and plastic, suitable for both food and industrial applications.
This model supports flexible installation options, including horizontal and vertical mounting configurations.
It is certified for explosion protection with Ex and ATEX approvals, making it suitable for hazardous areas.
This unit supports voltage ratings of up to 253 V AC and 55 V DC, with a maximum current of 300 mA.
No, it requires no upstream filling or medium calibration during commissioning, simplifying the setup process.
It is suitable for monitoring bulk materials such as pellets, wood chips, milk powder, and coal in industrial silos.
The cable length for this model is 1.5 mm.
The sensor employs a vibrating monoprobe design that prevents bulk materials from sticking or jamming, ensuring reliable detection.
Yes, it is maintenance-free and allows for sensor testing while installed, reducing downtime.
The LBV311 is manufactured in Germany.
