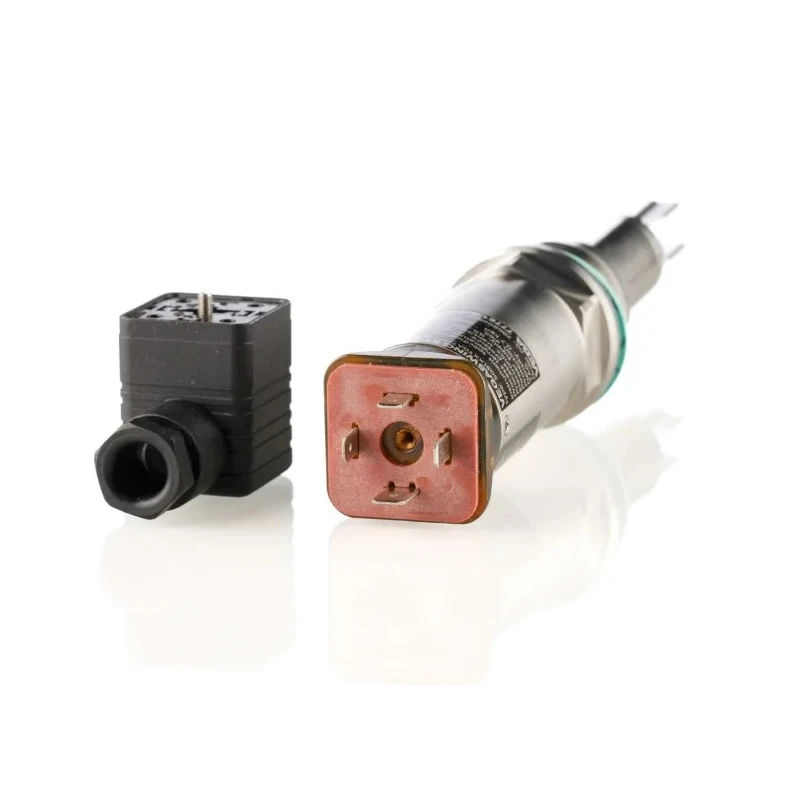

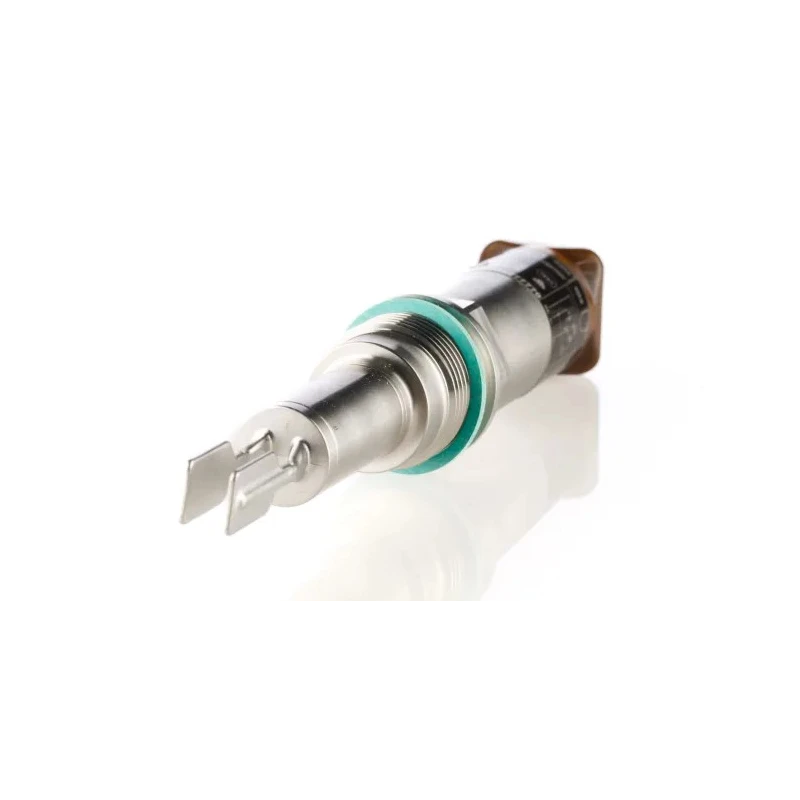

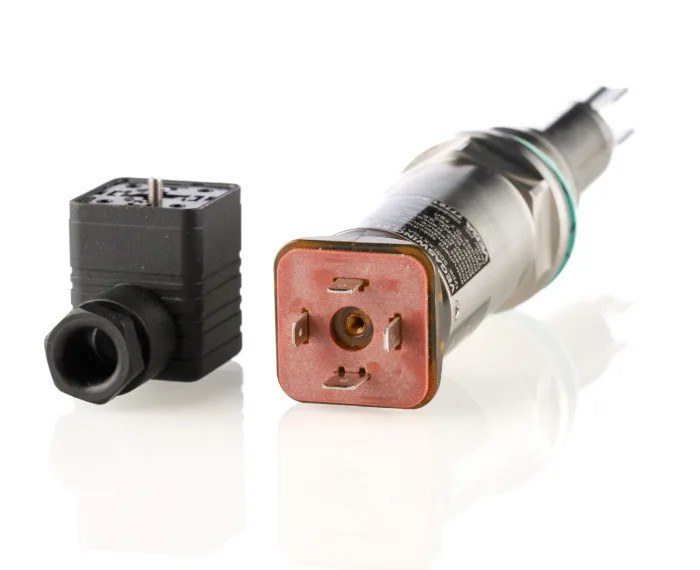

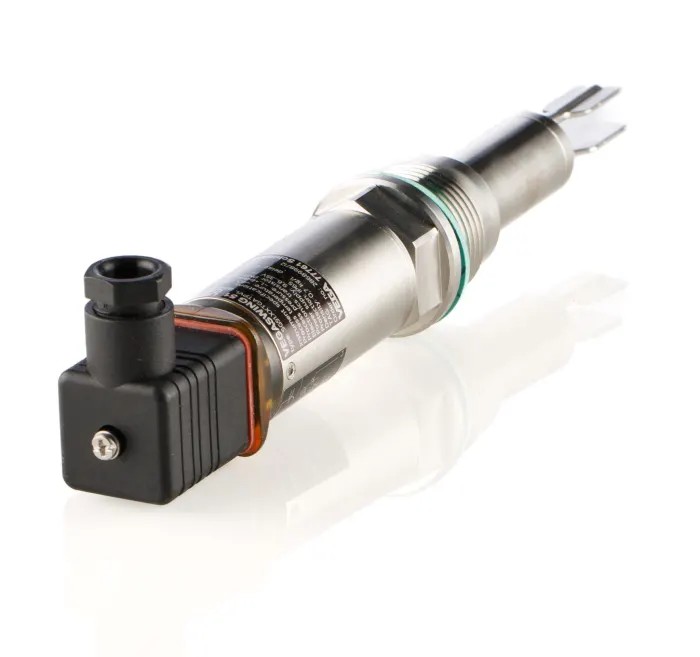

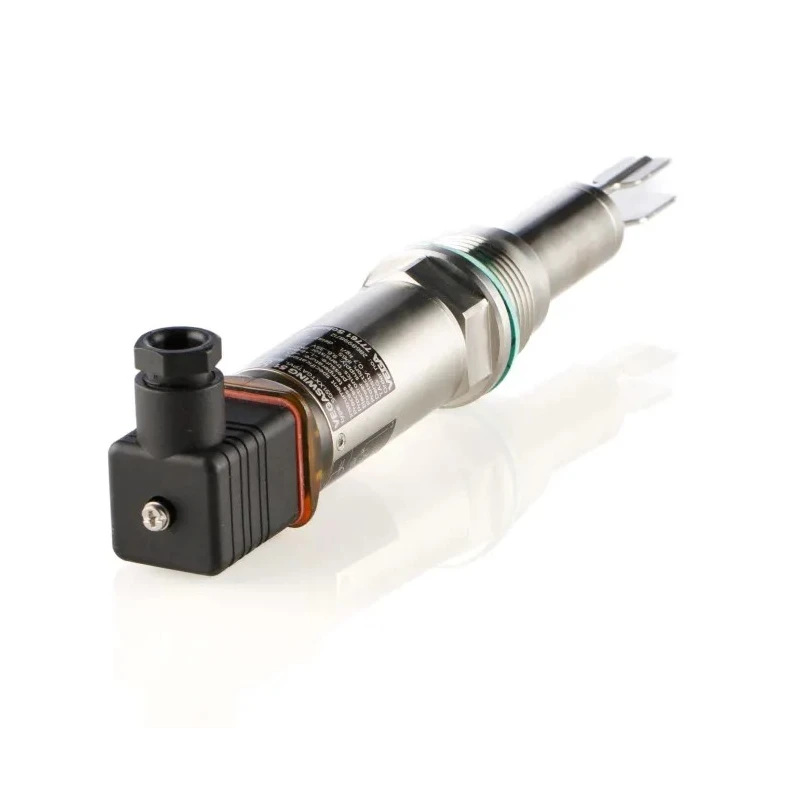

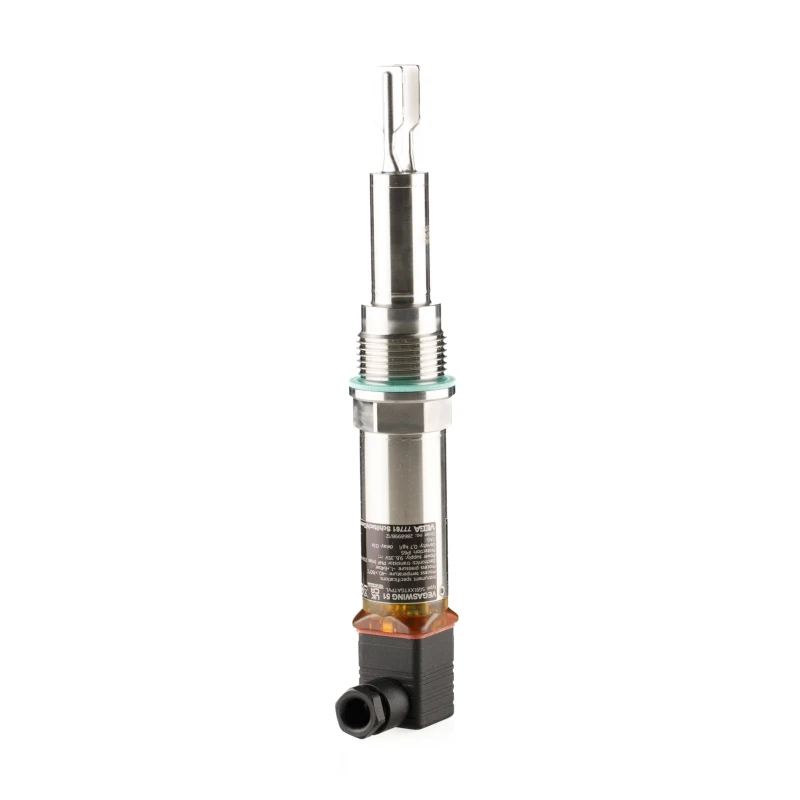

Vega VEGASWING 51 Series Tuning Fork Level Probe Horizontal Klingersil C-4400 Gasket Stainless Steel Housing SG51.XXTGATPVL

Vega SG51.XXTGATPVL tuning fork level probe is a highly reliable industrial sensor designed for precise point level detection of liquids in horizontal installations. Featuring a robust stainless steel housing combined with a Klingersil C-4400 gasket, it withstands operating temperatures from -40°C up to 150°C and pressures as high as 64 bar. The device employs transistor PNP electronics powered between 9.6VDC and 35VDC, with an IO-Link interface for seamless integration.

Its product-independent switching point ensures consistent performance unaffected by variances in product density, conductivity, dielectric constant, or viscosity up to 10,000 mPa. The probe is constructed for maintenance-free use with an external LED providing status indication. Process fittings include G¾ A, G1 A thread options and hygienic Tri-Clamp fittings, made from high-grade 316L stainless steel per DIN3852-A standards.

This level switch is suitable for a broad range of industrial applications including overfill protection, empty or full level detection, dry running protection, pump protection, and bilge or leakage monitoring. It is CE certified and WHG compliant, ensuring adherence to safety and quality standards in industrial environments.

The device is commonly used in chemical processing, water treatment, manufacturing, and automation fields requiring accurate and reliable level monitoring. Its compact design and resistance to harsh chemicals and extreme operating conditions make it a preferred choice for industrial process control.

The probe includes a Klingersil C-4400 gasket ensuring robust sealing under pressure. It operates within a wide temperature range from -40°C to 150°C. Max operating pressure is rated up to 64 bar. Equipped with IO-Link interface and transistor PNP electronics supporting 9.6VDC to 35VDC.

Stainless steel housing and switch point provide excellent chemical resistance for industrial applications. Suitable for overfill protection, empty/full detection, dry running and pump safeguarding in vessels and pipelines.

The process fitting is G1 thread PN64 made from DIN3852-A/316L stainless steel. The device is CE and WHG certified and tested for reliability in harsh industrial environments. It is designed for maintenance-free operation with a visible external LED switch status indicator.
