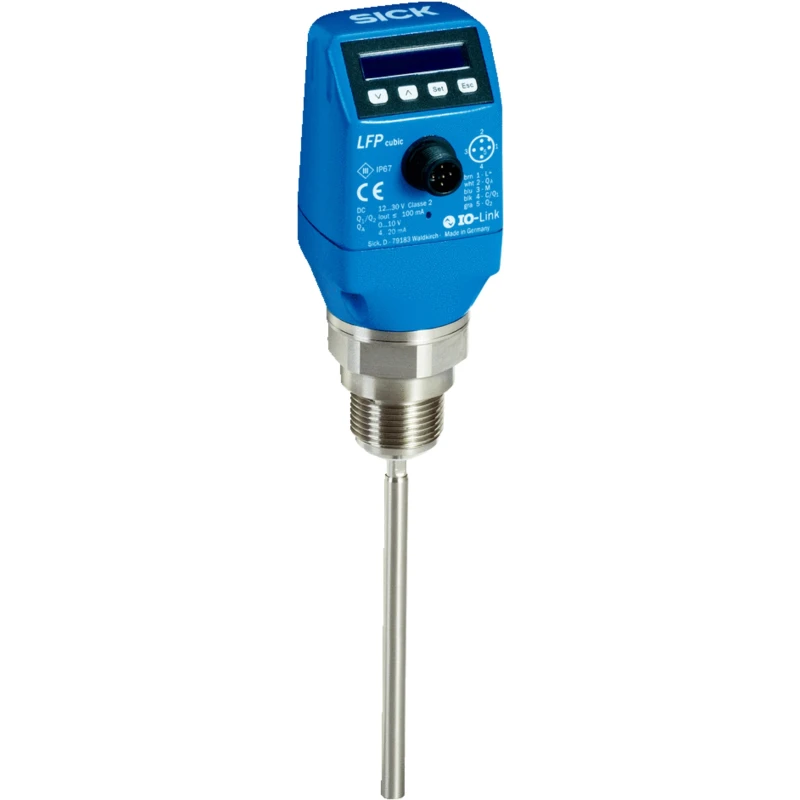

SICK Guided Radar Level Radar Threaded Vertical Housing Plastic Polybutylene Terephthalate IO-Link Interface LFP0300-A4NMB

Free Delivery in India | Lowest Global Shipping Charges

SICK Guided Radar Level Radar Threaded Vertical Housing Plastic Polybutylene Terephthalate IO-Link Interface LFP0300-A4NMB

Name: SICK Guided Radar Level Radar Threaded Vertical Housing Plastic Polybutylene Terephthalate IO-Link Interface LFP0300-A4NMB
Brand: SICK
SKU: 109845
Price: 790.47 USD
Availability: InStock



Category Level Sensors Brand SICK Condition New

Specifications

Country of Origin	Germany
Display	3 in 1: combines display
Brand	SICK
Model	LFP0300-A4NMB
Cable Length	300mm
Mount Type	Threaded, Vertical
Housing Material	Plastic Polybutylene Terephthalate
Series	LFP Cubic
Maximum Operating Temperature	100°C
Maximum Pressure	10bar
Minimum Operating Temperature	-20°C
Maximum Current	100mA
Device Type	Guided Radar
Interface Type	IO-Link
Maximum dc Voltage	30V dc
Standards/Approvals	CE Certified, UL Listed
Gasket Material	Polytetrafluoroethylene
3 in 1	combines display, analog output (according to NAMUR NE 43), and binary output
Cost savings due to multiple output signals	One system for both point level and continuous level measurement

Key Features

Employs Guided Wave Radar (TDR) technology for accurate liquid level sensing.
Features a modular, interchangeable rod probe adjustable between 200 mm and 2,000 mm length.
Resistant to build-up deposits and operates at process temperatures up to 100 °C.
Supports IO-Link 1.1 interface for flexible communication and integration.
Provides multiple output signals including analog output and binary switching output.
High protection rating of IP67 with rotatable housing and remote amplifier options.
Utilizes polytetrafluoroethylene gasket material for chemical resistance.
Can measure level in challenging industrial environments, including deposit-forming and foaming liquids.

Product Description

SICK LFP0300-A4NMB Guided Radar Level Radar is a precision sensor designed for liquid level measurement in demanding industrial environments. Featuring a threaded vertical mount and robust plastic housing made of Polybutylene Terephthalate, this device offers excellent durability and chemical resistance. Operating with Guided Wave Radar (TDR) technology, it measures time of flight of electromagnetic pulses to provide accurate continuous level readings and switching outputs.

The sensor includes an interchangeable rod probe, which can be cut between 200 mm and 2,000 mm, or an optional cable probe up to 4,000 mm, providing high application flexibility. It withstands process pressures up to 10 bar and process temperatures from -20 °C to 100 °C, making it suitable for various liquids, including those prone to deposits and foaming.

Outfitted with a polytetrafluoroethylene gasket, the sensor ensures reliable sealing and chemical resistance. The high IP67 enclosure rating, rotatable housing, and remote amplifier make installation adaptable for diverse setups. Its IO-Link 1.1 interface enables advanced communication capabilities for industrial automation systems.

Applications include monitoring coolants and lubricants in machine tooling, cleaning and washing machine processes, tank filling in automotive assembly, and hydraulic system fluid measurements. The sensor’s rugged design minimizes maintenance, eliminating the need for calibration and reducing downtime.

The LFP0300-A4NMB is manufactured in Germany, adhering to CE and UL certifications, ensuring high quality and safety standards. Its compact design combined with multifunctional output signals delivers cost-effective level measurement for chemical processing, manufacturing, water treatment, and other industrial sectors.

Employs Guided Wave Radar (TDR) technology for reliable liquid level detection. Interchangeable rod probe adjustable from 200 mm to 2,000 mm or cable probe up to 4,000 mm. Operates at process temperatures ranging from -20 °C to 100 °C and pressures up to 10 bar.

Equipped with polytetrafluoroethylene gasket for enhanced chemical resistance. High IP67 rating with rotatable housing and remote amplifier for flexible installation. Supports IO-Link 1.1 interface for seamless integration into automation systems.

Provides combined display, analog output, and binary output for versatile monitoring. Low-maintenance design suitable for harsh industrial and hydraulic applications. Certified CE marked and UL listed, with German country of origin.

Discover the SICK LFP Cubic series and other advanced Level Sensors to optimize your industrial level measurement needs at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

It employs Guided Wave Radar (TDR) technology to accurately measure liquid levels by detecting the time of flight of electromagnetic pulses.

The interchangeable rod probe can be adjusted between 200 mm and 2,000 mm in length.

It operates within a temperature range of -20 °C to 100 °C.

The sensor can withstand process pressures up to 10 bar.

It supports the IO-Link 1.1 interface for flexible communication and integration into automation systems.

The housing is made of plastic polybutylene terephthalate, and it utilizes a polytetrafluoroethylene gasket for chemical resistance.

It provides a combined display, analog output (according to NAMUR NE 43), and binary output for versatile monitoring.

It has a high protection rating of IP67, making it suitable for harsh environments.

This sensor is manufactured in Germany.

It is suitable for monitoring coolants and lubricants in machine tooling, tank filling in automotive assembly, and hydraulic system fluid measurements.

Its rugged design eliminates the need for calibration, reducing downtime and maintenance requirements in industrial settings.

The sensor is CE certified and UL listed, ensuring compliance with safety standards.
