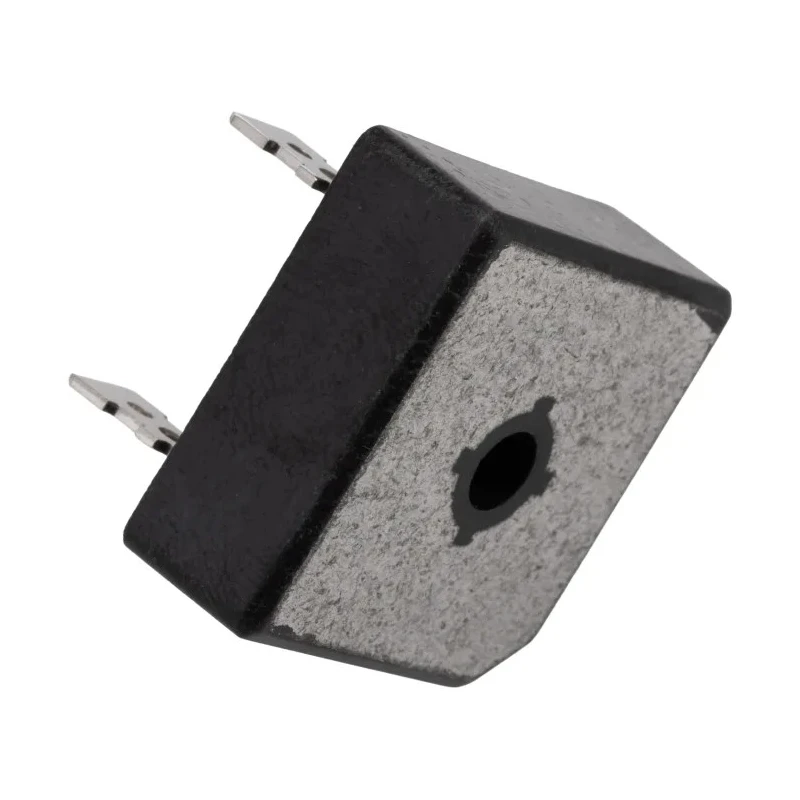

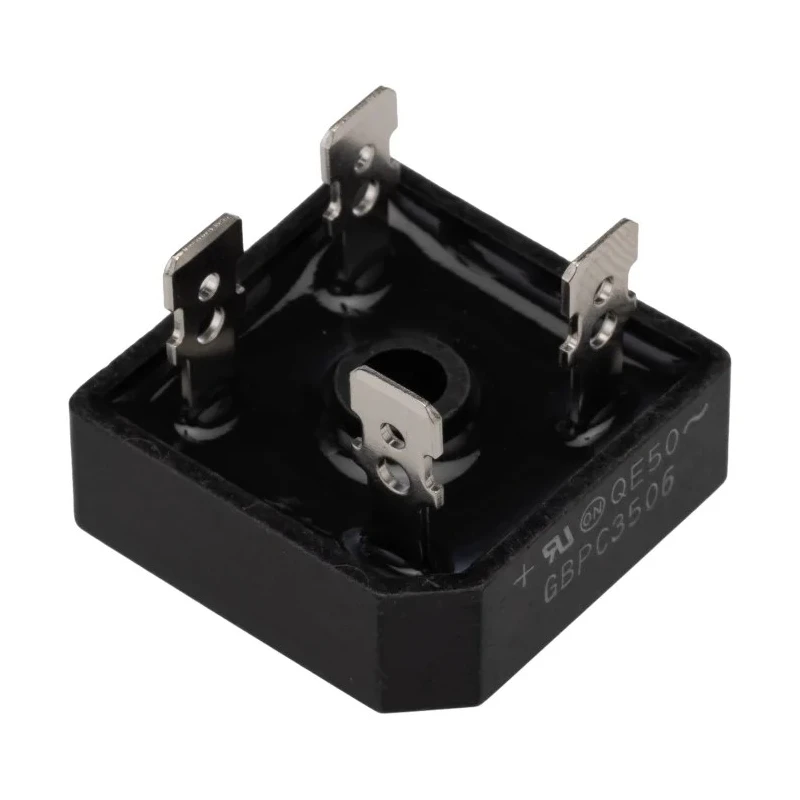

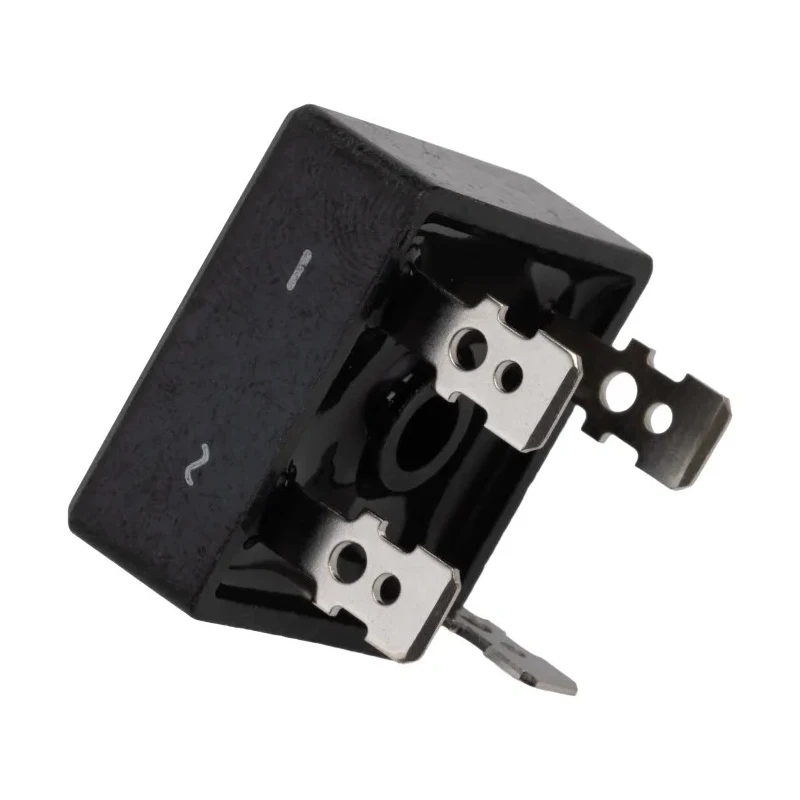

onsemi Bridge Rectifier, 600 V, 400 A, 4-Pin Single GBPC3506

onsemi GBPC3506 Bridge Rectifier is a high-quality discrete semiconductor designed for reliable power rectification. Featuring a peak reverse repetitive voltage rating of 600 V and capable of handling a forward current of 35 A, it provides robust performance for industrial and electronic applications. The bridge rectifier uses a 4-pin single configuration in a GBPC package with a through hole mount type, allowing easy installation and integration into circuits.

This device operates efficiently within an ambient temperature range of -55°C to 150°C. Its integrally molded heatsink design significantly lowers thermal resistance, ensuring excellent heat dissipation during surge conditions with a peak non-repetitive forward surge current rating of 400 A. The silver-nickel terminal finishes enhance corrosion resistance and electrical conductivity, ideal for high-reliability environments.

The compact physical dimensions (29 mm length, 29 mm width, and 11.23 mm height) fit well in constrained circuit layouts. With its single-phase architecture and 4-pin terminal count, the GBPC3506 model is versatile for power supply rectification in industrial machines, electronic devices, and manufacturing applications.

Supports peak reverse repetitive voltage of 600 volts. Designed for forward current of 35 amperes and surge current of 400 amperes. Features integrally molded heatsink for effective thermal management. Silver-nickel terminals ensure durable and efficient conductivity.

Compact GBPC package with through hole mount type for easy integration. Operates reliably within -55°C to 150°C temperature range. Measures 29 mm in length, 29 mm in width, and 11.23 mm in height. Ideal for semiconductor discrete power rectification applications.

Single-phase, 4-pin configuration.

This bridge rectifier is applicable in various industrial, laboratory, and manufacturing settings requiring solid-state rectification. It is suitable for replacing or upgrading power components in electronic control, HVAC, and power supply modules.
