onsemi Bridge Rectifier 1000 V 400 A, 4-Pin Single Through Hole GBPC3510W

Free Delivery in India | Lowest Global Shipping Charges

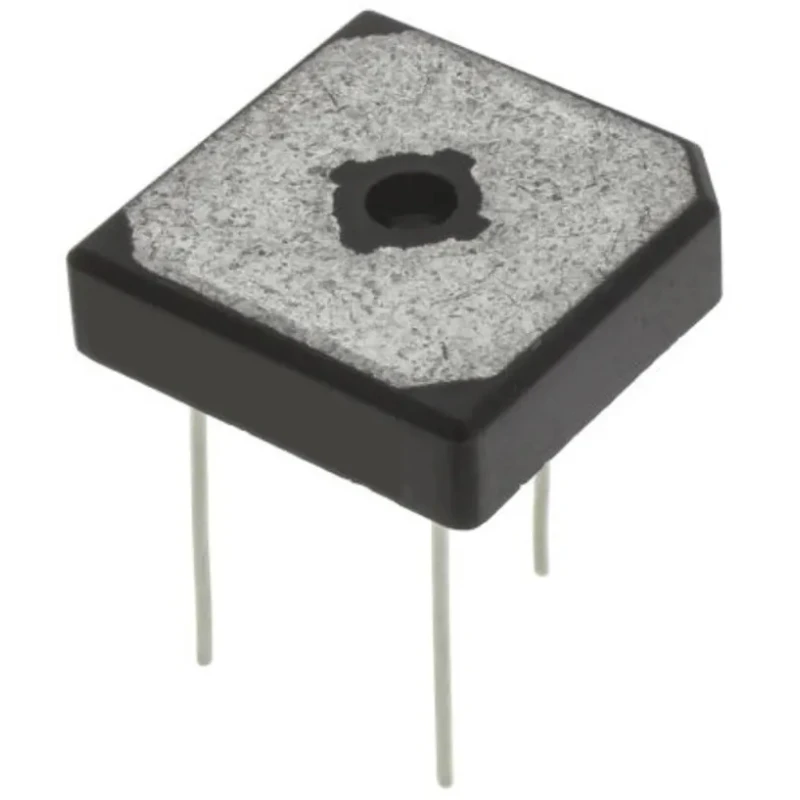

onsemi Bridge Rectifier 1000 V 400 A, 4-Pin Single Through Hole GBPC3510W

Name: onsemi Bridge Rectifier 1000 V 400 A, 4-Pin Single Through Hole GBPC3510W
Brand: onsemi
SKU: 156556
Price: 4.89 USD
Availability: InStock



Category Bridge Rectifier Brand onsemi Condition New

Specifications

Country of Origin	China
Brand	onsemi
Height	11.23mm
Length	29mm
Model	GBPC3510W
Width	29mm
Mount Type	Through Hole
Series	GBPC35W
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	GBPC
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	1000V
Peak Reverse Current Ir	500μA
Peak Non-Repetitive Forward Surge Current Ifsm	400A
Forward Current If	35A
Peak Forward Voltage Vf	1.1V

Key Features

Integrally molded heatsink enables very low thermal resistance for efficient heat dissipation.
Surge overload ratings support currents up to 400 A for durability under high load conditions.
Operates reliably between -55°C to 150°C operating temperature range.
Isolated voltage from case to lead exceeds 2500 V for enhanced electrical isolation.
Terminals have silver-nickel finish to ensure stable electrical connectivity and corrosion resistance.
Compact dimensions of 29mm length, 29mm width, and 11.23mm height facilitate PCB integration.
Suitable for general usage applications requiring robust rectification.

Product Description

onsemi GBPC3510W Bridge Rectifier is a high-performance, single-phase semiconductor component designed for efficient AC to DC power conversion with a peak reverse repetitive voltage rating of 1000 V and capable of handling 35 A forward current. The device features a 4-pin GBPC package with through hole mounting, making it suitable for a variety of industrial and electronic applications.

Its integrally molded heatsink offers very low thermal resistance, thereby maximizing heat dissipation and enhancing reliability under continuous operation. The rectifier supports surge overload currents up to 400 A, ensuring protection against transient high current conditions during startup or fault events.

Designed to operate in extreme environments, the GBPC3510W withstands temperatures ranging from -55°C up to 150°C, making it versatile for diverse industrial, HVAC, power supply, and manufacturing uses. Its isolated voltage from case to lead exceeds 2500 V, providing superior electrical isolation and safety.

The silver-nickel terminal finish enhances corrosion resistance and ensures stable electrical connectivity over the device lifetime. With compact dimensions of 29 mm length, 29 mm width, and 11.23 mm height, this bridge rectifier is optimized for space-saving PCB layouts.

This product is made in China and approved for general usage applications requiring a reliable bridge rectifier for AC to DC conversion tasks. Integrally molded heatsink provides low thermal resistance for efficient heat dissipation.

High surge overload capability with 400 A peak current rating. Wide operating temperature range from -55°C to 150°C for extreme environments. Isolated voltage from case to lead exceeds 2500 V for electrical safety. Silver-nickel finish on terminals ensures corrosion resistance and secure connections.

Compact 4-pin GBPC package for through hole mounting and easy PCB integration. Suitable for general usage in industrial, electronic, HVAC, and manufacturing applications. Explore more semiconductor components and Bridge Rectifiers in the Electronics & Electricals category on EnvMart.
