| Country of Origin | China |
|---|---|
| Brand | onsemi |
| Height | 1.08mm |
| Length | 3mm |
| Model | SS24FL |
| Width | 1.95mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-123F |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 0.55V |
| Peak Reverse Recovery Time trr | 9.49ns |

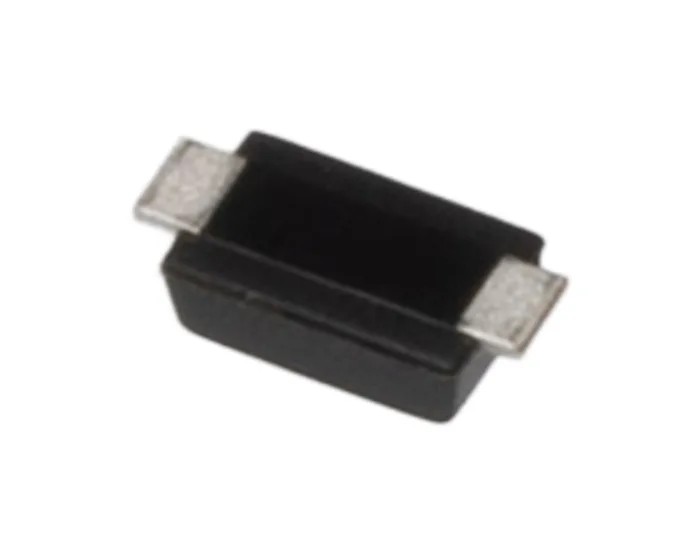

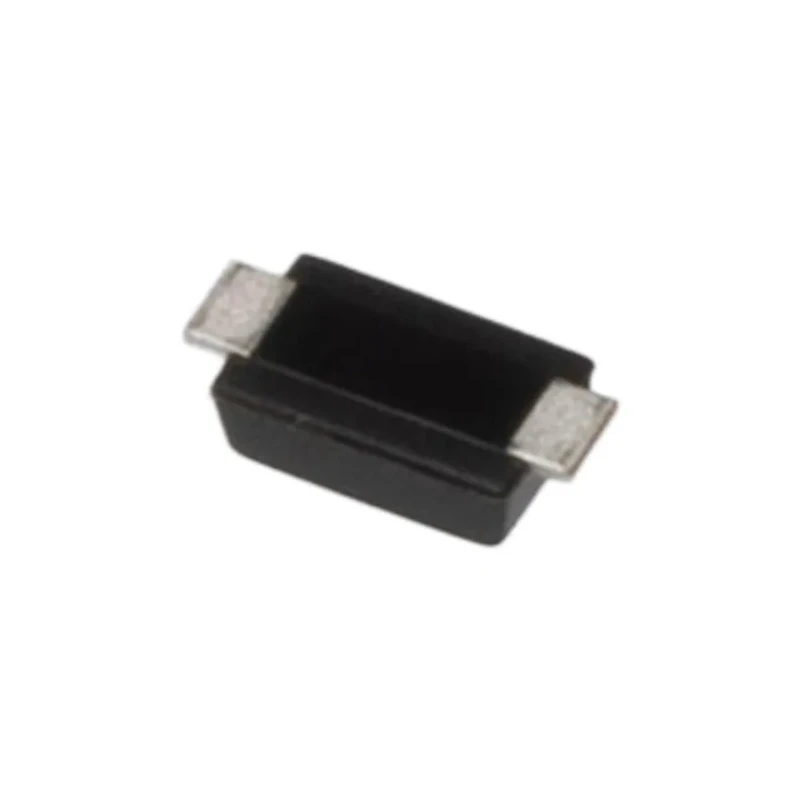

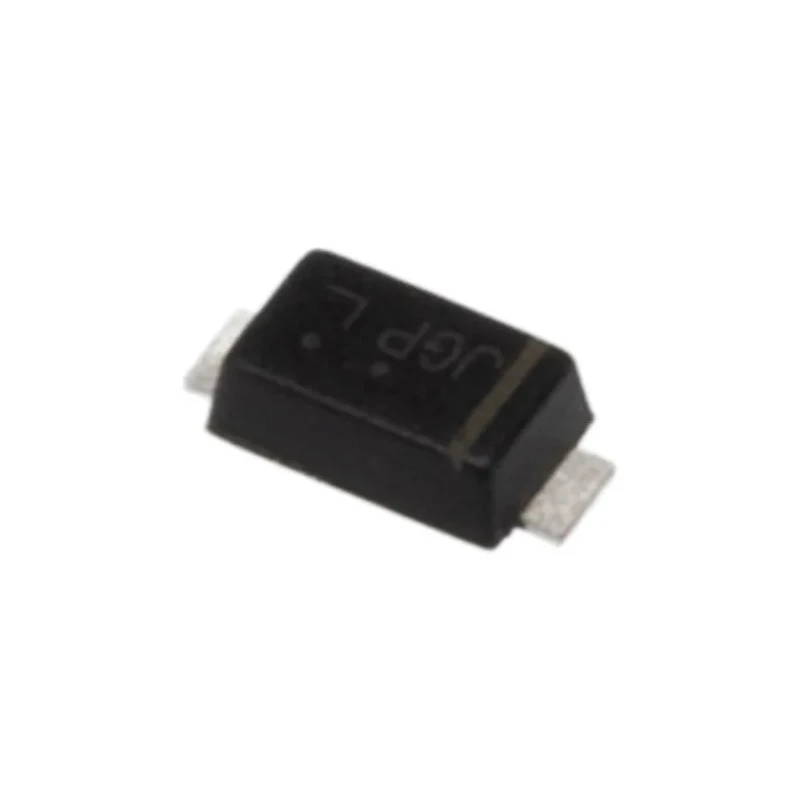

onsemi SS24FL is a high-performance Schottky diode with a 40 V peak reverse voltage and a 2 A continuous forward current rating. Packaged in a compact 2-pin SOD-123F surface mount package, this diode is engineered for efficiency and reliability in electronic circuits.
The diode features an ultra-thin profile with a maximum height of 1.08 mm, making it ideal for applications with limited space and height constraints. It operates effectively across a wide temperature range from -55°C to 125°C, which is suitable for various industrial, automotive, and consumer electronics environments.
Key electrical characteristics include a maximum forward voltage of 0.55 V that reduces power loss, a fast peak reverse recovery time of 9.49 ns supporting high-speed switching, and a peak non-repetitive forward surge current rating of 50 A to handle transient overloads without damage.
This diode is constructed using a green mold compound, supporting environmentally friendly manufacturing processes. Its 2-pin package configuration simplifies PCB layout and assembly processes.
onsemi SS24FL is typically used in power supply circuits, voltage clamping, and reverse polarity protection, as well as in power management applications where low forward voltage drop and fast switching are critical.
Designed for industrial, automotive, and commercial electronic applications, this diode delivers consistent, high-quality performance with robust mechanical and electrical properties.
Ultra thin profile with maximum height of 1.08 mm. Maximum continuous forward current of 2 A for reliable operation. Peak reverse repetitive voltage of 40 V for low voltage applications. Fast peak reverse recovery time of 9.49 ns supports efficient switching.
Wide operating temperature range from -55°C to 125°C. Single diode configuration in 2-pin SOD-123F surface mount package. Low maximum forward voltage of 0.55 V for high efficiency. Green mold compound for environmental compliance.
Peak non-repetitive forward surge current of 50 A for transient protection. Manufactured in China using surface mount technology. Explore the onsemi Schottky Diode SS24FL and related semiconductor components at EnvMart to meet your high-efficiency circuit design needs.
