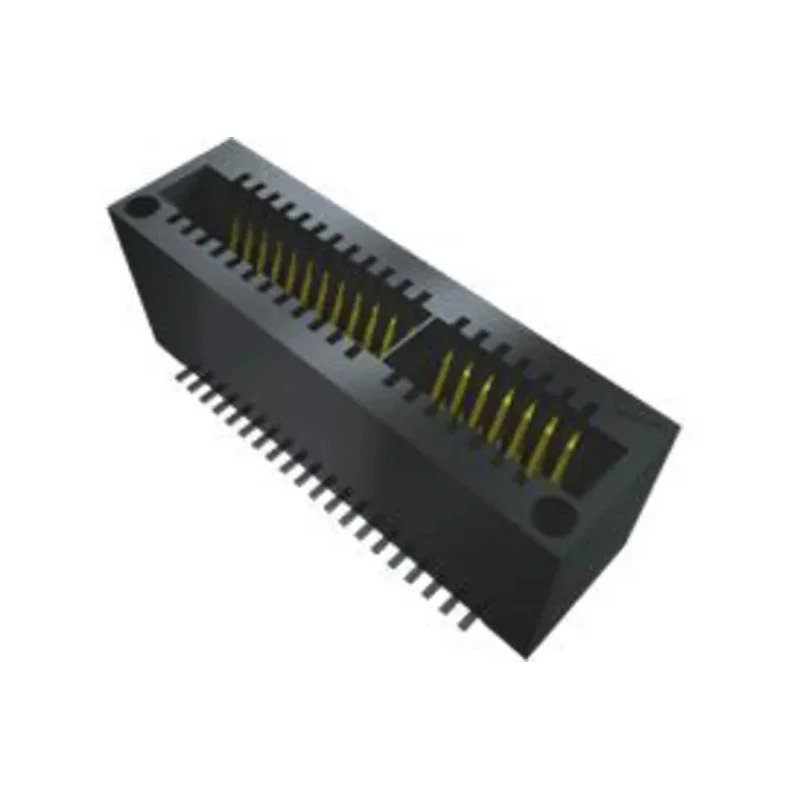

Samtec MEC1 Series Vertical Edge Connector Female, Surface Mount, 40 Contacts, 1 mm Pitch, 2 Row, Gold Plated
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 300V ac |
| Brand | Samtec |
| Orientation | Vertical |
| Current | 2.2A |
| Model | MEC1 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | MEC1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | Edge |
| Card Thickness | 1.6mm |
Key Features
- The connector supports a current rating of 2.2A per contact.
- It uses gold plating on beryllium copper alloy contacts for excellent conductivity and corrosion resistance.
- The card thickness compatibility is 1.6 mm, fitting standard PCBs.
- Designed for operation between -55°C and 125°C, ensuring durability in harsh environments.
- The mount type is surface mount, facilitating easy PCB assembly.
- Contact termination is via soldering, providing secure electrical connections.
- Operating voltage is rated at 300V AC for safety and performance.
- The housing is made of liquid crystal polymer, offering strong mechanical stability.
Product Description
Samtec MEC1 MEC1-120-02-F-D-A is a vertical edge connector designed for electronic and industrial applications requiring reliable interconnections. Featuring 40 gold-plated contacts arranged in two rows with a 1 mm pitch, this female connector ensures precise mating with edge cards of 1.6 mm thickness.
The connector carries a current rating of 2.2A per contact and supports voltages up to 300V AC, suitable for a wide range of power and signal transmission needs. Its contact material is a beryllium copper alloy, known for excellent electrical and mechanical properties, with gold plating enhancing corrosion resistance and contact reliability.
Constructed with a liquid crystal polymer housing, this connector offers robustness and dimensional stability, making it suitable for use in demanding environments with operating temperatures ranging from -55°C to 125°C.
The surface mount design with solder termination facilitates efficient PCB mounting and durability under mechanical stress. Manufactured in the United States, the MEC1 series ensures adherence to high manufacturing and quality standards.
The connector supports a current rating of 2.2A per contact. Gold plating on beryllium copper alloy contacts enhances conductivity and corrosion resistance. Compatible with 1.6 mm thick edge cards for flexible PCB integration.
Operates reliably within the wide temperature range of -55°C to 125°C. Designed for surface mount with solder termination for secure and easy assembly. Rated for 300V AC operating voltage to support varied electronic applications.
The housing is constructed of liquid crystal polymer for strength and durability. Manufactured in the United States, ensuring high-quality production standards.
This Edge Connector is ideal for electronics manufacturing, industrial controls, and power distribution systems requiring robust and compact interconnect solutions. Explore more precision connectors and electronic components in the Electronics & Electricals category at EnvMart.
