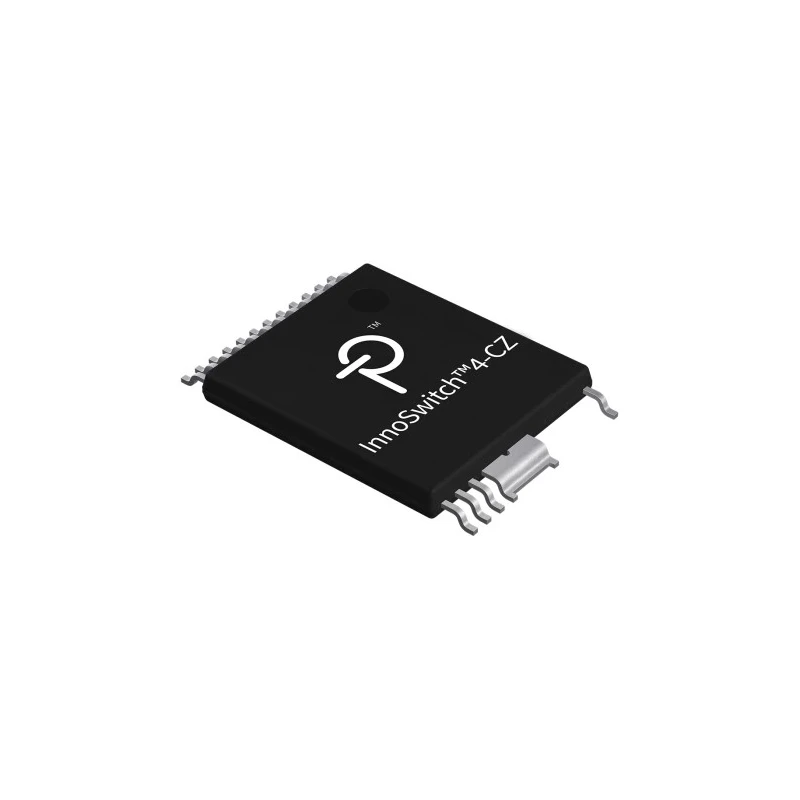

Power Integrations High Voltage Switcher 14 A, 24V, 75W, 24-Pin Surface Mount InSOP-24D INN4075C-H186-TL
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Switcher 14 A, 24V, 3 V 24-Pin, InSOP-24D RS Stock No |
| Brand | Power Integrations |
| Height | 10.8mm |
| Length | 9.4mm |
| Model | INN4075C-H186-TL |
| Width | 1.6mm |
| Output Power | 75W |
| Mount Type | Surface |
| Series | InnoSwitch4-CZ |
| Topology | Flyback |
| Maximum Operating Temperature | 150°C |
| Package Type | InSOP-24D |
| Minimum Operating Temperature | -40°C |
| Switching Frequency | 140kHz |
| Maximum Input Voltage | 264V |
| Maximum Output Current | 14A |
| Maximum Output Voltage | 24V |
| Minimum Input Voltage | 85V |
| Pin Count | 24 |
| Supply Current | 2.7mA |
| Minimum Output Voltage | 3V |
| Minimum Output Current | 6.5A |
Key Features
- The device supports a maximum output current of 14 A and output voltage of 24 V.
- Operates at a steady-state switching frequency of up to 140 kHz, reducing transformer size.
- Includes primary and secondary controllers with built-in safety-rated feedback.
- Features protection functions including overvoltage, overcurrent limiting, and overtemperature shutdown.
- Compact surface mount design with 24 pins in an InSOP-24D package.
- Wide temperature range from -40 °C to 150 °C for industrial use.
- Incorporates synchronous rectification driver and secondary-side sensing for improved efficiency.
- Minimum input voltage of 85 V and maximum input voltage of 264 V.
Product Description
Power Integrations INN4075C-H186-TL is a high voltage switcher IC designed for flyback power converters requiring efficient, compact power management.
This device operates at up to 140 kHz switching frequency, which minimizes transformer size and enhances power density. It integrates primary and secondary controllers with a safety-rated feedback mechanism, providing robust control and protection.
The surface mount InSOP-24D package with 24 pins facilitates easy PCB integration. The IC supports a maximum output current of 14 A at output voltage of 24 V and output power capability up to 75 W, making it ideal for a range of industrial and commercial electronic applications.
Protection features include output overvoltage protection, overcurrent limiting, and thermal shutdown to ensure safe operation under fault conditions. The synchronous rectification driver and secondary-side sensing improve efficiency significantly compared to standard flyback controllers.
Operating temperature ranges from -40 °C to 150 °C enable reliable performance in harsh environments. With a supply current of just 2.7 mA and input voltage range from 85 V to 264 V, this IC is versatile and efficient for AC-DC converter designs.
The device is suited for industrial electronics, power management systems, and compact power supply designs. The InnoSwitch4-CZ series offers advanced topology for improved efficiency and compactness. Package type InSOP-24D ensures compatibility with surface-mount assembly processes.
The IC does not have automotive standards certification but meets rigorous industrial requirements.
This high voltage switcher is commonly used in industrial machines, power management units, and semiconductor applications where reliable and efficient power conversion is critical.
Explore more in the Power Management ICs category on EnvMart for related power supply solutions and semiconductor components to maximize your design efficiency and reliability.
