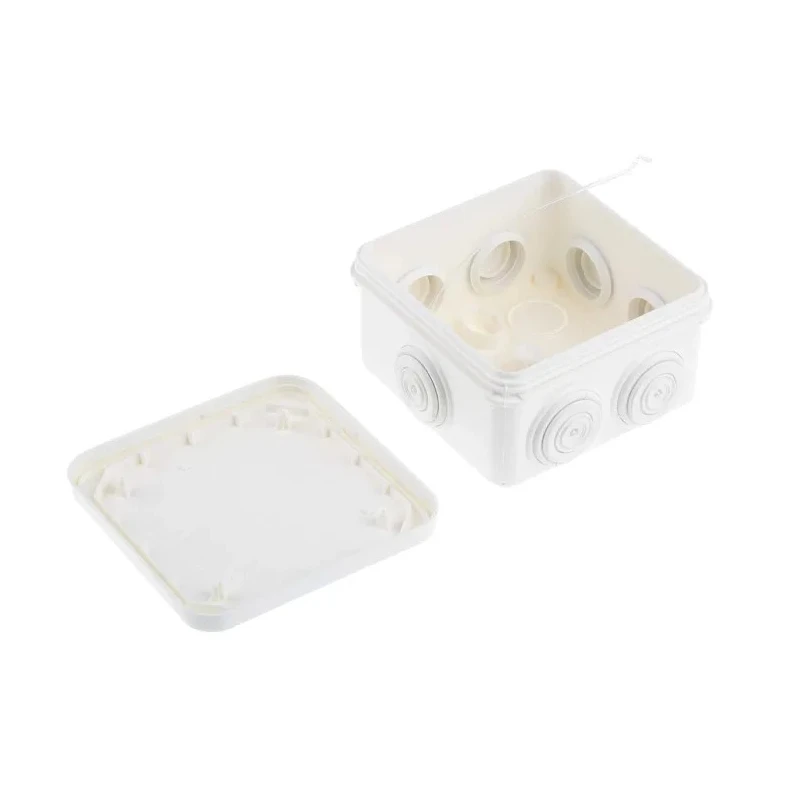

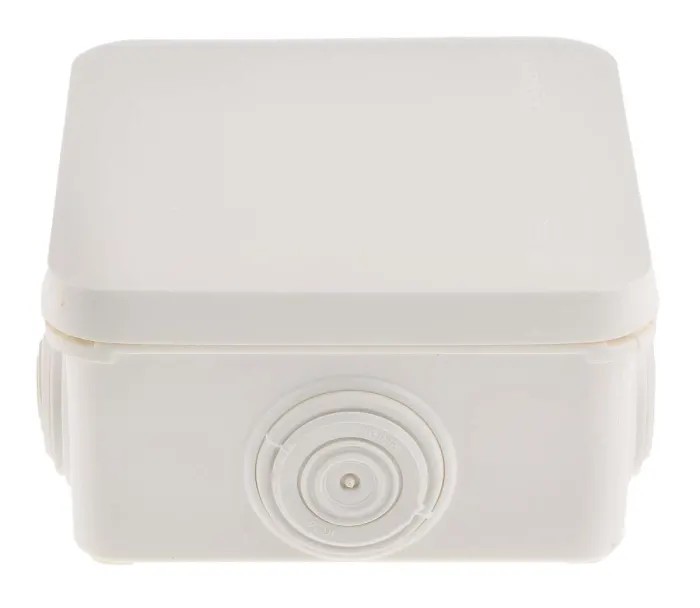

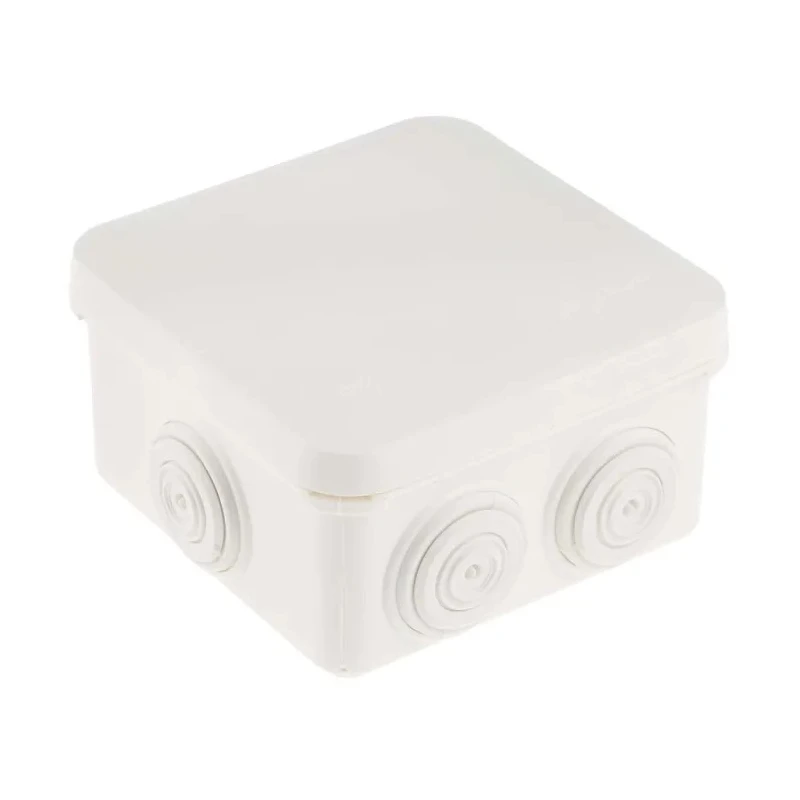

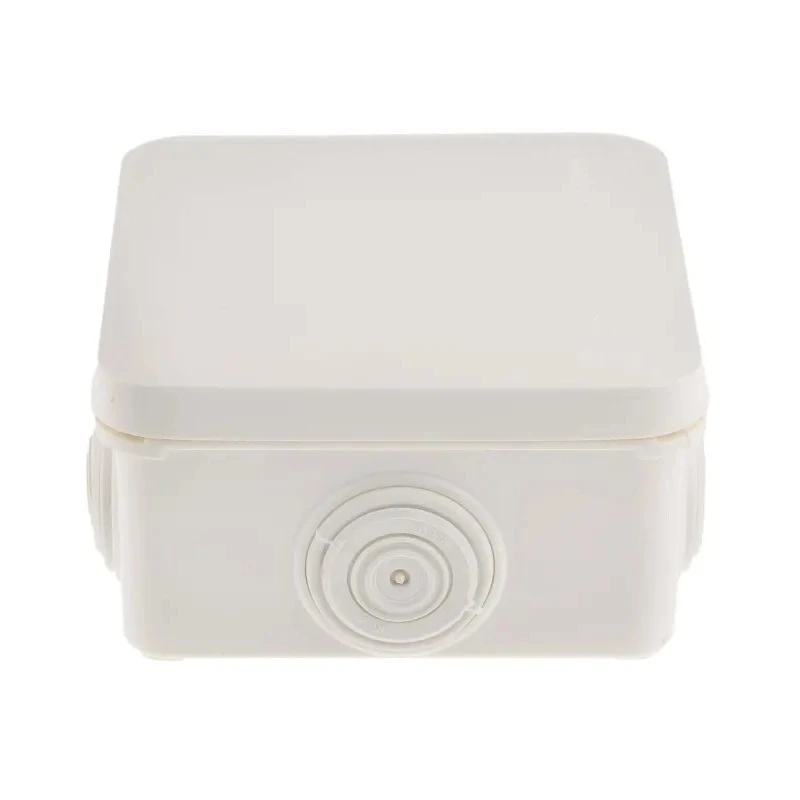

Legrand Plexo Series White Plastic Junction Box IP55 4 Terminals 80mm x 80mm x 45mm 0 920 13

Legrand 0 920 13 Plexo Series Plastic Junction Box is an industrial and domestic grade enclosure made of durable plastic, providing IP55 and IK07 protection ratings. It measures 80 mm in length, 80 mm in width, and 45 mm in height, making it compact yet functional for various wiring applications.

The junction box features 4 terminals and 7 ways to accommodate multiple wiring connections efficiently. Its construction includes ABS plastic body, polypropylene cover, and polyamide fixing screws, ensuring high resistance to environmental factors and mechanical impacts.

Designed for wall or ceiling mounting, the box offers interchangeability with membrane glands or pre-cut knock-out holes that facilitate easy installation and maintenance of ISO type cables. The device operates reliably within a temperature range of -25 to 45 Celsius and is self-extinguishing up to 650 degrees Celsius to ensure safety in electrical installations.

The materials used are halogen-free, adding to its environmental compliance. The cover features designated marking areas for labelling to improve identification and organization within electrical panels.

This junction box is certified under RoHS standards and manufactured in France, providing assurance of quality and compliance with international norms. Constructed from robust plastic material for long-lasting use. Rated IP55 and IK07 for dust and water resistance and impact protection.

Features 4 terminals and 7 ways for flexible wiring configurations. Suitable for wall and ceiling mounting in industrial and domestic environments. Operating temperature range from -25 to 45 degrees Celsius. Self-extinguishing up to 650 degrees Celsius for enhanced safety.

Halogen-free materials ensure environmentally safer use. Includes marking areas on the cover for clear labelling. Complies with RoHS standards and is manufactured in France. Diameter for gland openings or conduit is 25 mm.

Legrand products are widely used in industrial, commercial, and residential electrical installations for secure and safe wiring management. This junction box is part of the Plexo series, known for its quality and reliability.
