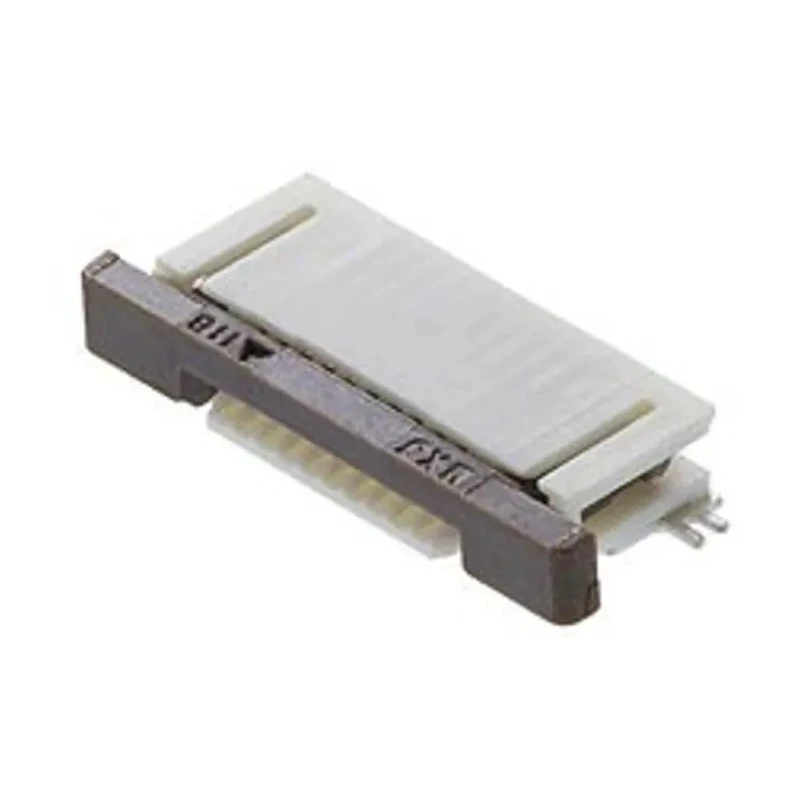

Molex 0.5 mm Pitch 30 Way Right Angle Female Easy-On FFC/FPC Connector Surface Mount Solder Termination 54132-3062-TR375

Molex 54132-3062-TR375 is a high-precision FPC Connector engineered for surface mount applications in electronics and electrical systems. This 30 way female connector features a fine 0.5 mm pitch and right angle orientation with a bottom contact style that facilitates efficient PCB design and assembly. Its Easy-On FFC/FPC design supports zero insertion force, minimizing stress and wear during insertion and removal.

The contacts are made of phosphor bronze and plated with 0.1μm gold, ensuring excellent electrical conductivity and corrosion resistance. The connector’s thermoplastic housing provides robust mechanical stability while insulating the contacts. Rated for 500mA current and 50V voltage, it is suitable for low power signal applications.

Its locking mechanism secures the connection and supports operation in industrial and commercial environments with temperatures ranging from -20°C to 85°C. The compact single-row configuration optimizes electronics design where PCB space is critical, making it ideal for consumer electronics, instrumentation, and industrial control systems.

Applications include use in PCB interconnections, flexible circuit connections in computing devices, instrumentation panels, and other electrical assemblies requiring reliable compact connectors. This genuine Molex component is manufactured in Malaysia, adhering to high-quality standards for consistent performance.

Features 30 contacts with 0.5 mm pitch for high-density connections. Phosphor bronze contact material ensures reliable electrical performance. Gold plated (0.1μm Au) contacts provide corrosion resistance and superior conductivity.

Right angle orientation with bottom contact position supports versatile PCB layouts. Zero insertion force (ZIF) mechanism guarantees ease of assembly and reduces contact wear. Thermoplastic housing material offers durable mechanical support and insulation.

Supports a maximum current of 500mA and voltage rating of 50V. Locking mechanism included for secure mating and connection stability. Operates reliably over a temperature range from -20°C to 85°C for varied environments.

Compact form factor with single row of contacts enhances PCB space utilization.

This FPC connector model 54132-3062-TR375 by Molex is part of the 54132 series and is suitable for industrial, electronics manufacturing, laboratory instruments, and commercial electronic applications. It is essential for designing flexible printed circuit cable connections with ease of installation, mechanical reliability, and optimized electrical performance.
