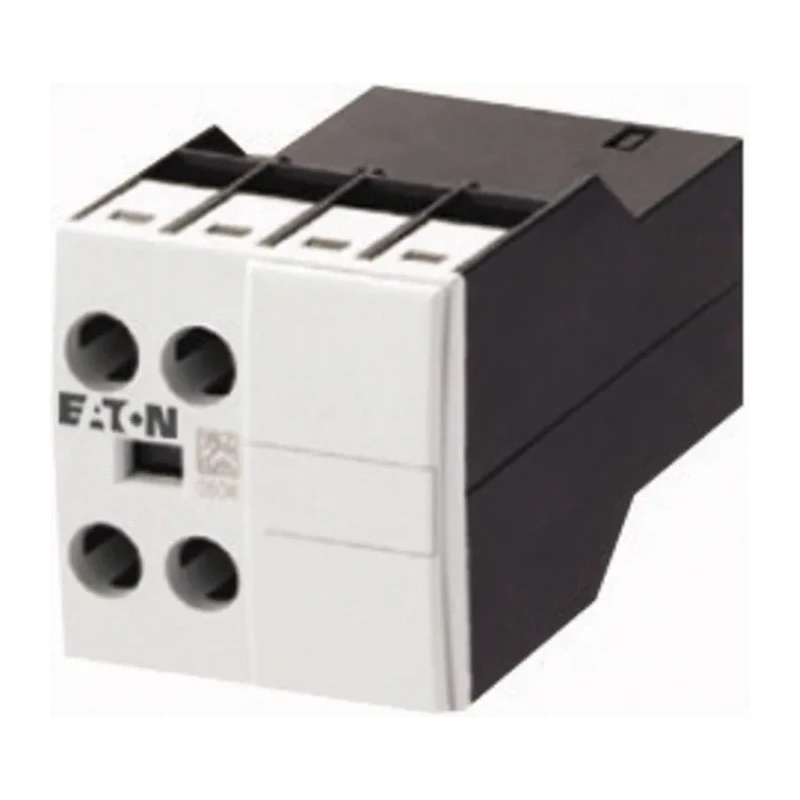

Eaton Auxiliary Contact 2 NC Front Fixing 16A 500V AC DILA Series 276420 DILA-XHI02

The Eaton 276420 DILA-XHI02 Auxiliary Contact module is a specialized industrial component designed for control and signal applications in complex electrical installations. With its two normally closed (NC) contacts, this unit delivers dependable switching performance, supporting the requirements of automation and control gear across manufacturing, HVAC, and processing plants.

This auxiliary contact features a front mounting configuration, enabling straightforward integration into DILA contactor relays or DILM motor contactors. Its robust design supports an operational voltage of up to 500V AC and a contact current of 16A, making it a reliable addition for demanding circuit control environments.

Equipped with screw terminals, the DILA-XHI02 ensures a secure and efficient connection with minimal installation time. It is engineered for high durability, with a mechanical lifecycle of up to 10 million cycles, which guarantees prolonged operational use and reduced maintenance downtime.

The module complies with international safety and performance standards, including UL, VDE 0660, IEC/EN 60947, and CSA, making it a globally accepted solution for a wide array of industrial automation tasks. Its insulation voltage rating of 690V enhances safety, while an operational current rating of 4A provides reliable auxiliary switching.

The auxiliary contact is highly versatile, suitable for implementing control tasks such as electrical signaling, power circuit management, and coupling with programmable logic controllers (PLCs) for process automation. The front fix mounting and screw terminal configuration allow for easy retrofitting or expansion of existing systems.

Performance remains optimal over wide ambient conditions, with operational temperature spanning from -25°C to 60°C. The contact block is built for use in challenging environments where durability and reliability are critical.

This Eaton auxiliary contact is primarily used in industrial installations involving electric motor starters, relay interfaces, control panels, and power distribution circuits. It plays a vital role in operational safety and system flexibility, ensuring seamless control synchronization between main contactors and supplementary devices.

The DILA contactor series, including auxiliary contact modules like the DILA-XHI02, supports industrial automation, manufacturing, HVAC, and commercial controls. For more products in this category or from Eaton, explore the Relays & Contactors section on EnvMart.
