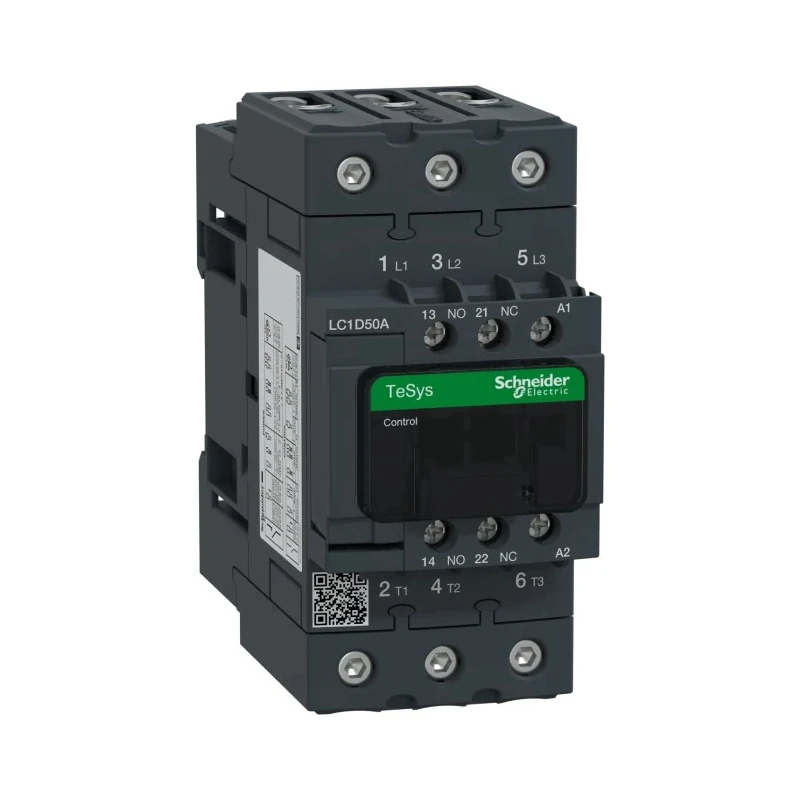

Schneider Electric 3-Pole Contactor, 24V AC Coil, 50 A, 22 kW, 3 NO Auxiliary Contacts, 690V AC LC1D
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 122mm |
| Model | LC1D |
| Depth | 120mm |
| Width | 55mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 22kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | RoHS, UL, CCC, CSA, EAC, IEC |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 50A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 50A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
Key Features
- Designed for industrial automation with compact dimensions of 122mm length, 55mm width, and 120mm depth.
- Features 3 normally open (NO) main contacts and 2 auxiliary contacts with 1 NO and 1 NC configuration.
- Supports control and operation at 690V AC contact voltage and 24V AC coil voltage.
- Mounts easily onto DIN rail or by screw fixing for flexible installation.
- Durable with a lifespan of up to 1,450,000 electrical cycles and 6,000,000 mechanical cycles.
- Safe operation ensured by a bidirectional peak-limiting diode suppressor protecting the coil.
- Rated for operating temperatures from -5°C to +60°C and a maximum cycling rate of 3,600 cycles per hour.
- Equipped with screw clamp terminals compatible with slotted, Phillips, or Pozidriv screwdrivers.
Product Description
Schneider Electric LC1D50AB7 is a 3-pole contactor designed for controlling high-power motors and resistive loads such as heating elements in industrial and commercial automation applications. Operating with a 24V AC coil and supporting contact voltage of 690V AC, this contactor delivers a reliable 50A contact current and power rating of 22 kW. Its compact size of 122mm length, 55mm width, and 120mm depth makes it suitable for space-conscious installations.
The contactor's modular design includes 3 normally open main contacts and 2 Auxiliary Contacts configured as 1 NO and 1 NC for flexible control circuits. The coil is protected with a bidirectional peak-limiting diode suppressor that ensures safe switching and longevity during frequent cycling of up to 3,600 operations per hour at temperatures up to 60°C.
Mounting versatility is provided via DIN rail compatibility or screw fixing. The unit employs screw clamp terminals designed for multiple screwdriver types including slotted, Phillips, and Pozidriv, enhancing onsite flexibility. The robust design supports a long electrical lifespan of approximately 1,450,000 cycles and mechanical lifespan of 6,000,000 cycles.
Compliance with international standards such as RoHS, UL, CCC, CSA, EAC, and IEC guarantees quality and safety. Moreover, the contactor is part of Schneider Electric's Better World initiative, featuring designed-for-disassembly parts to promote sustainability and ease of maintenance.
This contactor is ideal for building control systems, HVAC installations, energy industry applications, and heavy engineering plants requiring reliable and efficient motor control solutions.
Choose Schneider Electric LC1D50AB7 contactor to ensure dependable electrical performance and integration into your industrial automation control gear. Designed for motor control and resistive load applications. Equipped with screw clamp terminals for reliable connection.
Suitable for DIN rail mounting and screw fixing. Robust mechanical and electrical cycling durability. Compliant with multiple international safety and quality standards. Explore a full range of Schneider Electric automation and control gear at EnvMart for seamless industrial and commercial electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact voltage rating of this model is 690V AC.
This model operates with a coil voltage of 24V AC.
It features 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
The maximum operating temperature for this unit is 60°C.
The rated contact current is 50A.
The dimensions of this model are 122mm in length, 55mm in width, and 120mm in depth.
The power rating of this contactor is 22 kW.
It can be mounted onto a DIN rail or by screw fixing, providing flexible installation options.
It has a lifespan of approximately 1,450,000 electrical cycles.
This contactor complies with several international standards, including RoHS, UL, CCC, CSA, EAC, and IEC.
It is equipped with screw clamp terminals compatible with slotted, Phillips, or Pozidriv screwdrivers.
This contactor is suitable for motor control and resistive load applications in industrial and commercial automation contexts.
