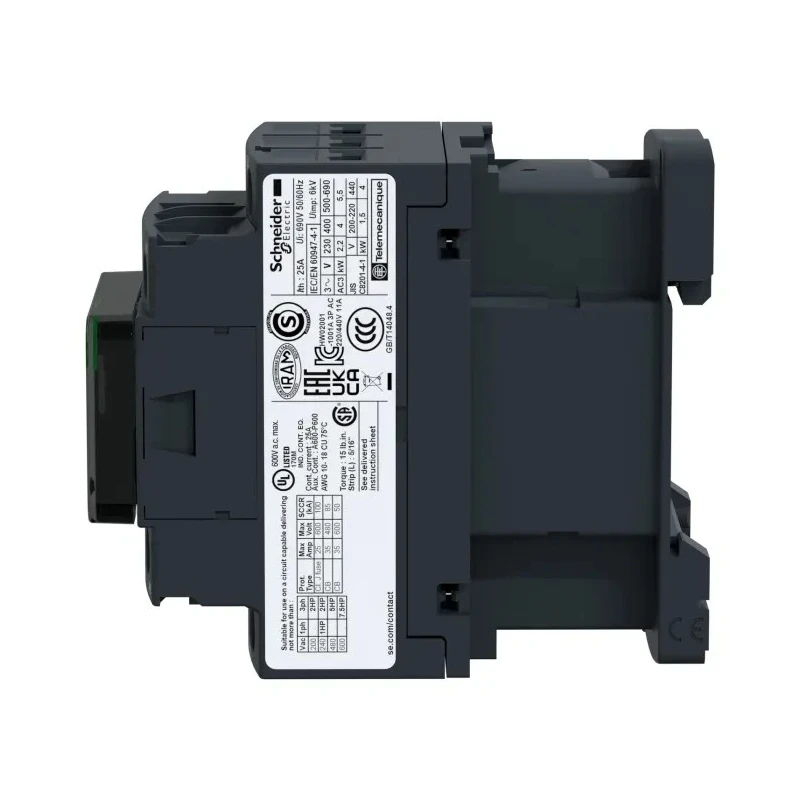

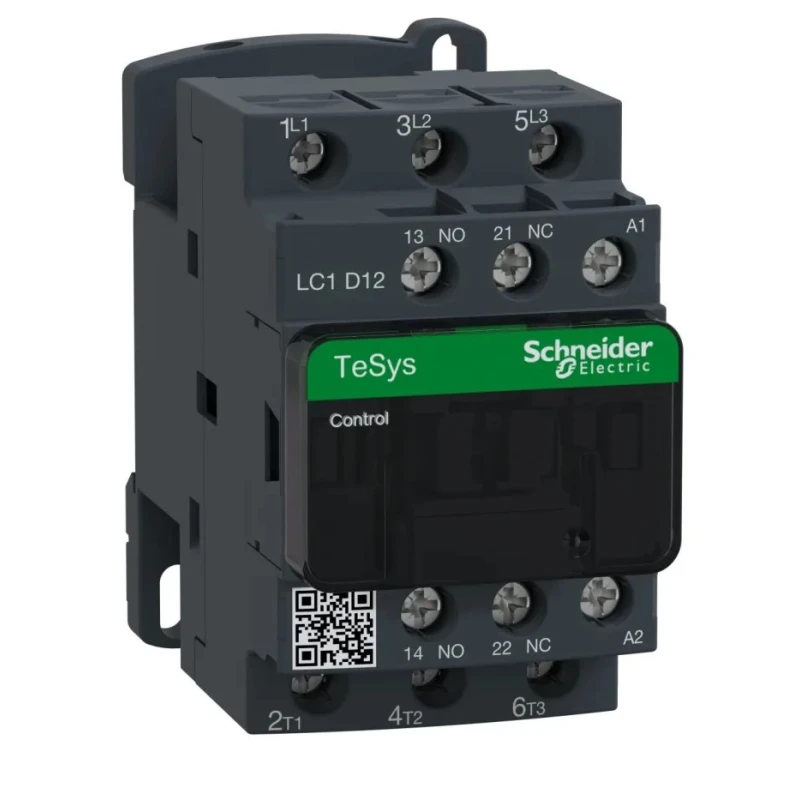

Schneider Electric LC1D Contactor, 230V AC Coil, 3-Pole, 12A, 5.5 kW, 3 NO Auxiliary Contacts, 690V AC
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 77mm |
| Model | LC1D |
| Depth | 86mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | RoHS, UL, CCC, CSA, EAC, IEC |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 12A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 12A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| WEG CWB Contactor, 24V ac Coil, 3-Pole, 12 A, 5.5 kW 24V ac, 3 NO, 690V acBrand | WEG |
| 3 pole contactor,5.5kW 12A 240Vac coilBrand | Telemecanique |
Key Features
- Operates with a coil voltage of 230V AC for reliable switching.
- Equipped with three poles and a contact current rating of 12A for robust performance.
- Features 3 normally open (NO) contacts suitable for motor and resistive loads.
- Includes two auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC) for additional control functions.
- Compact design with dimensions 77mm length, 45mm width, and 86mm depth.
- Supports up to 5.5 kW power rating at 230V AC for efficient motor operation.
- Designed for use on DIN rails, enabling easy installation and configuration.
- Operates in temperatures ranging from -40°C to 60°C, ensuring durability under harsh conditions.
Product Description
Schneider Electric LC1D12P7 is a high-quality 3-pole contactor featuring a 230V AC coil voltage and a 12A contact current rating. This contactor belongs to the TeSys D series and offers a power rating of 5.5 kW at 230V AC, designed for reliable motor control and resistive load applications in industrial settings.
Its compact dimensions of 77mm length, 45mm width, and 86mm depth make it suitable for standard DIN rail mounting, facilitating installation and integration into control panels. The contactor is equipped with three normally open (NO) main contacts and two auxiliary contacts (one NO and one NC), providing versatile control options for complex automation systems.
Designed to operate efficiently in harsh conditions, it supports an operational temperature range from -40°C to 60°C and includes screw terminals that ensure secure and resilient wiring. The device boasts a maximum breaking capacity of 250A at 440V, ensuring safety and reliability under various load conditions.
The LC1D12P7 complies with major international standards including RoHS, UL, CCC, CSA, EAC, and IEC, reflecting its quality and safety. Additionally, the product is a part of the RS Better World portfolio, emphasizing sustainability through its design for disassembly and environmental responsibility.
Operates with 230V AC coil voltage for motor and resistive loads. Three-pole design with 12A current rating and 5.5 kW power capacity. Includes 3 normally open contacts plus 2 Auxiliary Contacts (1 NO/1 NC). Compact size of 77 x 45 x 86 mm for easy DIN rail mounting.
Wide temperature range: -40°C to +60°C for industrial durability. Utilizes secure screw terminals for reliable electrical connections. International certifications: RoHS, UL, CCC, CSA, EAC, IEC. Designed for disassembly promoting sustainability and easy recycling.
This contactor is ideal for industrial motor control, automation systems, and resistive load management, ensuring high performance and safety. It supports AC-3 utilization and is suitable for controlling three-phase motors efficiently. Its robust design and multiple approvals make it a preferred choice for industrial and commercial electrical installations.
Explore the full range of Schneider Electric contactors and automation control devices on EnvMart for reliable, high-quality electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for this model is 230V AC, which is used for reliable switching in motor control applications.
It has a power rating of 5.5 kW at 230V AC, making it suitable for efficient motor operation.
This contactor features a three-pole design, allowing it to control three-phase motors effectively.
The contact current rating for this unit is 12A, which supports various motor and resistive load applications.
The dimensions of this model are 77mm in length, 45mm in width, and 86mm in depth, making it compact for installation.
It is designed for DIN rail mounting, which simplifies installation and integration into control panels.
This model operates efficiently within a temperature range of -40°C to 60°C, suitable for harsh industrial conditions.
It includes two auxiliary contacts, configured as one normally open (NO) and one normally closed (NC), for additional control functions.
This contactor complies with several international standards, including RoHS, UL, CCC, CSA, EAC, and IEC, reflecting its quality and safety.
It utilizes screw terminals, which ensure secure and resilient electrical connections during operation.
It is suitable for motor control and resistive load management in industrial settings, providing versatility in automation systems.
The maximum contact voltage for this contactor is 690V AC, enabling it to handle various load conditions safely.
