Celduc CW Series Solid State Relay 25A Load Panel Mount 280 Vrms Load 32V Control CWD2425-10
Specifications
| Country of Origin | India |
|---|---|
| Brand | Celduc |
| Height | 33mm |
| Length | 45.7mm |
| Model | CWD2425-10 |
| IP Rating | IP20 |
| Width | 22mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | CW |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Random Voltage Switching |
| Maximum Load Current | 25A |
| Standards/Approvals | CE, RoHS |
| Minimum Load Voltage | 24V |
| Minimum Control Voltage | 3V |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 1mA |
Key Features
- Offers a maximum load current of 25A suitable for robust electrical applications.
- Panel mount design ensures easy and secure installation in electrical panels.
- Features a low off-state leakage current of 1mA for energy efficiency.
- Capacitance value of 8pF contributes to stable switching performance.
- Constructed with SCR output type providing reliable solid state switching.
- Screw terminal type allows secure electrical connections.
- Functions with a random voltage switching method for versatile application.
- Operates effectively within temperature range -40°C to 80°C.
Product Description
Crydom CWD2425-10 Solid State Relay is a high-performance device engineered for electrical and industrial automation applications. It supports a maximum load current of 25A and is designed for panel mounting, making it suitable for integration into control panels and automation systems. The relay handles up to 280 Vrms load voltage and operates with a control voltage of up to 32V.
This SSR features an SCR output type and a low off-state leakage current of just 1mA, ensuring efficient energy use and reduced heat dissipation. Its capacitance of 8pF contributes to reliable switching functions using random voltage switching, enhancing performance across various electrical load types.
Designed with screw terminals, the relay ensures firm and secure connections preventing loosening in high-vibration environments. The integrated removable fingerproof cover adds an extra layer of operator safety during installation and maintenance.

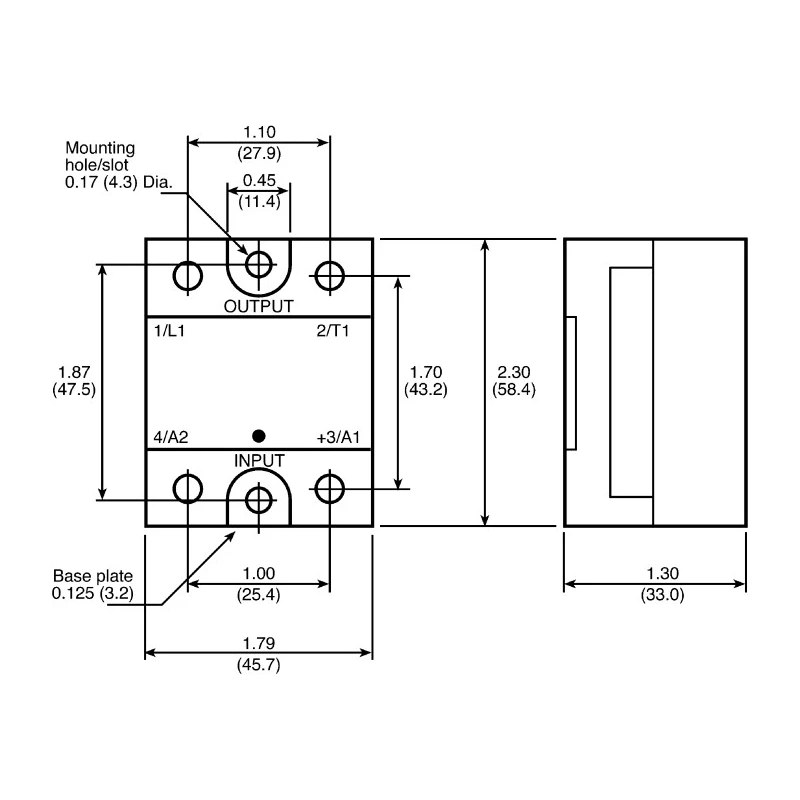

The device is rated IP20, suitable for indoor environments with adequate enclosure protection. Its operating temperature range from -40°C to 80°C ensures stable operation in diverse industrial settings. Compact dimensions (45.7mm length, 33mm height, 22mm width) facilitate easy installation without occupying excessive panel space.
Maximum 25A load current rating. Panel mount type for convenient installation. Low off-state leakage current enhances energy efficiency. Random voltage switching provides flexibility. SCR output type for reliable switching performance.
Screw terminal connections for secure electrical contacts. Wide operating temperature range from -40°C to 80°C. IP20 rated for safe indoor applications. Compact size supports integration in limited space. Compliance with CE and RoHS standards ensures quality and regulatory adherence.
This solid state relay is suitable for use in industrial automation, electrical control panels, HVAC systems, and manufacturing equipment. It offers reliable switching with low maintenance and extended operational life compared to mechanical relays.
Explore more Crydom Solid State Relays and related industrial automation components in the Electronics & Electricals category at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this solid state relay is 25A, making it suitable for robust electrical applications.
This model operates with a control voltage range from 3V to 32V.
The relay operates effectively within a temperature range of -40°C to 80°C.
It features an SCR output type, providing reliable solid state switching performance.
This relay has a low off-state leakage current of just 1mA, which enhances energy efficiency and reduces heat dissipation.
The dimensions of this model are 45.7mm in length, 33mm in height, and 22mm in width.
This model is designed for panel mounting, ensuring easy and secure installation in electrical panels.
The relay is rated IP20, making it suitable for indoor environments with adequate enclosure protection.
The capacitance value is 8pF, contributing to stable switching performance.
This solid state relay is suitable for industrial automation, electrical control panels, HVAC systems, and manufacturing equipment.
It complies with CE and RoHS standards, ensuring quality and regulatory adherence.
The relay features screw terminals, which allow for secure electrical connections.
