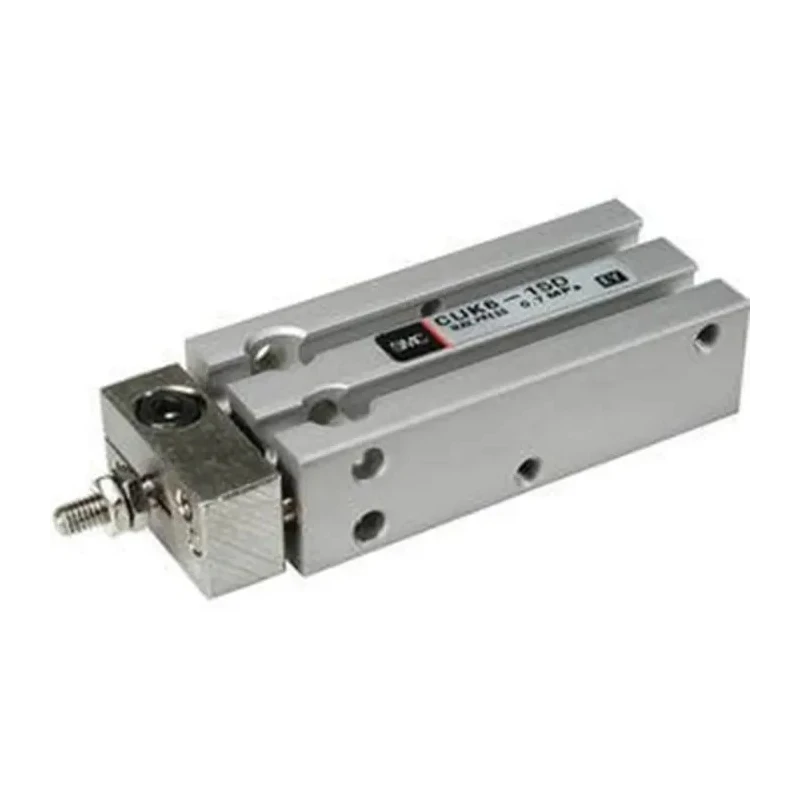

SMC 10 mm Double Acting Cylinder CU Series Through Hole Mount Aluminium Alloy Body CUK20-20D

Free Delivery in India | Lowest Global Shipping Charges

SMC 10 mm Double Acting Cylinder CU Series Through Hole Mount Aluminium Alloy Body CUK20-20D



Category Pneumatic Cylinders & Actuators Brand SMC Condition New

Specifications

Country of Origin	China
Brand	SMC
Body Material	Aluminium Alloy
Model	CUK20-20D
Mount Type	Through Hole
Series	CU
Maximum Operating Temperature	70°C
Stroke Length	10mm
Rod Type	Single
Action Type	Double Acting
Standards/Approvals	RoHS
Cushioning Type	Rubber Bumper
Piston Rod Gender	Female
Piston Rod Thread Standard	Metric

Key Features

The cylinder features a double acting action type for bidirectional movement.
Body material is aluminium alloy ensuring durability and lightweight design.
It uses a through hole mount type for easy and stable installation.
Equipped with rubber bumper cushioning for smooth operation and noise reduction.
Piston rod is a single female metric threaded type designed for secure attachment.
Maximum operating temperature rating of 70°C suitable for typical pneumatic environments.
Complies with RoHS standards ensuring environmental safety and quality assurance.
Compact and space-saving design with auto-switch mounting groove included.

Product Description

SMC CUK20-20D Double Acting Cylinder from the CU series is a compact pneumatic cylinder designed for precision actuation requiring a 10 mm stroke. This double acting cylinder features an aluminium alloy body to provide strength while minimizing weight. It is engineered with a through hole mount type, allowing secure and versatile installation in pneumatic systems.

The cylinder includes rubber bumper cushioning which reduces noise and mechanical shock during operation, ensuring longevity and smooth cycling. The piston rod is a single type with female metric threading, facilitating easy connection to load and actuation mechanisms.

With a maximum operating temperature of 70°C, the cylinder is suitable for most standard industrial pneumatic environments. It meets RoHS compliance standards, reflecting SMC's commitment to environmental and safety requirements.

The CU series cylinders feature auto-switch mounting grooves compatible with various sensor switches for position sensing, making them well-suited for automation and control tasks.

This pneumatic piston rod cylinder is typically used in industrial automation, manufacturing machinery, fluid power systems, and mechanical tooling assemblies where compact and reliable actuation is needed. Its space-saving form factor and durable construction allow for integration into tight spaces without compromising performance.

The cylinder's aluminium alloy construction ensures durability and corrosion resistance. Double acting piston design provides force on both extension and retraction strokes. Through hole mount allows for secure and stable installation in pneumatic circuits.

Rubber bumper cushioning minimizes mechanical shock and noise. Stroke length of 10 mm supports short distance linear motion requirements. Compatible with auto-switch sensors for precise position feedback. Suitable for various industrial pneumatic applications including manufacturing and automation.

Efficient, compact design reduces required space in machinery layouts. Explore more pneumatic piston rod cylinders and actuators at EnvMart's extensive industrial tools and equipment categories for tailored solutions to your automation needs.
