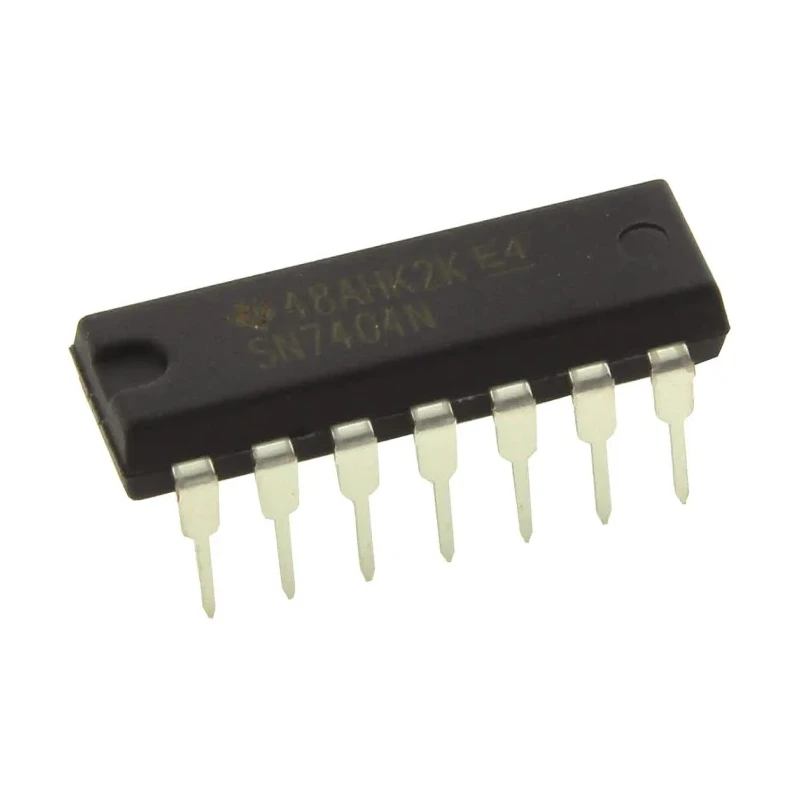

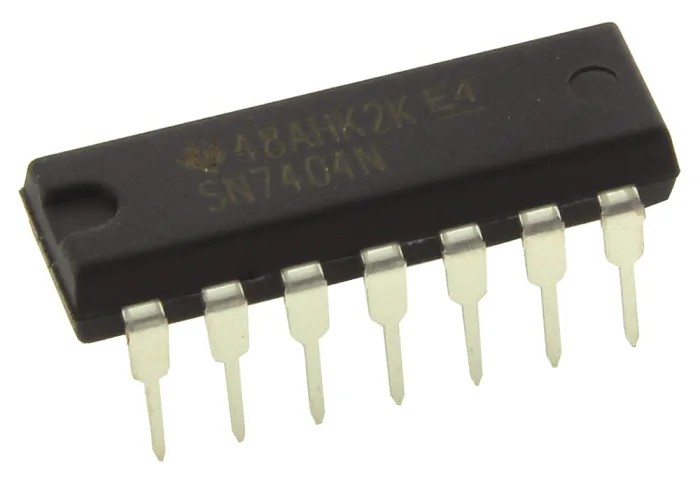

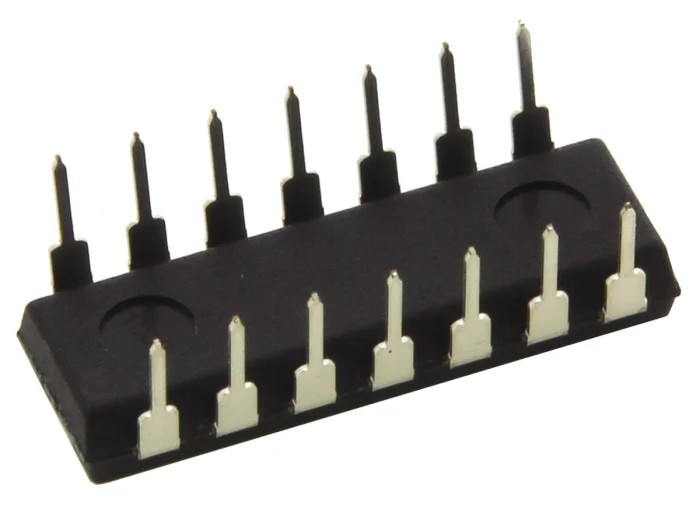

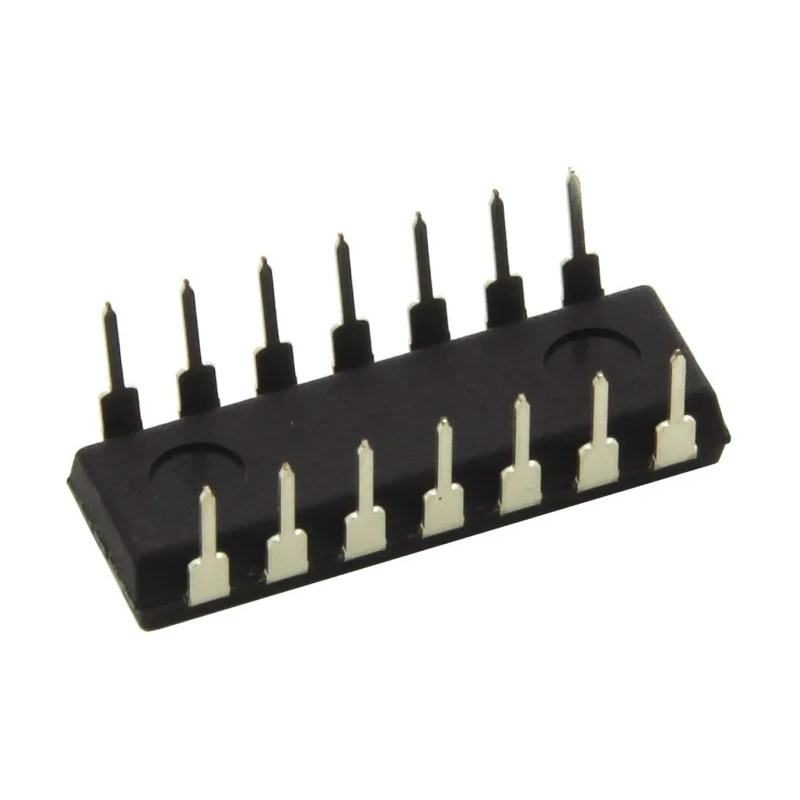

Texas Instruments Inverter 6 Elements, 14-Pin PDIP, Through Hole, 4.75V to 5.25V SN7404N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | SN7404N |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | SN7404 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | EN 61340-5-1 |
| Pin Count | 14 |
| Number of Elements per Chip | 6 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | 74 |
| Logic Function | Inverter |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -0.4mA |
| Maximum Low Level Output Current | 16mA |
Key Features
- This device contains 6 inverter elements per chip for effective logic functions.
- Constructed with a 14-pin PDIP package suitable for through hole mounting.
- Operating supply voltage ranges from 4.75V to 5.25V ensuring stable performance.
- Maximum output currents are -0.4mA for high level and 16mA for low level output.
- Designed to operate between 0°C and 70°C, suitable for a range of industrial applications.
- Physical dimensions include length of 19.3mm, width 6.35mm, and height 4.57mm.
- Conforms to EN 61340-5-1 standard for electrostatic safety.
- Part of the 74 series logic family known for TTL logic compatibility.
Product Description
Texas Instruments SN7404N Inverter 6 Elements 14-Pin PDIP is a semiconductor logic IC that provides six inverter circuits within a single package. Featuring a through-hole 14-pin PDIP form factor, it allows easy integration into circuit boards designed for TTL logic with 74 series family compatibility.
The device operates with a power supply voltage between 4.75V and 5.25V, delivering maximum high-level output currents of -0.4mA and low-level output currents of 16mA. It is engineered to perform reliably within the temperature range of 0°C to 70°C, making it suitable for varied industrial and laboratory environments.
Measuring 19.3mm in length, 6.35mm in width, and 4.57mm in height, the SN7404N adheres to the EN 61340-5-1 standard, ensuring protection against electrostatic discharge during handling and operation.
This inverter IC family is widely utilized in electronic circuits requiring signal inversion with defined electrical characteristics for industrial automation, power supply control systems, and embedded electronics. The through-hole PDIP package ensures durability and ease of assembly for prototyping and manufacturing.
This inverter contains six logic inverter elements within a single IC. Supplied in a 14-pin PDIP package suitable for through-hole mounting. Operating voltage range of 4.75V to 5.25V ensures compatibility with standard TTL logic levels.
Enables effective signal inversion with maximum output current specifications precisely defined. Complies with electrostatic standards for safe industrial and laboratory handling.
This Texas Instruments SN7404N inverter is crucial for engineers and technicians working in electronics manufacturing, prototyping, and embedded system design, delivering reliable inversion functions with consistent electrical performance. Consider browsing the Electronics & Electricals category for related semiconductor components and logic ICs at EnvMart.
Explore more products in our Inverters ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SN7404N inverter operates with a supply voltage range of 4.75V to 5.25V.
This model contains six inverter elements per chip, allowing for effective logic functions.
The dimensions of the SN7404N are 19.3mm in length, 6.35mm in width, and 4.57mm in height.
The maximum low-level output current for the SN7404N is 16mA.
The maximum high-level output current for this model is -0.4mA.
It is designed to operate within a temperature range of 0°C to 70°C.
This inverter is supplied in a 14-pin PDIP package suitable for through-hole mounting.
Yes, it conforms to the EN 61340-5-1 standard for electrostatic safety.
The SN7404N belongs to the 74 series logic family, which is known for TTL logic compatibility.
This model supports through-hole mounting, making it easy to integrate into circuit boards.
It is suitable for various industrial and laboratory applications requiring signal inversion.
The country of origin for the SN7404N is India.
