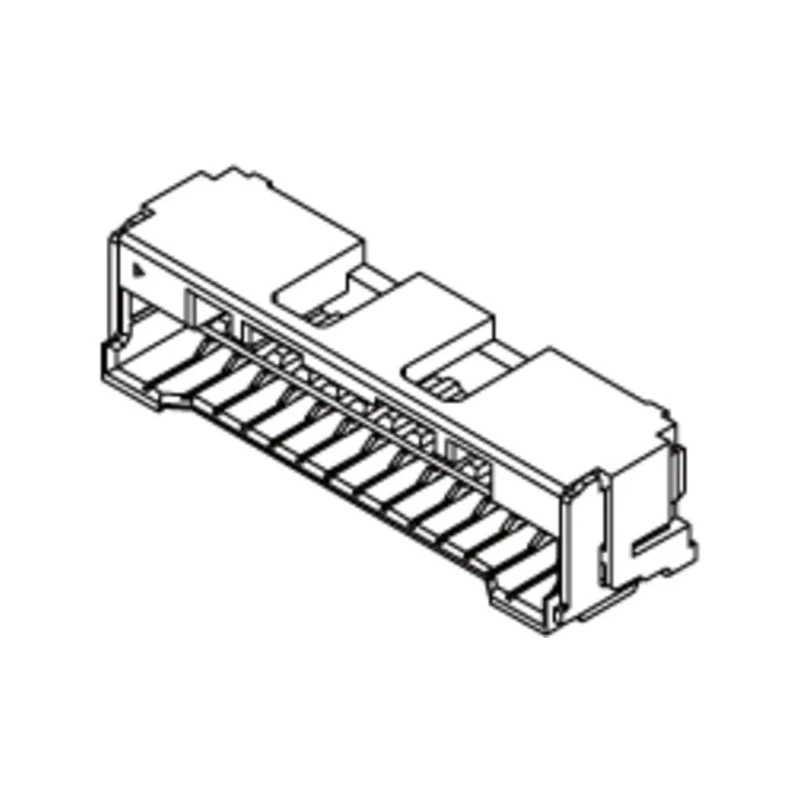

Molex CLIK-Mate Series Right Angle Surface PCB Socket 10-Contact 1 Row 1.5 mm Pitch Crimp 502585-1070
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 100V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 12A |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Copper |
| Series | CLIK-Mate |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Sub Type | PCB Receptacle |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.5mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector System | Signal, Wire-to-Board |
Key Features
- The socket accommodates a current rating of 12A for robust electrical performance.
- Jacketed with thermoplastic housing to ensure durability and insulation.
- Termination is by crimp style improving secure wire connection.
- Contact material is copper with tin plating for corrosion resistance.
- Operating temperature ranges from -40°C to 105°C suitable for varied environments.
- Compact, single-row 10-circuit configuration simplifies PCB layout.
- Manufactured in Japan ensuring high-quality standards.
Product Description
Molex 502585-1070 CLIK-Mate Series Right Angle Surface PCB Socket is designed for industrial and electronic applications requiring reliable wire-to-board connections. With 10 contacts positioned in a single row and a 1.5 mm pitch, this socket offers precise alignment and secure engagement for signal transmission.
The device supports a maximum current rating of 12A and a voltage rating of 100V, making it suitable for low to medium power circuitry in industrial automation, telecommunications, and HVAC control systems. The thermoplastic housing provides excellent insulation and durability, while crimp termination facilitates robust and consistent wire connection.
Contact elements are constructed from copper material with tin plating, providing excellent conductivity and resistance to environmental corrosion. The socket's right angle orientation permits space-saving PCB layouts, especially effective in compact and high-density designs. Operating safely over a temperature range from -40°C to 105°C, it withstands harsh industrial and laboratory environments reliably.
Manufactured in Japan, the product adheres to high standards of quality and reliability without additional certifications or approvals. Its CLIK-Mate series platform ensures compatibility with other modular connectors from Molex, allowing flexible system configurations.
The socket accommodates a current rating of 12A for robust electrical performance. Jacketed with thermoplastic housing to ensure durability and insulation. Termination is by crimp style improving secure wire connection. Contact material is copper with tin plating for corrosion resistance.
Operating temperature ranges from -40°C to 105°C suitable for varied environments. Voltage rating at 100V designed for signal circuit applications. Compact, single-row 10-circuit configuration simplifies PCB layout. Manufactured in Japan ensuring high-quality standards.
This PCB socket is widely used in industrial tools, electronic manufacturing, telecommunications infrastructure, and automation equipment. It fits well in industrial assembly lines requiring durable and dependable connector solutions.
Browse more Molex products or related PCB Sockets in the Electronics & Electricals category on EnvMart to find compatible connectors and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Molex CLIK-Mate Series Right Angle Surface PCB Socket has a maximum current rating of 12A.
This PCB socket supports a voltage rating of 100V, making it suitable for low to medium power circuitry applications.
The housing is made from thermoplastic, while the contact elements are constructed from copper with tin plating for corrosion resistance.
It operates safely within a temperature range of -40°C to 105°C, suitable for various environments.
This model features 10 contacts arranged in a single row configuration.
The socket utilizes crimp termination, which enhances the security of wire connections.
The pitch size for this socket is 1.5 mm, allowing for precise alignment and secure engagement.
This socket is designed with a right angle orientation, which is beneficial for space-saving PCB layouts.
The socket is manufactured in Japan, adhering to high quality standards.
It is widely used in industrial tools, electronic manufacturing, telecommunications infrastructure, and automation equipment.
This model supports a signal, wire-to-board connector system.
The compact, single-row 10-circuit configuration simplifies PCB layout, making it effective for high-density designs.
