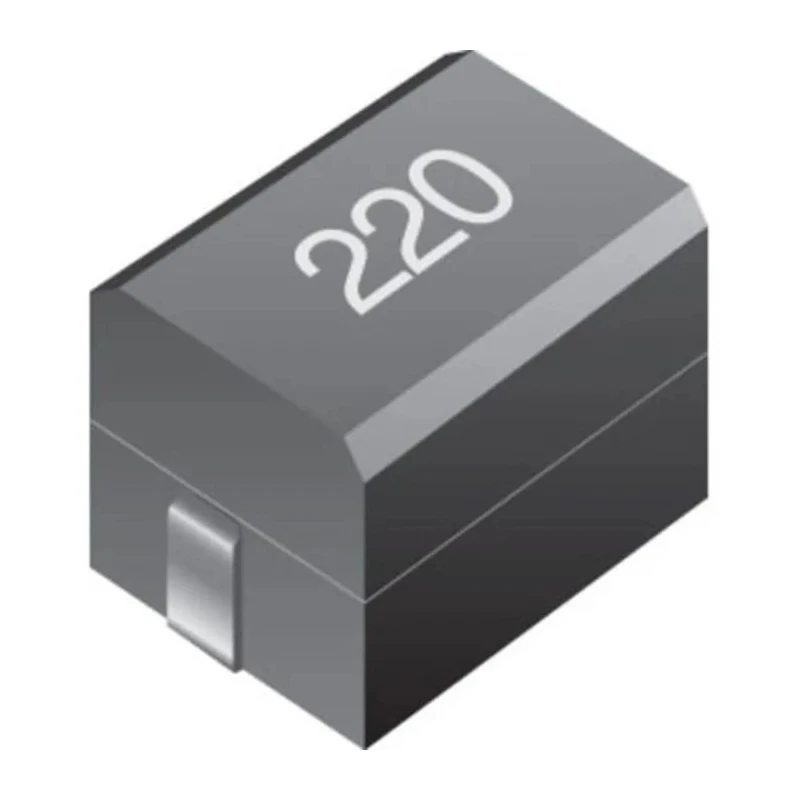

Bourns 1812 Multilayer Surface Mount Inductor 680 µH Ferrite Core ±10% 120 mA Idc Q30 CC453232A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Bourns |
| Height | 3.2mm |
| Length | 4.5mm |
| Model | CC453232A |
| Depth | 3.2mm |
| Packaging | Tape & Reel |
| Series | CC453232A |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 680μH |
| Standards/Approvals | RoHS |
| Package/Case | 1812 |
| Maximum DC Current | 120mA |
| Maximum DC Resistance | 24Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 2.2MHz |
| Minimum Quality Factor | 30 |
| Inductor Construction | Ferrite Core |
| Automotive Standard | AEC-Q200 |
Key Features
- The inductor features a ferrite core construction for enhanced magnetic performance.
- It has a compact 1812 package size measuring 4.5 mm length by 3.2 mm width and height.
- Capable of operating in extreme temperatures from -40°C to 150°C.
- Includes solder termination for reliable PCB mounting.
- Offers a maximum DC resistance of 24 Ω and minimum quality factor of 30.
- Compliant with RoHS and automotive AEC-Q200 standards, ensuring environmental and quality assurance.
- Available in tape and reel packaging format suitable for automated assembly processes.
Product Description
The Bourns CC453232A is a high-quality 1812 multilayer surface mount inductor designed with a ferrite core to deliver 680 µH inductance and a tolerance of ±10%. This component supports a maximum DC current of 120 mA and is optimized for applications requiring compact size combined with robust electrical performance.
Its core material is ferrite, which provides effective magnetic properties and contributes to the high quality factor (minimum Q of 30), suitable for various electronic circuits where stability and precision are critical. The inductor’s compact dimensions of 4.5 mm length and 3.2 mm width and height allow usage in space-constrained designs, common in modern electronic devices.
The component can reliably operate across a wide temperature range from -40°C to 150°C, making it appropriate for automotive and industrial environments compliant with the AEC-Q200 standard. Its solder termination style assures secure and automated PCB placement. Additionally, the inductor exhibits a maximum DC resistance of 24 Ω, ensuring efficiency in power and signal conditioning applications.
Designed for surface mount technology (SMT), this inductor is supplied in tape and reel packaging which suits automated pick-and-place assembly lines, enhancing production efficiency and reducing handling damage. It meets RoHS environmental compliance requirements.
The inductor features a ferrite core construction for enhanced magnetic performance. It has a compact 1812 package size measuring 4.5 mm length by 3.2 mm width and height. Capable of operating in extreme temperatures from -40°C to 150°C.
Includes solder termination for reliable PCB mounting. Offers a maximum DC resistance of 24 Ω and minimum quality factor of 30. Compliant with RoHS and automotive AEC-Q200 standards, ensuring environmental and quality assurance.
Available in tape and reel packaging format suitable for automated assembly processes.
This product is widely used in electronics manufacturing, automotive electronics, telecommunications, and other applications requiring dependable inductive components. Browse more Surface Mount Inductors and electronic components on EnvMart for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 680 µH with a tolerance of ±10%.
The maximum DC current rating for this inductor is 120 mA.
It has a compact package size of 4.5 mm in length and 3.2 mm in both width and height.
This inductor can operate within a temperature range of -40°C to 150°C.
It is constructed with a ferrite core, which enhances its magnetic performance.
The maximum DC resistance of this inductor is 24 Ω.
It has a minimum quality factor of 30, indicating good performance in inductive applications.
The inductor is available in tape and reel packaging, suitable for automated assembly processes.
Yes, it is compliant with RoHS and automotive AEC-Q200 standards, ensuring environmental and quality assurance.
This model features a solder termination style for reliable PCB mounting.
The maximum self-resonant frequency is 2.2 MHz.
It is widely used in electronics manufacturing, automotive electronics, and telecommunications, among other applications requiring inductive components.
