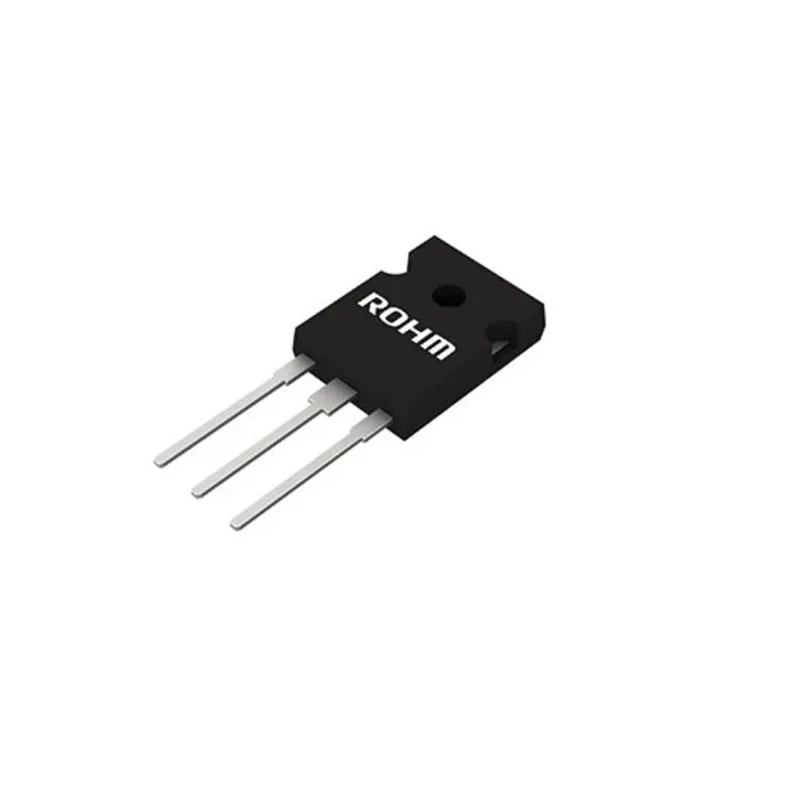

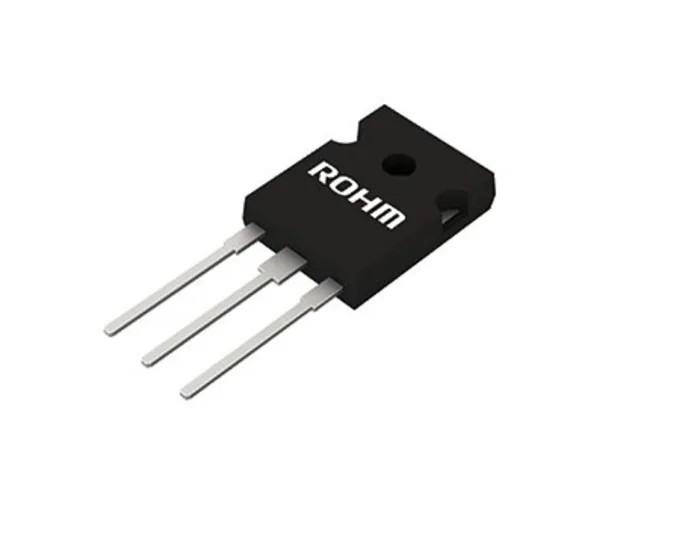

ROHM 650 V 30 A Rectifier & Schottky Diode Schottky 3-Pin TO-247N SCS230AE2GC11
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Model | SCS230AE2GC11 |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247N |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 650V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 300μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 400A |
| Maximum Forward Voltage Vf | 1.63V |
| Peak Reverse Recovery Time trr | 18ns |
Key Features
- Suitable for use in switch mode power supplies and inverters.
- Provides high-speed switching with short recovery time of 18 ns.
- Features a maximum forward voltage of 1.63 V for efficient operation.
- Rated for peak reverse repetitive voltage of 650 V and peak surge current of 400 A.
- Operates over a wide temperature range from -55°C to 175°C.
- Compliance with RoHS standards ensures environmental safety.
- Single diode configuration optimized for uninterruptible power supplies and EV chargers.
- Reliable through-hole mounting with TO-247N package facilitates easy integration.
Product Description
The ROHM SCS230AE2GC11 is a high-performance Schottky barrier diode designed to deliver reliable rectification in demanding applications. Featuring a maximum reverse repetitive voltage of 650 V and capable of handling a continuous forward current of 30 A, it is ideally suited for industrial and commercial applications including switch mode power supplies, uninterruptible power supplies, solar inverters, motor drives, air conditioners, and electric vehicle chargers.
This diode comes in a durable 3-pin TO-247N through-hole package, enabling robust mounting and excellent thermal management. The device offers a low forward voltage drop of 1.63 V, which contributes to higher efficiency and reduced power losses in circuits. Its peak reverse recovery time of just 18 nanoseconds ensures fast switching capabilities required for modern high-frequency power electronics.
Rated for peak non-repetitive forward surge currents of up to 400 A, the SCS230AE2GC11 ensures durability even in transient conditions. It operates reliably across a wide temperature range from -55°C to a maximum of 175°C, making it suitable for harsh operating environments.
With compliance to RoHS directives, this component meets environmental and safety standards, making it appropriate for sustainable product designs. Suitable for switch mode power supplies and solar inverter applications.
High-speed switching enabled by short recovery time. Low forward voltage reduces power dissipation and increases efficiency. Robust packaging supports thermal performance and mounting ease. Wide operating temperature range for diverse environments.
Compliance with RoHS ensures eco-friendly use. Ideal for electric vehicle charger circuits and motor drives.
Choose the ROHM SCS230AE2GC11 diode for your industrial and laboratory power conversion needs, ensuring reliable and efficient rectification. Explore more in the semiconductor category and other ROHM products here on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse repetitive voltage of the ROHM SCS230AE2GC11 is 650 V.
This diode is rated for a maximum continuous forward current of 30 A.
The maximum forward voltage drop for this diode is 1.63 V, contributing to its efficiency.
It can handle peak non-repetitive forward surge currents of up to 400 A.
The peak reverse recovery time for this model is 18 nanoseconds, enabling high-speed switching.
This diode operates reliably over a wide temperature range from -55°C to 175°C.
It features a through-hole mounting type, which facilitates easy integration into circuits.
This model is packaged in a TO-247N format, which supports robust mounting and thermal management.
Yes, it complies with RoHS standards, ensuring it meets environmental safety requirements.
It is suitable for use in switch mode power supplies, uninterruptible power supplies, and electric vehicle chargers.
This diode features a pin count of 3, making it compatible with various circuit designs.
The peak reverse current for this model is rated at 300 μA.
