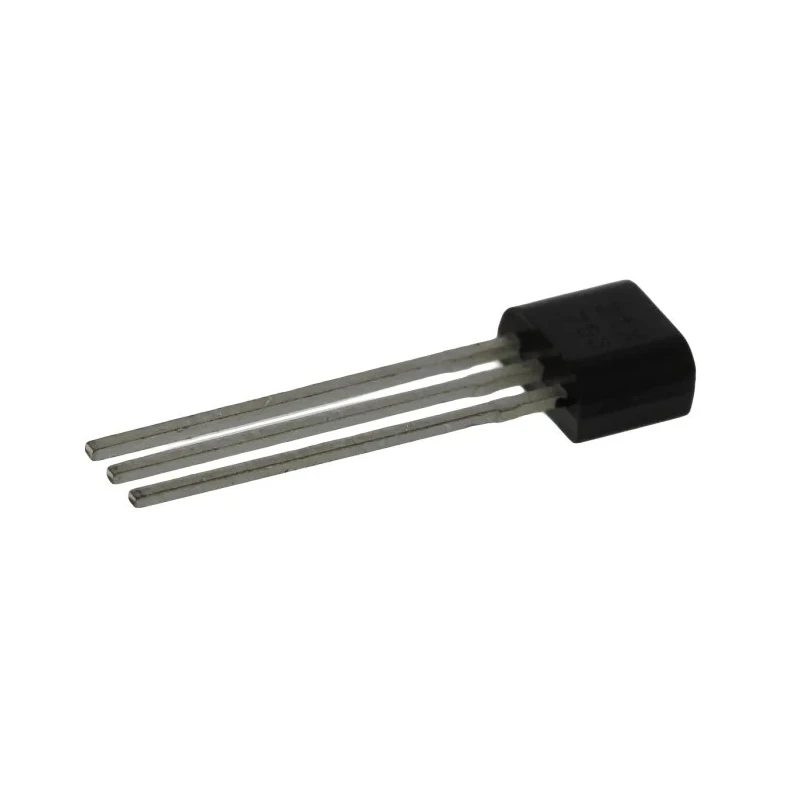

DiodesZetex PNP Transistor TO-92 3-Pin, 2 A Collector Current, 100 V Collector Emitter Voltage ZTX753

DiodesZetex ZTX753 is a PNP bipolar transistor housed in a TO-92 3-pin package, designed for general purpose applications where a collector current up to 2 A and collector emitter voltage of 100 V are required. This transistor operates reliably over a temperature range of -55°C to 200°C making it suitable for industrial, electronic, and power supply projects.

The transistor features a minimum DC current gain (hFE) of 100, with a maximum power dissipation rating of 1 watt, allowing it to handle moderate power loads efficiently in switching and amplification circuits. Its transition frequency of 140 MHz supports fast switching applications.

Designed for thru-hole mounting, the ZTX753 is easy to integrate into printed circuit boards, providing stable performance in discrete semiconductor and electronic component assemblies. Compliant with RoHS environmental standards, it offers assured quality and safety.

Maximum DC collector current: 2 A. Collector emitter voltage rating: 100 V. TO-92 package with 3 pins, through-hole mount. Single PNP transistor configuration. Minimum current gain (hFE) of 100. Maximum power dissipation of 1 watt.

Operating temperature range from -55°C to 200°C. High transition frequency of 140 MHz for fast switching. RoHS compliant for environmental safety.

This transistor is widely used in industrial electronics, power management systems, control circuits, and general purpose amplification. Its robust construction and reliable specifications make it an essential component for engineers and technicians designing electronic assemblies.
