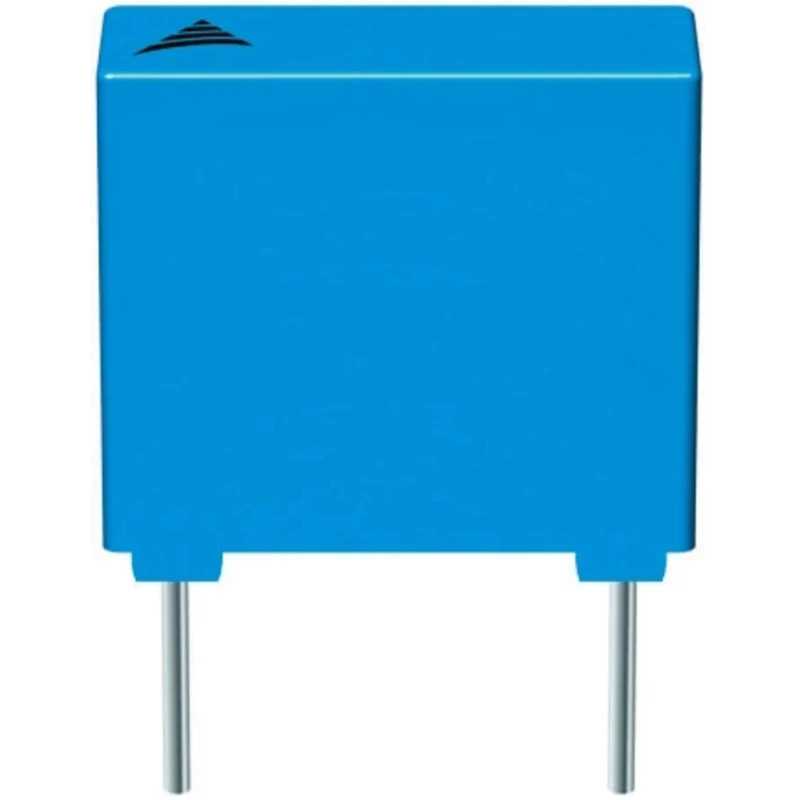

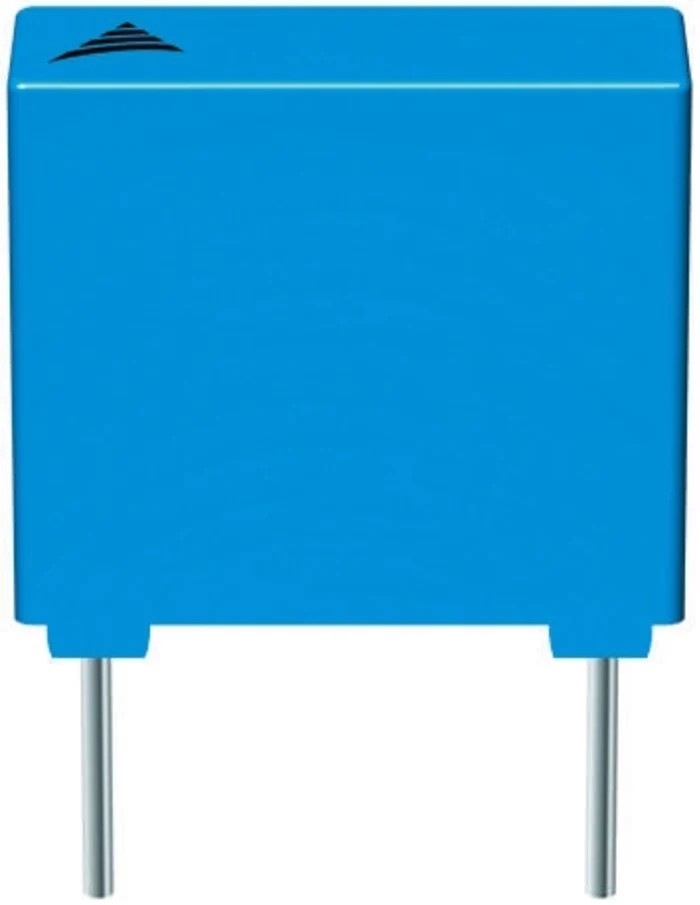

TDK Film Capacitor 22 nF 300V AC 300 V DC Through Hole 2 Pins B32022A3223M000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Operating Temperature | -40 → 110 °C |
| Height | 12mm |
| Length | 18mm |
| Model | B32022A3223M000 |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | B32022 |
| Maximum Operating Temperature | 110°C |
| Capacitance | 22nF |
| Standards/Approvals | CSA, UL |
| Pin Count | 2 |
| Rated AC Voltage | 300V ac |
| Rated DC Voltage | 300V dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.8mm |
Key Features
- Rated AC voltage of 300V and DC voltage of 300V suitable for various electronic circuits.
- Polypropylene construction with plastic case and epoxy resin sealing ensures durability and reliability.
- Compact size with dimensions 18mm length, 6mm width, and 12mm height.
- Operating temperature range from -40°C to 110°C for stable performance in harsh environments.
- Lead pitch of 15mm and lead diameter of 0.8mm for easy through-hole mounting.
- Conforms to standards EN 132400 / IEC 60384-14, UL1414, UL1283, CSA C22.2 No.1, and CSA C22.2 No.8.
- Excellent self-healing properties and high voltage capability suitable for Y2 class interference suppression.
- Ideal for industrial, electronic, and power supply applications requiring reliable film capacitors.
Product Description
TDK B32022A3223M000 is a premium Film Capacitor with a capacitance of 22 nF and rated voltages of 300V AC and 300V DC, designed for through-hole mounting with 2 pins.
Constructed with polypropylene dielectric and encased in a plastic housing sealed by epoxy resin, this capacitor provides excellent durability and high voltage tolerance, suitable for industrial and electronic applications such as interference suppression and line to ground circuits.
It operates reliably over a wide temperature range from -40°C to 110°C while maintaining good self-healing characteristics, ensuring longevity and consistent performance.
Technical specifications include a lead pitch of 15mm, lead diameter of 0.8mm, and compact dimensions of 18mm length, 6mm width, and 12mm height. The device is compliant with multiple standards including EN 132400, IEC 60384-14, UL1414, UL1283, and CSA certifications, guaranteeing safety and quality.
This capacitor is suitable for applications in electronic component assemblies, power supply units, and any industrial equipment requiring reliable film capacitor solutions. Rated AC voltage of 300V and DC voltage of 300V.
Polypropylene construction with plastic case and epoxy sealing. Compact size: 18mm x 6mm x 12mm dimensions. Operating temperature: -40°C to 110°C. Lead pitch: 15mm; Lead diameter: 0.8mm. Certified to EN, IEC, UL, CSA standards.
Excellent self-healing and high voltage capability. Ideal for interference suppression and line to ground applications. Explore a wide range of electronic components and Film Capacitors on EnvMart for industrial, laboratory, and commercial usage.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 22 nF.
It has a rated AC voltage of 300V and a rated DC voltage of 300V.
The operating temperature range is from -40°C to 110°C.
The dimensions are 18mm in length, 6mm in width, and 12mm in height.
The lead pitch is 15mm and the lead diameter is 0.8mm.
This model is designed for through-hole mounting with 2 pins.
It conforms to standards EN 132400, IEC 60384-14, UL1414, UL1283, and CSA C22.2 No.1 and No.8.
It is constructed with a polypropylene dielectric, encased in a plastic housing sealed by epoxy resin.
It is suitable for industrial, electronic, and power supply applications, particularly for interference suppression and line-to-ground circuits.
This model has excellent self-healing properties, enhancing its longevity and performance.
The series designation for this capacitor is B32022.
The country of origin for this capacitor is India.
