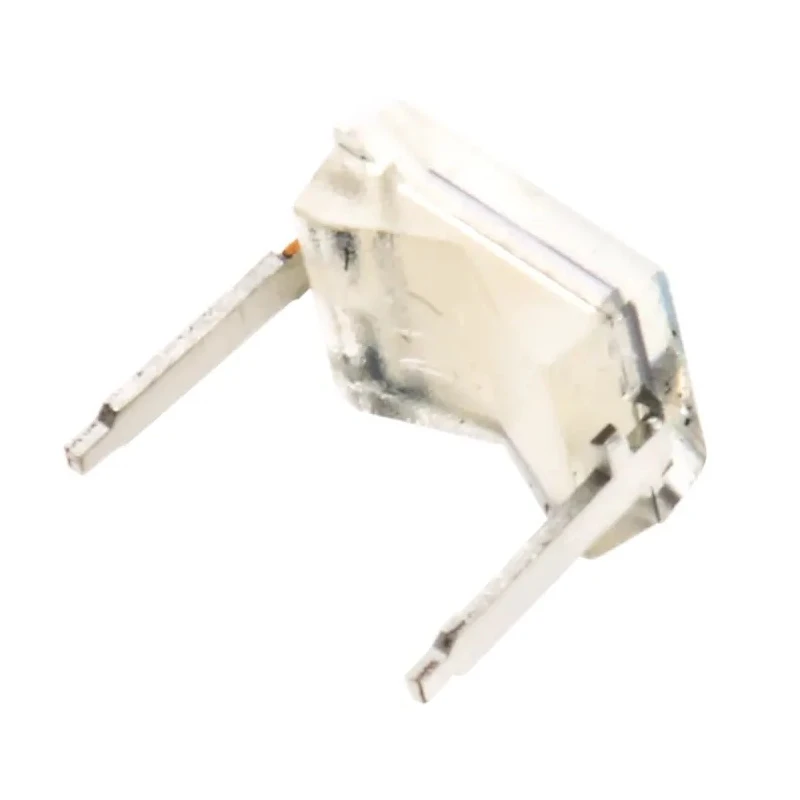

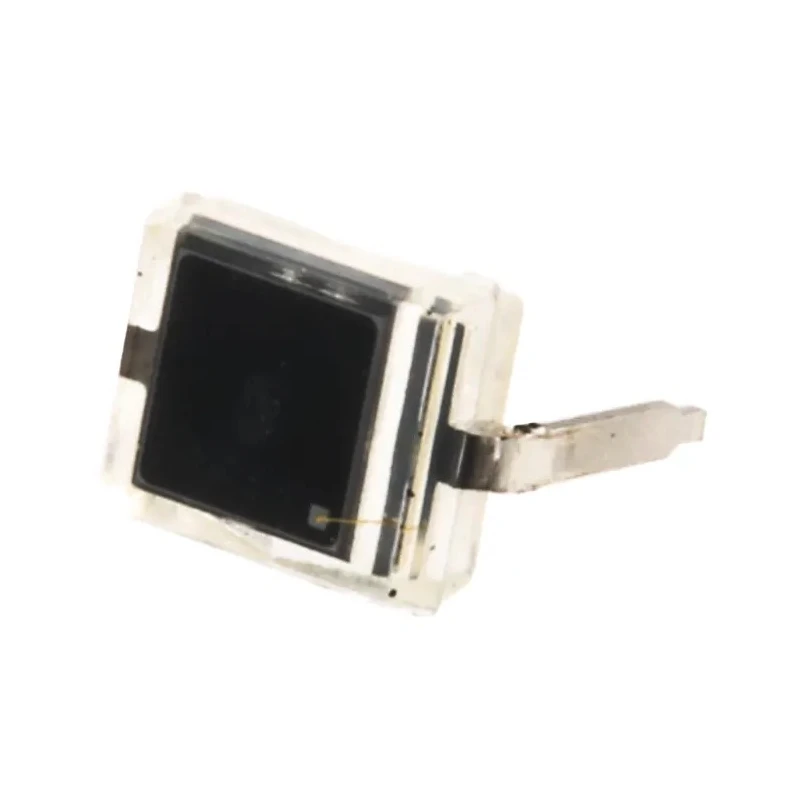

ams OSRAM Infrared Visible Light Photodiode Through Hole DIP Package BPW 34
Specifications
| Country of Origin | India |
|---|---|
| Brand | ams OSRAM |
| Height | 2.2mm |
| Length | 4.5mm |
| Model | BPW 34 |
| Packaging | Tape & Reel |
| Width | 4mm |
| Mount Type | Through Hole |
| Short Circuit Current | 25μA |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Polarity | Reverse |
| Dark Current | 2nA |
| Open Circuit Voltage | 330mV |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Typical Fall Time | 20ns |
| Wavelength of Peak Sensitivity | 850nm |
| Spectrums Detected | Infrared, Visible Light |
| Breakdown Voltage | 16V |
| Minimum Wavelength Detected | 400nm |
| Maximum Wavelength Detected | 1100nm |
| Angle of Half Sensitivity | 60 ° |
Key Features
- Detects infrared and visible light spectrums ensuring broad wavelength sensitivity range.
- Features a peak sensitivity wavelength at 850nm for enhanced photodetection.
- Equipped with a through-hole DIP package for easy PCB mounting.
- Offers a tape and reel packaging for convenient automated assembly.
- Contains 2 pins with reverse polarity configuration.
- Capable of operating within a wavelength range from 400nm to 1100nm.
- Provides fast rise and fall times of 20ns each for rapid signal response.
- Ensures low dark current of 2nA and short circuit current of 25μA for efficient detection.
Product Description
ams OSRAM BPW 34 is a high-performance infrared and visible light photodiode housed in a through-hole DIP plastic package optimized for robust photodetection applications. Designed for industrial and electronics environments, it operates efficiently within a temperature range of -40°C to 100°C, making it suitable for demanding and variable conditions.
This photodiode features a radiant sensitive area of 2.65 x 2.65 mm² and detects wavelengths from 400nm up to 1100nm, with peak sensitivity at 850nm. Its 60° angle of half sensitivity enables accurate sensing over a wide field of view. The device exhibits excellent signal clarity with typical rise and fall times of 20ns and a low dark current of 2nA, contributing to minimal noise and high precision.
Its through-hole DIP package with two pins facilitates easy and secure mounting on standard printed circuit boards. Packaged in tape and reel format, it supports automated manufacturing processes, enhancing assembly efficiency.
The BPW 34 photodiode is widely employed in applications such as photointerrupters, infrared remote controls, automotive sensors, headset devices, and other optoelectronic circuits requiring reliable infrared and visible light detection.
Detects both infrared and visible light spectrums effectively. Has a peak wavelength sensitivity at 850nm for maximum responsiveness. Features a compact DIP through-hole package with standard pin configuration. Supports operation in temperatures from -40°C up to 100°C for reliability.
Comes RoHS compliant ensuring environmentally friendly material composition. Exhibits low dark current and short circuit current, promoting efficient photodetection. Offers fast switching times with 20ns rise and fall times.
Designed for diverse applications including automotive and consumer electronics.
Choose the ams OSRAM BPW 34 Photodiode for precise and efficient infrared and visible light detection needs in industrial and electronic system designs. Explore more in our Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The BPW 34 photodiode has a peak sensitivity wavelength of 850nm, enhancing its photodetection capabilities.
It operates within a wavelength range from 400nm to 1100nm, allowing it to detect both infrared and visible light spectrums.
This model has a height of 2.2mm, a length of 4.5mm, and a width of 4mm, making it compact for various applications.
It is housed in a through-hole DIP package, which facilitates easy mounting on printed circuit boards.
The maximum operating temperature for the BPW 34 is 100°C, ensuring reliability in various environments.
The photodiode exhibits a low dark current of 2nA, contributing to minimal noise during operation.
The BPW 34 features typical rise and fall times of 20ns each, allowing for rapid signal response.
The short circuit current rating for this model is 25μA, which supports efficient photodetection.
The BPW 34 has an angle of half sensitivity of 60°, enabling accurate sensing over a wide field of view.
Yes, the BPW 34 is RoHS compliant, ensuring it is made from environmentally friendly materials.
This photodiode is widely employed in applications such as photointerrupters, infrared remote controls, automotive sensors, and headset devices.
It comes packaged in tape and reel format, which supports automated manufacturing processes for enhanced assembly efficiency.
