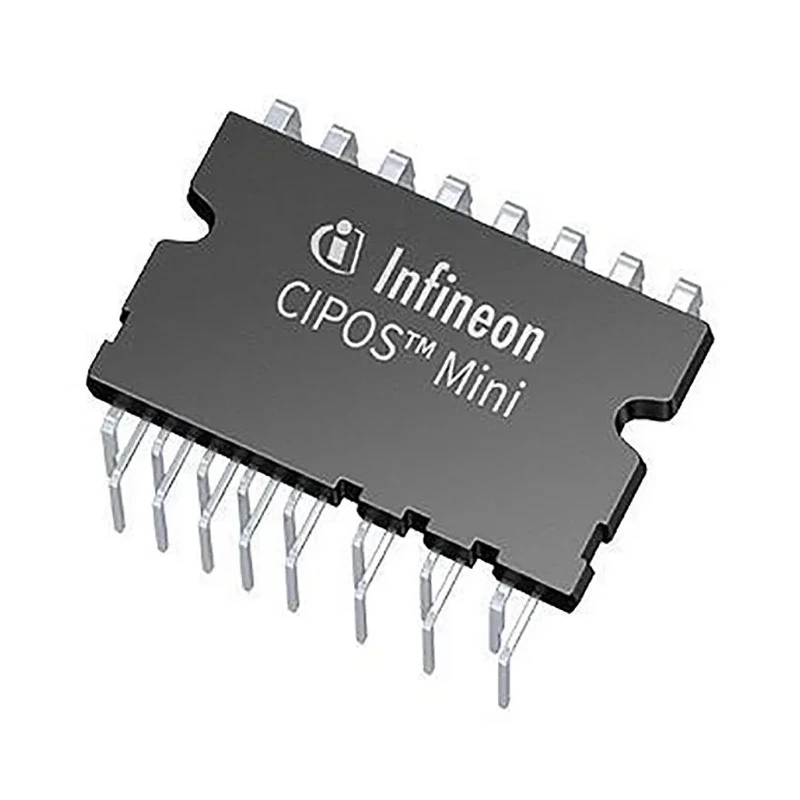

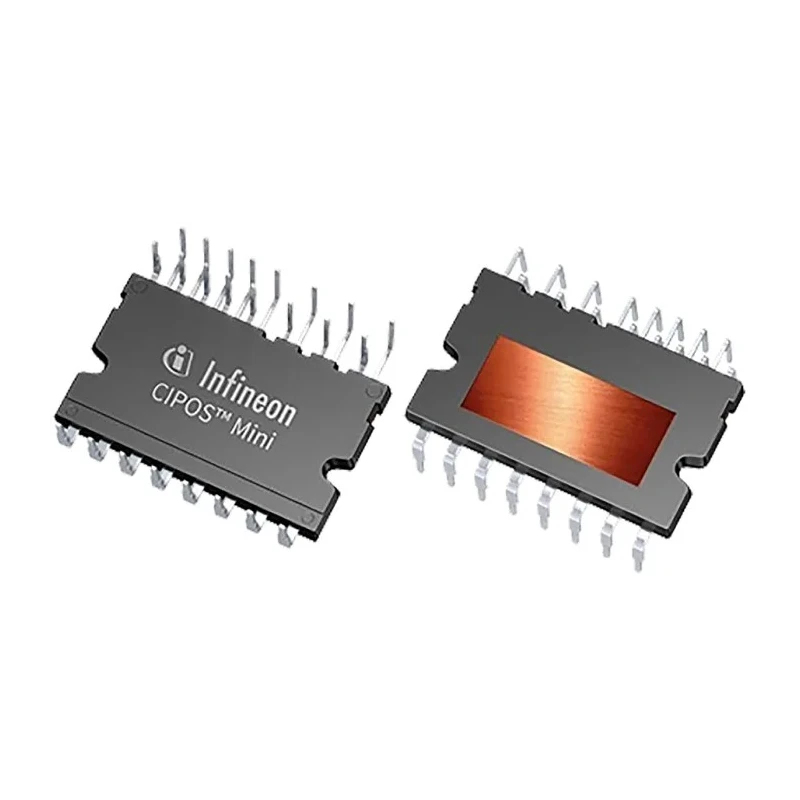

Infineon AC Motor Permanent Magnet Motor Driver IC 2.05 V 30 A 24-Pin DIP IKCM15L60GAXKMA1
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | Infineon |
| Height | 3.1mm |
| Length | 36mm |
| Model | IKCM15L60GAXKMA1 |
| Width | 21mm |
| Motor Type | AC Motor, Permanent Magnet |
| Mount Type | Through Hole |
| Series | CIPOS |
| Configuration | 3 Phase |
| Output Current | 15A |
| Maximum Operating Temperature | 150°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 24 |
| Maximum Collector Emitter Voltage Vceo | 2.05V |
| Automotive Standard | AEC-Q101 |
| Maximum Supply Voltage | 450V |
| Minimum Supply Voltage | 0mV |
| Supply Current | 900μA |
| Maximum IGBT Collector Current | 30A |
| Typical Switching Frequency | 20kHz |
| Inverter Power Rating | 1600W |
Key Features
- Designed for 3 phase AC permanent magnet motor control applications.
- Maximum inverter power rating of 1600 W for reliable energy efficient operation.
- Operates within a temperature range of -40°C to 150°C for industrial robustness.
- Includes automotive grade AEC-Q101 certification for enhanced reliability.
- Typical switching frequency of 20 kHz reduces electromagnetic interference and enhances performance.
- Low supply current at 900 μA improves power efficiency in motor control systems.
- Package configured in a 24-pin dual in-line package (DIP) for easy integration.
- Manufactured in Korea, Republic Of with high-quality CIPOS series technology.
Product Description
Infineon IKCM15L60GAXKMA1 is an advanced AC motor driver IC designed for permanent magnet motor control. Featuring a 3-phase configuration, this intelligent power module from the CIPOS family delivers a maximum IGBT collector current of 30 A and maximum collector emitter voltage of 2.05 V. The 24-pin DIP package supports through-hole mounting, making it compatible with various PCB designs for industrial and commercial motor control applications.
With an inverter power rating of 1600 W and operating temperature range from -40°C to 150°C, this motor driver IC ensures high efficiency and rugged performance under harsh conditions, ideal for manufacturing, HVAC systems, water treatment, and fan or pump motor drives. The automotive-standard AEC-Q101 certification guarantees reliability for automotive and industrial use cases.
The typical switching frequency of 20 kHz allows for smooth motor operation while minimizing electromagnetic interference. Operating at a low supply current of 900 μA improves system energy efficiency. Its compact size - 36 mm length, 21 mm width, and 3.1 mm height - supports integration in space-constrained environments.
Infineon's CIPOS intelligent power modules streamline motor system design by combining power electronics and control functions, thus delivering enhanced energy efficiency and system reliability in diverse industrial, laboratory, HVAC, and manufacturing scenarios.
Designed for 3 phase AC permanent magnet motors. Maximum IGBT collector current of 30 A. Maximum collector emitter voltage of 2.05 V. Through hole DIP package with 24 pins. Operating temperatures from -40°C to 150°C. Inverter power rating of 1600 W.
Automotive grade AEC-Q101 certified. Typical switching frequency of 20 kHz. Low supply current of 900 μA. Manufactured in Korea, Republic Of. Explore a wide range of Motor Driver ICs and power management components at EnvMart to support your industrial and commercial electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum inverter power rating of this model is 1600 W, allowing for reliable energy-efficient operation in motor control applications.
It operates within a temperature range of -40°C to 150°C, ensuring robustness in industrial environments.
The typical switching frequency is 20 kHz, which helps reduce electromagnetic interference and enhances performance.
This driver is specifically designed for 3-phase AC permanent magnet motors, making it suitable for various motor control applications.
The maximum IGBT collector current for this motor driver IC is 30 A, providing sufficient power handling capability.
The dimensions of this model are 36 mm in length, 21 mm in width, and 3.1 mm in height, making it compact for integration.
It operates with a low supply current of 900 μA, which improves power efficiency in motor control systems.
This model is packaged in a 24-pin dual in-line package (DIP), supporting through-hole mounting for easy integration.
Yes, it includes automotive grade AEC-Q101 certification, which enhances its reliability for automotive and industrial applications.
The maximum collector emitter voltage (Vceo) for this model is 2.05 V, allowing it to handle specific voltage requirements in motor control.
This driver is suitable for applications in manufacturing, HVAC systems, water treatment, and fan or pump motor drives.
The minimum supply voltage for this model is 0 mV, indicating it can operate from a very low voltage level.
