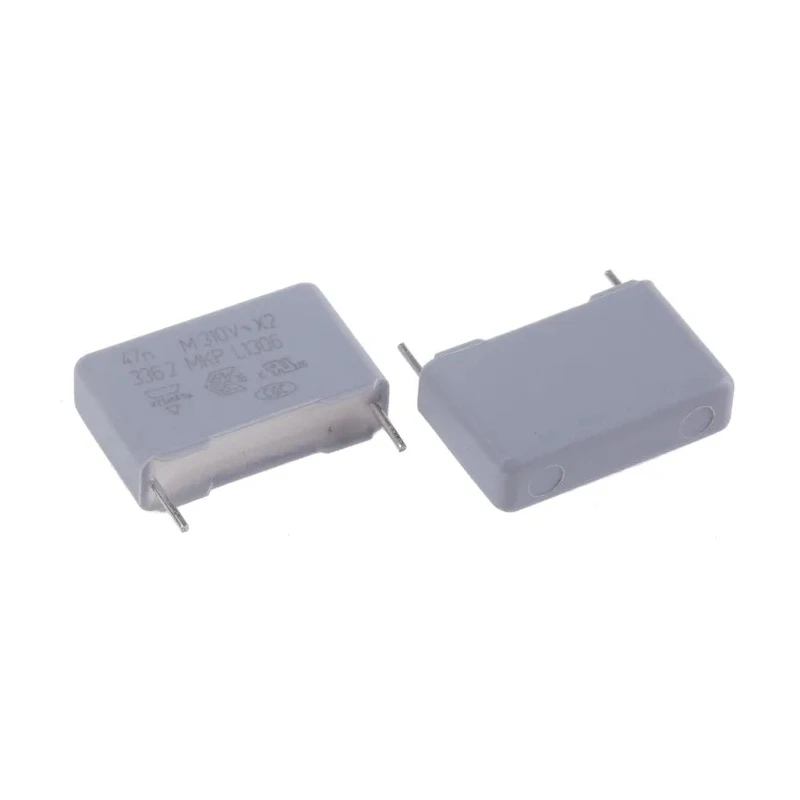

Vishay MKP 336 Film Capacitor X2, ±20% Tolerance, 47 nF, 630V DC, 310V AC, Through Hole BFC233620473

Free Delivery in India | Lowest Global Shipping Charges

Vishay MKP 336 Film Capacitor X2, ±20% Tolerance, 47 nF, 630V DC, 310V AC, Through Hole BFC233620473

Name: Vishay MKP 336 Film Capacitor X2, ±20% Tolerance, 47 nF, 630V DC, 310V AC, Through Hole BFC233620473
Brand: Vishay
SKU: 86773
Price: 0.97 USD
Availability: InStock



Category Film Capacitor Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	11mm
Length	17.5mm
Model	BFC233620473
Packaging	Tape & Reel
Width	5mm
Mount Type	Through Hole
Series	MKP 336
Maximum Operating Temperature	110°C
Tolerance	±20 %
Capacitance	47nF
Minimum Operating Temperature	-55°C
Terminal type	Through Hole
Rated AC Voltage	310V ac
Rated DC Voltage	630V dc
Lead Pitch	15mm
Lead Diameter	0.6mm
Suppression Class	X2
B81133 capacitor,47nF 275VacBrand	Epcos

Key Features

Offers a nominal capacitance of 47 nF for reliable circuit performance.
Rated for operation at up to 630V DC and 310V AC, suitable for high-voltage applications.
±20% tolerance provides flexibility in design and ensures stable performance.
Through hole mounting and 15 mm lead pitch facilitate easy PCB integration.
Encapsulated design in self-extinguishing material enhances safety and durability.
Operates within a wide temperature range from -55°C to 110°C, ensuring stability in various environments.
Meets suppression class X2 for interference suppression across mains supply lines.

Product Description

Vishay BFC233620473 MKP 336 Film Capacitor X2 is a high-quality electronic component designed for interference suppression and AC power line filtering applications. This capacitor features a nominal capacitance of 47 nF, a rated DC voltage of 630V, and a rated AC voltage of 310V, making it well-suited for protection and filtering in power circuits.

The MKP 336 series utilizes a wound cell of metallized polypropylene, encapsulated in flame-retardant material for enhanced safety. Its ±20% tolerance allows designers flexibility in matching circuit requirements, and the suppression class X2 designation ensures safe operation across mains supply connections. The robust through hole mounting facilitates reliable installation on printed circuit boards, aided by a standard 15 mm lead pitch and durable 0.6 mm lead diameter. The overall dimensions of 17.5 mm length, 5 mm width, and 11 mm height minimize required PCB space.

The capacitor operates across a broad temperature range from -55°C to 110°C, maintaining consistent performance under demanding conditions. It is designed for use in EMI/RFI suppression, appliance mains, industrial equipment, and controllers. Compliance with UL 60384-14, IEC 60384-14:2013, IEC 60065, EN 60384-14:2013, CSA E384-14, and other recognized international standards provides added reliability and trusted performance in critical applications.

This Vishay MKP 336 product is supplied in tape and reel packaging for easy automated assembly and inventory handling. Automotive standards do not apply, ensuring suitability for commercial and industrial use where X2 safety class interference suppression is required. Typical applications include AC power input filtering, surge protection, and equipment safety compliance.

The MKP 336 is engineered for electrical and electronics manufacturing, commercial power supplies, industrial controller boards, and laboratory instrumentation. The encapsulated structure and self-extinguishing material provide dependable operation in high-voltage environments.

Supported by a wide array of international certifications, it is a proven choice for designers aiming for rigorous compliance. Browse more Vishay MKP series capacitors, and discover advanced suppression components in the Film Capacitor category on EnvMart.
