| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 930μm |
| Length | 2.92mm |
| Model | BSS138 |
| Width | 1.3mm |
| Mount Type | Surface |
| Series | BSS138 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101, AEC-Q200, AEC-Q100 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 220mA |
| Maximum Drain Source Voltage Vds | 50V |
| Maximum Drain Source Resistance Rds | 3.5Ω |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 360mW |
| Typical Gate Charge Qg @ Vgs | 1.7nC |
| Maximum Gate Source Voltage Vgs | -20, +20V |
| Forward Voltage Vf | 800mV |

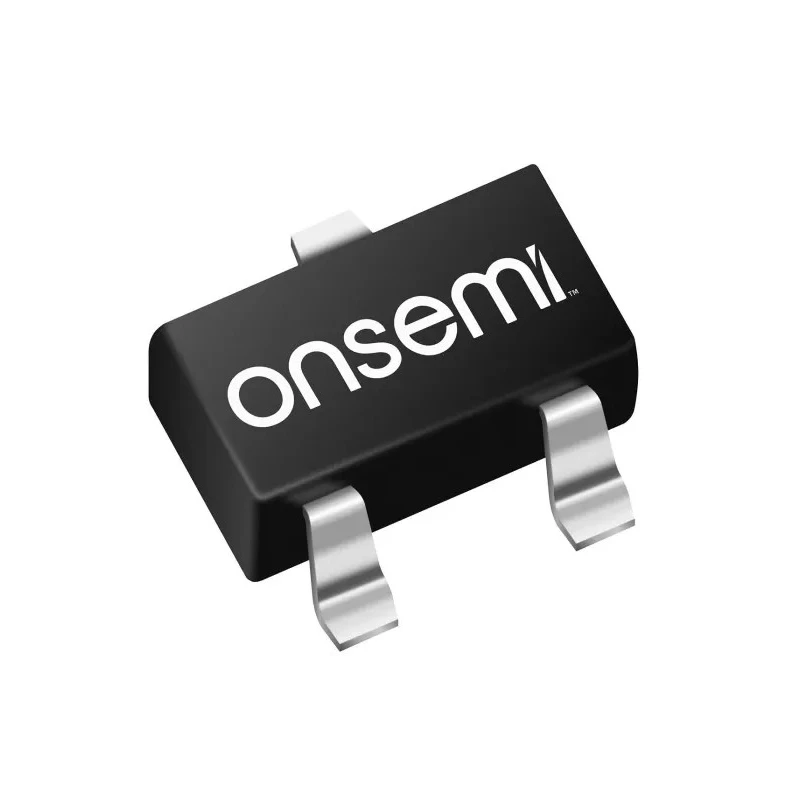

onsemi BSS138 is a N-Channel Enhancement Mode MOSFET designed for surface mounting applications. This semiconductor device features a low on-resistance and fast switching capability enabled by Fairchild's proprietary DMOS technology, providing rugged and reliable performance for electronic circuits.
With a maximum continuous drain current of 220 mA and a maximum drain-source voltage of 50 V, the BSS138 delivers efficient switching performance suitable for various industrial, automotive, and consumer electronics applications.
The 3-pin SOT-23 package offers a compact footprint ideal for PCB assemblies requiring space optimization. The MOSFET's typical gate charge of 1.7 nC supports high-frequency operation, while its maximum power dissipation of 360 mW ensures durability.
Operating temperature from -55°C to 150°C allows deployment in harsh environments. Compliance with automotive standards AEC-Q101, AEC-Q200, and AEC-Q100 confirms the device's robustness for automotive electronics.
The device uses enhancement mode technology for efficient switching performance. Maximum power dissipation is rated at 360 mW. Typical gate charge is low at 1.7 nC, enabling fast switching. Operating temperature ranges from -55°C to 150°C, suitable for various industrial environments.
Maximum drain-source resistance is 3.5 Ω ensuring minimal power loss during operation. Package dimensions are compact with a length of 2.92 mm, width of 1.3 mm, and height of 930 μm. Automotive standards AEC-Q101, AEC-Q200, and AEC-Q100 compliant for high reliability.
This MOSFET is widely employed in industrial control systems, automotive electronics, consumer devices, and power management circuits where reliable switching and low power loss are critical.
