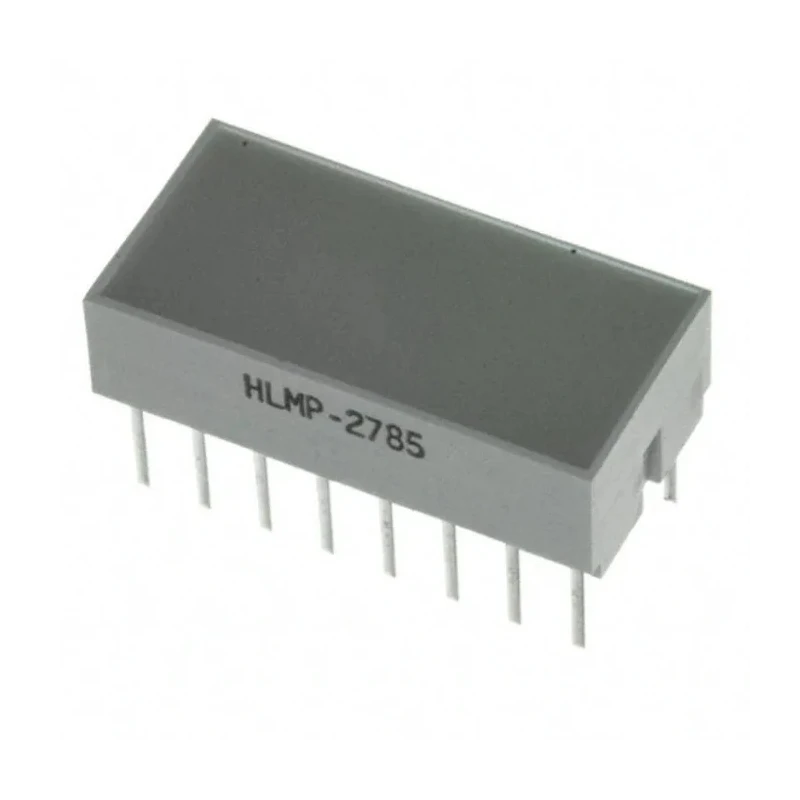

Broadcom Light Bar LED Display Yellow 70mcd HLMP-2785-EF000
Specifications
| Country of Origin | India |
|---|---|
| Display Type | Light Bar |
| Brand | Broadcom |
| Model | HLMP-2785-EF000 |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 1 |
| External Width | 20.3mm |
| External Depth | 6.2mm |
| External Height | 10.2mm |
| Luminous Intensity | 70mcd |
| Standards/Approvals | RoHS |
| LED Colour | Yellow |
| Dominant Wavelength | 585nm |
| Colour of Face | White |
| Forward Voltage | 2.1V |
| Forward Current | 20mA |
| YELLOW LED LIGHT BARBrand | NEUTRAL |
Key Features
- The LED display features a single segment light bar configuration.
- It emits yellow light with a dominant wavelength of 585nm.
- The device is designed for through-hole mounting with dimensions 20.3mm width, 10.2mm height, and 6.2mm depth.
- It operates within a temperature range of -40°C to 85°C ensuring durability in harsh conditions.
- Forward voltage is 2.1V with a forward current of 20mA for efficient power consumption.
- The white face color enhances visibility and uniform light emission.
- Complies with RoHS standards for environmental safety and sustainability.
- Ideal for telecommunications indicators, front panel status displays, and bar graph applications.
Product Description
The Broadcom HLMP-2785-EF000 Light Bar LED Display Yellow 70mcd is a high-quality single-segment LED designed for clear and consistent illumination in various electronic equipment.
Constructed with a rectangular light emitting surface, this LED display offers a uniform light area that provides excellent on/off contrast, making it suitable for status indicators and bar graphs in telecommunications and electronic control panels.
Its through-hole mount ensures easy integration on printed circuit boards. The device dimensions are 20.3mm in width, 10.2mm in height, and 6.2mm in depth, suitable for compact designs.
Operating reliably across a wide temperature spectrum from -40°C to 85°C, this LED display is built to withstand tough operational settings. The LED emits a yellow light with a dominant wavelength of 585nm and brightness of 70mcd, paired with a white face for enhanced visibility.
The LED Light Bar features a single segment for focused light emission. Forward voltage rated at 2.1V supports efficient energy use within circuits. Forward current specification of 20mA allows for stable and controlled brightness.
Compliance with RoHS standards assures environmental compliance and safety. Flush mountable with options for X-Y stacking to tailor installation configurations. Ideal for use in telecommunications, front panel indicators, and industrial status applications.
Rectangular light emitting surface provides uniform illumination. Observe anti-static precautions during handling to maintain device integrity.
This product is new and originates from India, suitable for purchase through EnvMart's industrial electronics category. Explore more advanced LED Display components within our extensive catalog for varied electronic applications.
