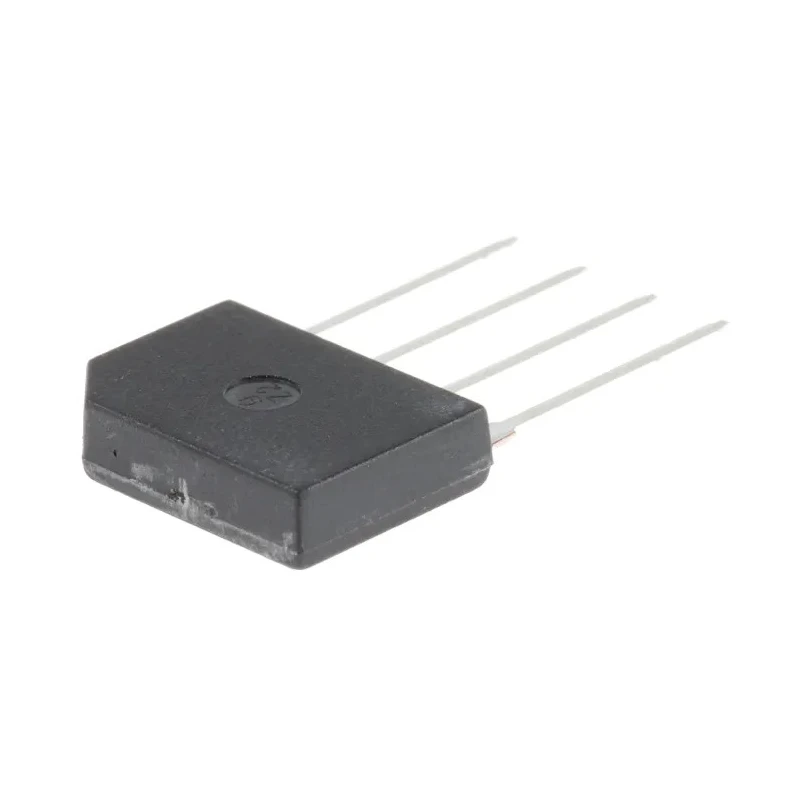

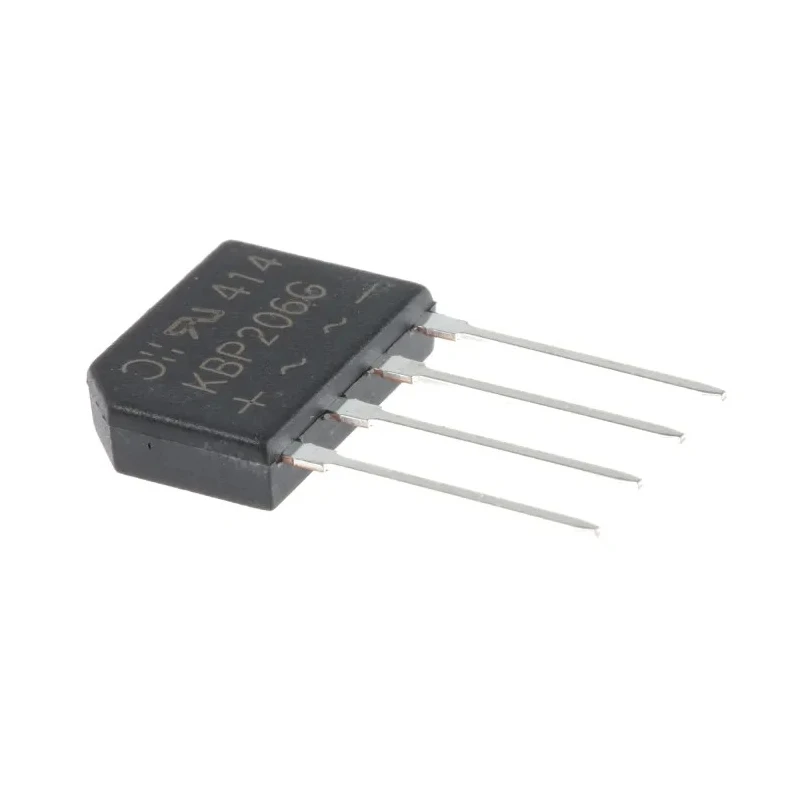

DiodesZetex Bridge Rectifier 600 V 65 A 4-Pin Through Hole KBP206G

Name: DiodesZetex Bridge Rectifier 600 V 65 A 4-Pin Through Hole KBP206G
Brand: DiodesZetex
SKU: 140014
Price: 0.47 USD
Availability: InStock



Category Bridge Rectifier Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	10.6mm
Length	14.75mm
Model	KBP206G
Width	3.65mm
Mount Type	Through Hole
Series	KBP
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	KBP
Minimum Operating Temperature	-65°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	600V
Peak Reverse Current Ir	500μA
Peak Non-Repetitive Forward Surge Current Ifsm	65A
Forward Current If	2A
Peak Forward Voltage Vf	1.1V

Key Features

Supports peak reverse repetitive voltage of 600 V for robust operation.
Features a maximum operating temperature of 150°C and minimum temperature of -65°C for durable performance.
Through hole mount type ensures secure PCB installation.
Low peak forward voltage of 1.1 V reduces power loss.
Compact dimensions of 14.75 mm length, 10.6 mm height, and 3.65 mm width.
Peak non-repetitive forward surge current of 65 A for transient robustness.
Low peak reverse current of 500 μA improves efficiency.
Ideal for PCB mounting in diverse electrical and electronic applications.

Product Description

DiodesZetex KBP206G Bridge Rectifier is a discrete semiconductor device designed to convert alternating current (AC) to direct current (DC), suitable for electronic and industrial applications requiring reliable power rectification. It supports a peak reverse repetitive voltage of 600 V and a forward current of 2 A, ensuring stable performance in single-phase circuits. The device features a robust temperature range from -65°C to 150°C and a peak non-repetitive forward surge current of 65 A, making it highly resilient under surge conditions.

This Bridge Rectifier adopts a through hole mounting type with a compact KBP package. Its 4-pin configuration is optimized for printed circuit board (PCB) installations, providing straightforward assembly and reliable electrical connection. A peak forward voltage of 1.1 V and low reverse leakage current (500 μA) contribute to efficient power conversion with minimal losses.

The KBP206G series is ideal for use in power supplies, motor drives, industrial controls, and other semiconductor-based circuitry requiring durable bridge rectification. Its compact size and high dielectric strength of 1500 V RMS ensure reliable isolation and safety during operation.

Supports peak reverse repetitive voltage of 600 V. Forward current rated at 2 A with 65 A surge capacity. Wide operating temperature range from -65°C to 150°C. Low peak forward voltage of 1.1 V for efficiency. Compact dimensions suitable for PCB mounting.

4-pin single phase configuration for precise circuit integration. Manufactured with high-quality materials ensuring long service life. Ideal for electronic, industrial, and power rectification applications. Includes robust KBP packaging for enhanced mechanical stability.

This product is new and made in China. It offers a reliable solution for converting AC input to a DC output with stable performance and efficient electrical characteristics. Suitable for industrial, electronic component manufacturing, and power supply design contexts. Available through EnvMart's broad catalog of semiconductor components.
