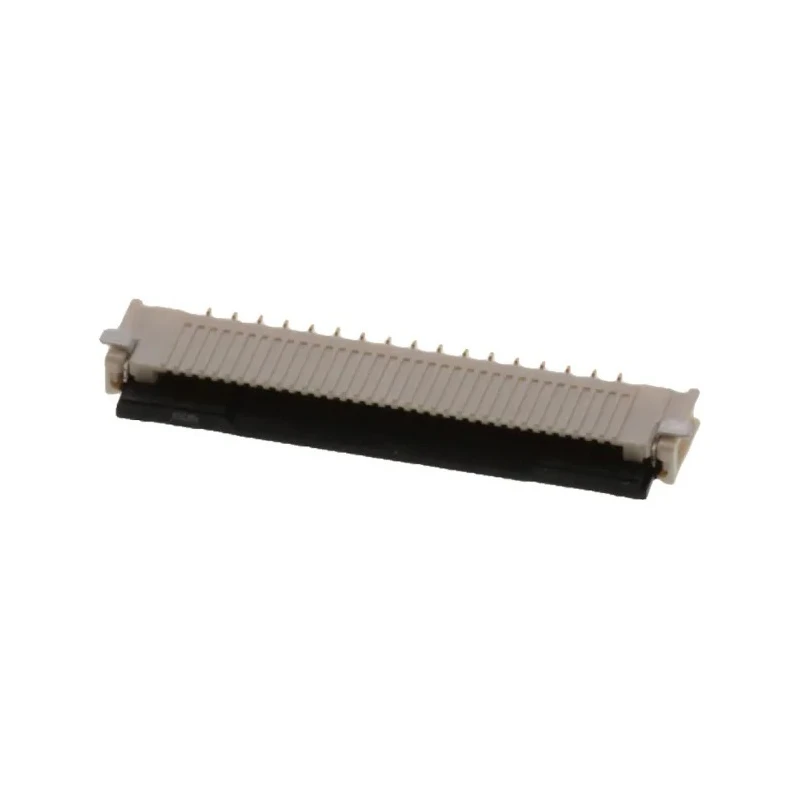

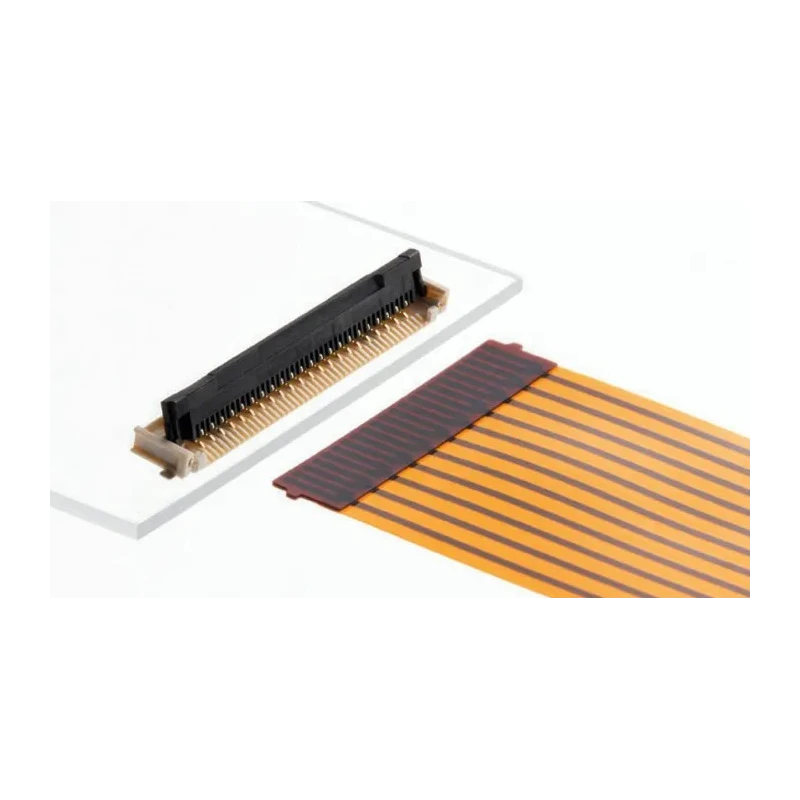

Molex 1 mm Pitch 17 Way Right Angle Male FPC Connector, Solder Termination, ZIF Insertion, Phosphor Bronze 200528-0170

The Molex 200528-0170 is a high-quality 1 mm pitch, 17 way right angle male FPC connector designed for reliable wire-to-board connections on printed circuit boards. This connector uses solder termination and phosphor bronze contacts with gold over nickel plating, which ensures superior electrical reliability and corrosion resistance.

The housing is constructed from liquid crystal polymer, providing excellent durability and flexibility for industrial use. Its zero insertion force (ZIF) bottom contact allows for easy and damage-free cable insertion, making assembly and maintenance simpler and faster.

The connector supports operating voltages up to 50 V AC/DC and supports a current of 500mA. It functions efficiently over a wide temperature range from -40°C to 105°C, making it suitable for demanding industrial, electronic, and commercial applications.

The right angle orientation and cable ear-tab locking mechanism offer secure cable alignment and retention, minimizing connection issues. The surface mounting style supports convenient and time-saving installation on printed circuit boards, with a compact, low-profile design to maximize space efficiency in tight enclosures.

Phosphor bronze contact material with gold over nickel plating for reliable electrical connections. Liquid crystal polymer housing ensures durability and flexibility. Zero insertion force (ZIF) design simplifies cable insertion and repeated cycling.

Wide operating temperature from -40°C to 105°C supports diverse industrial environments. Cable ear-tab locking provides high retention force and proper cable alignment. Surface mounting type allows easy PCB assembly and compact low-profile design.

Supports 17 contacts with 1 mm pitch for precise and dense circuit connections.

This Molex FPC Connector is well suited to various applications including printers, copiers, audio devices, displays, and flat-screen televisions, where compact, durable, and reliable cable connections are essential. It is a component of the Molex 200528 series, offering Easy-On assembly and high-quality contact design for performance and durability.
