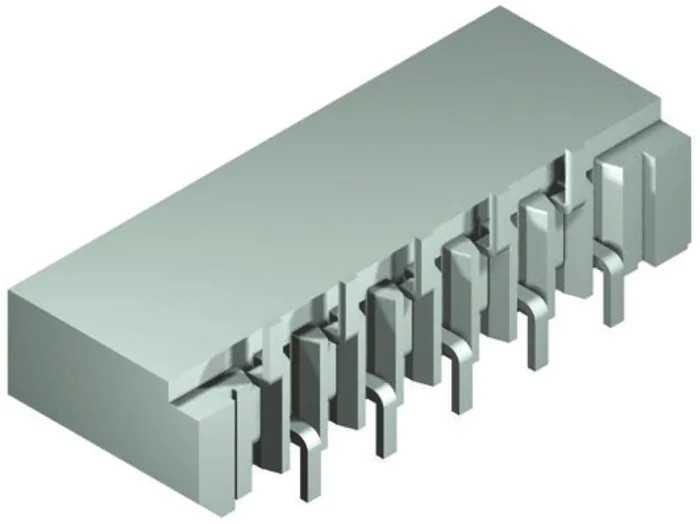

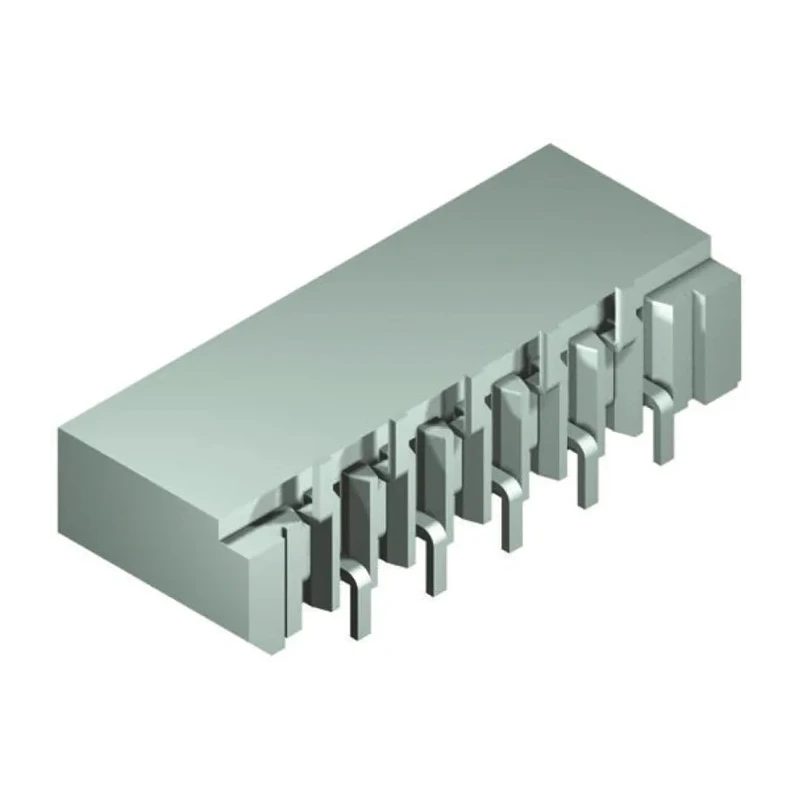

Molex 1 mm Pitch 11 Way Straight Female FPC Connector, Solder Termination, Polysulfone Housing, 52808-1171
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 125, 125V ac |
| Brand | Molex |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Polysulfone |
| Contact Material | Phosphor Bronze |
| Series | 52808 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin Bismuth over Nickel |
| Number of Contacts | 11 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | Non-ZIF |
Key Features
- Compact design with 1 mm pitch suitable for high-density wiring configurations.
- Connector features 11 female contacts with tin bismuth over nickel plating for durability.
- Polysulfone housing provides excellent mechanical stability and insulation.
- Non-ZIF insertion force ensures secure and reliable contact retention.
- Supports an operating voltage of 125 V AC with a current rating of 500 mA.
- Locking mechanism included to maintain connection integrity under vibration.
- Solder termination compatible with surface mount technology (SMT) assembly.
- Operating temperature range from -20°C to 80°C for versatile environmental use.
Product Description
Molex 52808-1171 is a 1 mm pitch 11 way straight female FPC connector with solder termination featuring a polysulfone housing and phosphor bronze contacts plated with tin bismuth over nickel. Designed for surface mounting, this connector is part of the 52808 series of easy-on FFC/FPC connectors offering a space-saving, compact solution with reliable electrical and mechanical performance.
The chamfered housing ensures correct orientation when inserting the flat flexible cable (FFC), while the movable staggered contacts maintain secure contact retention even under mechanical stress. The non-ZIF insertion force and locking mechanism add to the reliability required for industrial and high-performance applications.
Rated for 125 V AC and 500 mA current, and operating within a temperature range of -20°C to 80°C, this connector supports demanding electrical and environmental conditions. It is ideal for use in automotive navigation and audio systems, digital cameras, home security devices, tablet and notebook PCs, patient monitors, GPS units, smartphones, and other mobile devices requiring dense and dependable wiring harnesses.
The connector supports effective soldering due to its staggered contact design and is RoHS compliant, enhancing its sustainability credentials. Compact 1 mm pitch design suitable for high-density installations. Phosphor bronze contacts with tin bismuth over nickel plating ensure excellent conductivity and longevity.
Polysulfone housing provides robust mechanical strength and dielectric properties. Non-ZIF insertion type with locking mechanism enables secure FPC connection. Surface mount termination allows easy PCB assembly with soldering.
Wide operating temperature range of -20°C to +80°C. Current rating of 500 mA and 125 V AC voltage rating. Single-row configuration with 11 contacts for compact interconnect. Applications include automotive, consumer electronics, medical, and communications sectors.
This product is sourced from Malaysia and conforms to industrial standards. The connector’s durable construction and precise electrical properties make it suitable for use in demanding industrial, laboratory, manufacturing, and commercial environments requiring robust FPC interconnections.
Explore more FPC Connector options or other Molex connectors at EnvMart to find the perfect fit for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 125 V AC.
It has a current rating of 500 mA.
The housing is made from polysulfone, and the contacts are phosphor bronze plated with tin bismuth over nickel.
The operating temperature range is from -20°C to 80°C.
This connector features 11 female contacts.
It uses solder termination, which is compatible with surface mount technology (SMT) assembly.
The pitch of this connector is 1 mm.
Yes, it includes a locking mechanism to maintain connection integrity under vibration.
The orientation of this connector is straight.
It is suitable for applications in automotive navigation, digital cameras, home security devices, and smartphones, among others.
It features a non-ZIF (Zero Insertion Force) insertion type, which helps in secure contact retention.
This product is sourced from Malaysia.
