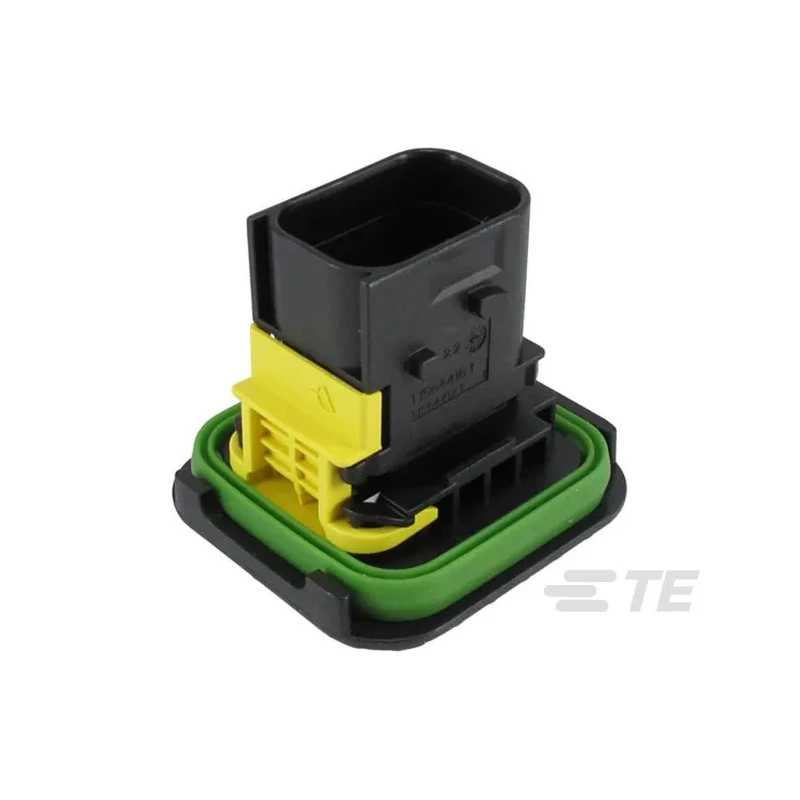

TE Connectivity HDSCS Automotive Connector Female Black Flange 8 Way Crimp Termination 1-1564416-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity HDSCS Automotive Connector Female Black Flange 8 Way Crimp Termination 1-1564416-1

Name: TE Connectivity HDSCS Automotive Connector Female Black Flange 8 Way Crimp Termination 1-1564416-1
Brand: TE Connectivity
SKU: 156342
Price: 4.66 USD
Availability: InStock



Category Automotive Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Black
Current	20A
Height	27mm
Depth	47.1mm
IP Rating	IP67, IP6K9K
Width	32.6mm
Gender	Female
Mount Type	Flange
Housing Material	Fibreglass Reinforced Polybutylene Terephthalate
Series	HDSCS
Termination Type	Crimp
Maximum Operating Temperature	140°C
Sub Type	Tab Housing
Minimum Operating Temperature	-40°C
Number of Rows	2
Standards/Approvals	EU ELV, EU RoHS
Contact Plating	Tin
Number of Contacts	8

Key Features

Designed for heavy-duty automotive and industrial use with environmental sealing.
Black fibreglass reinforced polybutylene terephthalate housing ensures durability.
Features 8 contacts arranged in 2 rows for optimum connectivity.
Female gender connector with flange mount type for secure installation.
Supports a 20A current rating with tin-plated contacts to ensure conductivity and corrosion resistance.
IP67 and IP6K9K rated for protection against dust and water ingress.
Operates reliably in temperature range from -40°C to 140°C.
Conforms to EU ELV and EU RoHS standards for safety and environmental compliance.

Product Description

TE Connectivity 1-1564416-1 HDSCS automotive connector female is engineered for robust and environmentally sealed electrical connections in automotive and industrial environments. Rated for 20A current, this connector ensures dependable power transmission with a reliable crimp termination system.

The black housing is made from fibreglass reinforced polybutylene terephthalate, offering excellent mechanical strength and resistance to harsh environments. Its flange mount type and 8 contact points arranged in 2 rows make it suitable for varied cable-to-cable and cable-to-device applications.

With IP67 and IP6K9K protection ratings, the connector withstands dust, water, and high-pressure cleaning, ensuring longevity and consistent performance. Suitable for operation within -40°C to 140°C temperature range, it meets the demanding standards of automotive electrical systems.

The contacts are tin plated to optimize electrical conductivity and reduce corrosion, compatible with AMP MCP 6.3/4.8K, 2.8, and 1.5K contacts. The component complies with EU ELV and EU RoHS directives, supporting environmental safety and regulatory requirements.

Heavy-duty environmentally sealed automotive connector. Fibreglass reinforced polybutylene terephthalate black housing. 8 contacts arranged in 2 rows, female gender with flange mount. 20A current rating with tin-plated contacts.

IP67 and IP6K9K ingress protection ratings. Operating temperature from -40°C to 140°C. Compliant with EU ELV and EU RoHS standards. Compact form factor: 32.6mm width x 27mm height x 47.1mm depth. Compatible with AMP MCP crimp contacts.

This Automotive Connector is ideal for industrial, automotive, and manufacturing applications requiring secure, durable electrical interfaces. Browse more high-performance connectors and electrical components on EnvMart to optimize your projects.
