HARTING Heavy Duty Power Connector Insert 16A 600V Han A Series Male 10 Contacts 09200102612

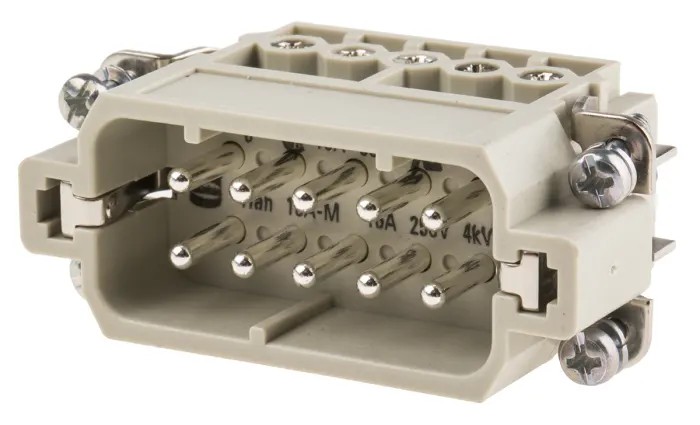

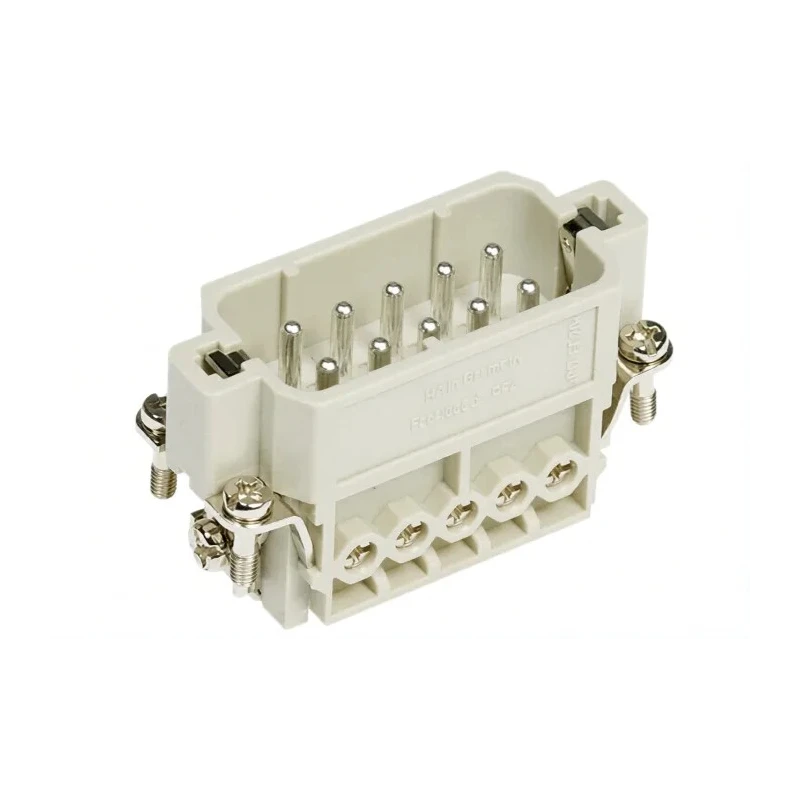

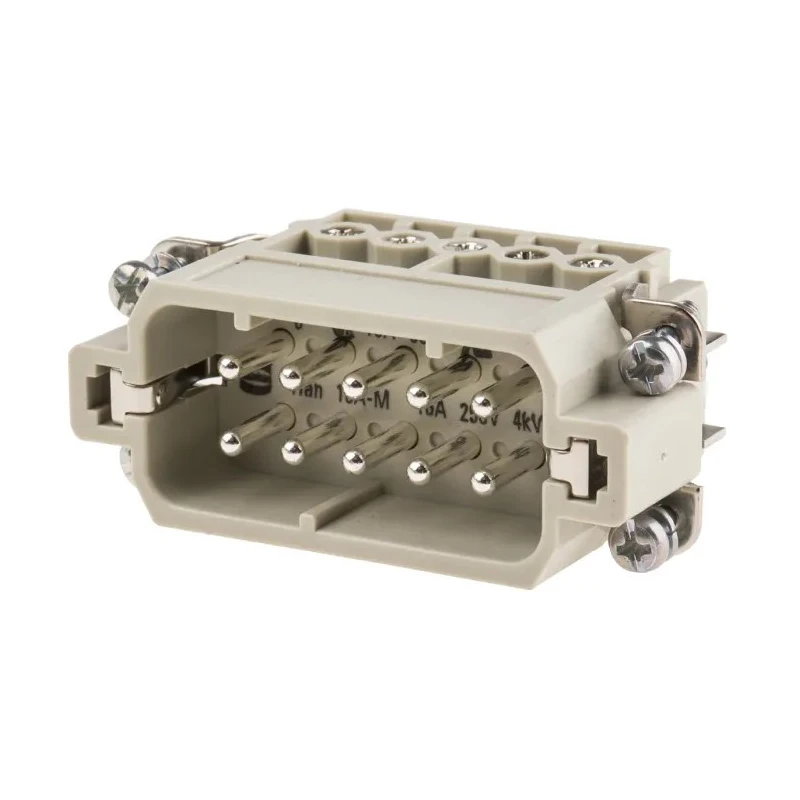

HARTING 09200102612 Heavy Duty Power Connector Insert is designed for industrial multi-pole power distribution at 16 A current and 600 V voltage ratings. This male connector insert features a Han A series configuration with 10 contacts plus protective earth contacts, ensuring reliable electrical connectivity within control cabinets and machinery.

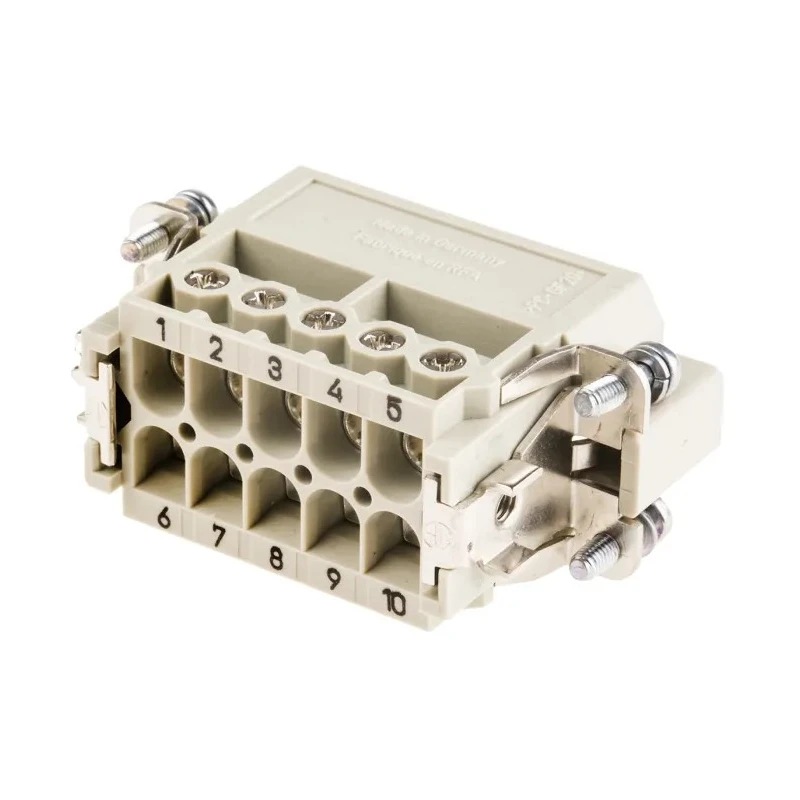

The connector insert accommodates conductors sized between 0.75 mm² and 2.5 mm² using screw termination with defined torque control (0.5 Nm for contacts, 0.8 Nm for earth) to guarantee secure and stable connections. The contact materials are silver-plated copper alloy, providing excellent conductivity and low resistance for efficient power transfer.

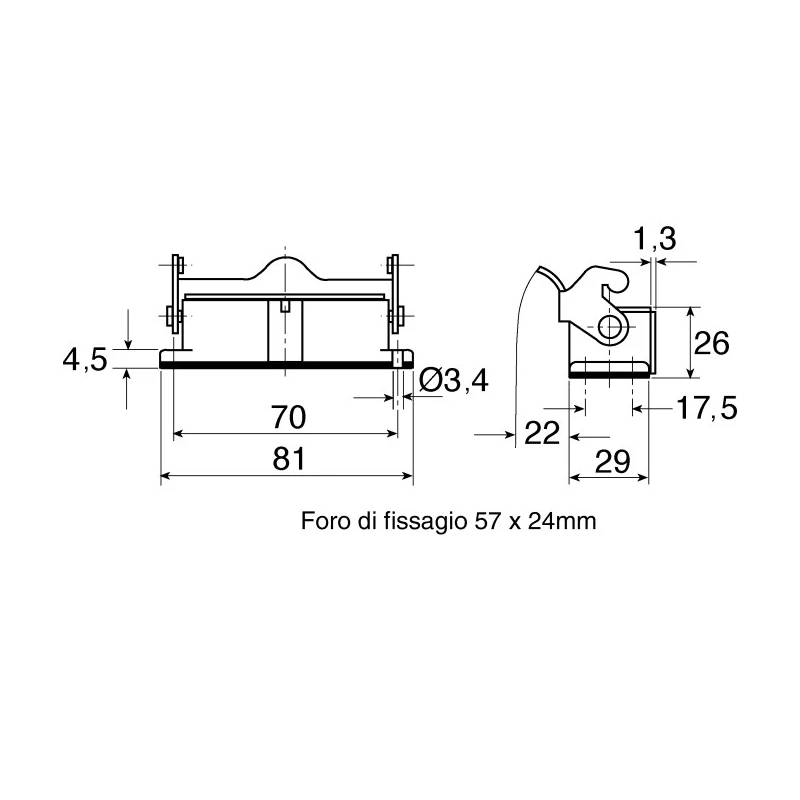

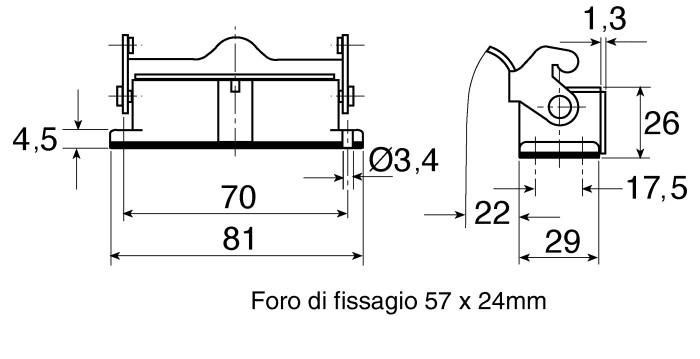

Its panel-mount design with straight orientation allows straightforward integration into existing heavy-duty connector housings and systems. The insert is manufactured from V-0 rated polycarbonate to balance mechanical resilience with electrical insulation, supporting an operating temperature range from −40°C up to +125°C to perform reliably under demanding industrial environmental conditions.

Suitable applications include power distribution in automation cabinets, machine-tool supply connections on panels, electrical interfaces for mobile factory-floor equipment, and electrical modules in test benches. The design supports over 500 mating cycles while maintaining secure contact integrity.

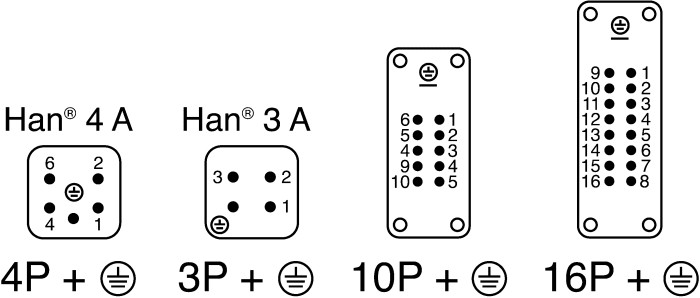

Rated current: 16 A continuous operation at standard industrial voltages. Operating voltage: 600 V for versatile industrial use. Number of contacts: 10 plus protective earth for multi-pole connectivity. Contact material: Silver-plated copper alloy for low contact resistance.

Wire size compatibility: Flexible wire range from 0.75 mm² to 2.5 mm². Mounting: Panel-mount, straight orientation male insert. Durability: Supports 500+ mating cycles ensuring longevity. Temperature range: Operates in harsh conditions from −40°C to +125°C.

Housing material: V-0 rated polycarbonate providing insulation and mechanical strength. Industrial automation, machine tools, test benches, and factory equipment power connections. This HARTING connector insert complies with UL, CSA, and SEV standards but does not carry special RoHS or other certifications.

EnvMart offers this precision engineered heavy-duty power connector insert ideal for demanding industrial power distribution needs. Explore additional heavy duty power connectors and accessories in the EnvMart Electronics & Electricals catalog for complete integrated solutions.
