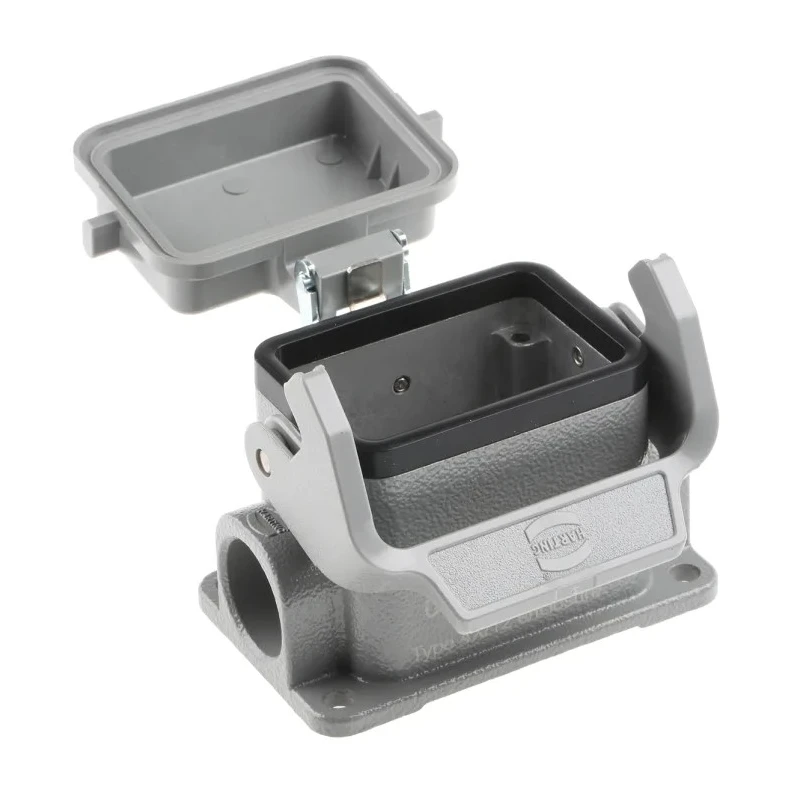

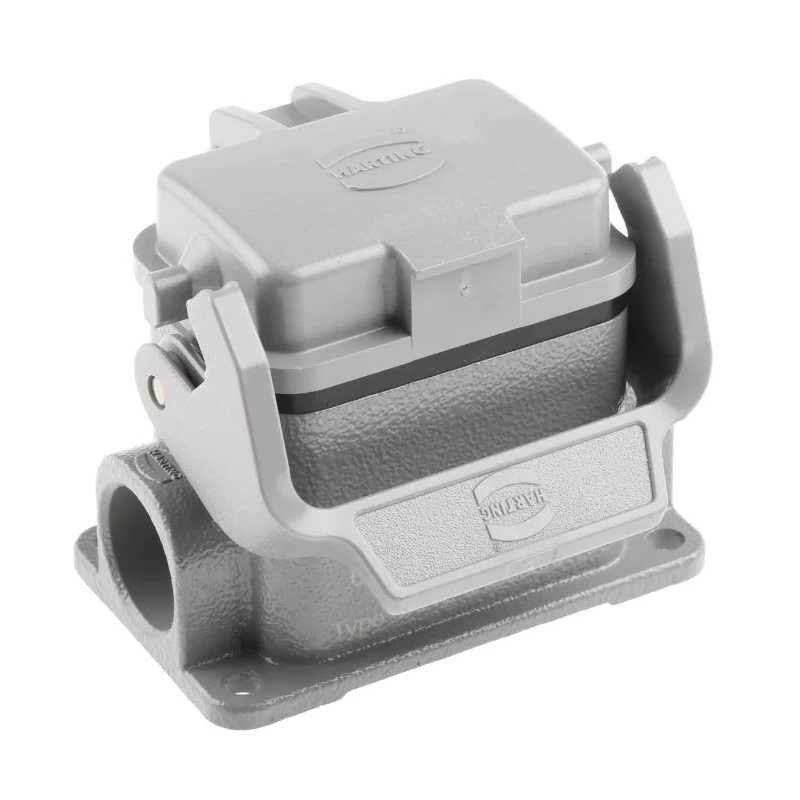

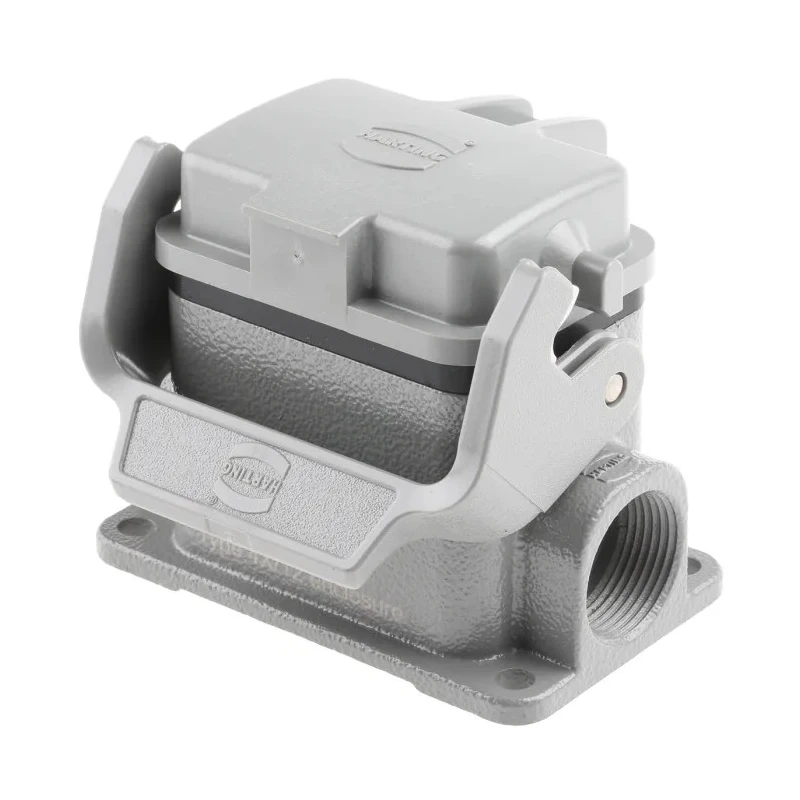

HARTING Han B Range Heavy Duty Power Connector Housing Surface Mount Die Cast Aluminium IP65 1 Lever 6B 09300061256
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Body Material | Die Cast Aluminium |
| IP Rating | IP65 |
| Mount Type | Surface |
| Series | Han B |
| Thread Size | PG16 |
| Sub Type | Connector Housing |
| Locking Type | 1 Lever |
| Cable Entry Angle | Side |
| Number of Levers | 1 |
Key Features
- Constructed from durable die cast aluminium for robust performance.
- Surface mounting type suitable for secure installation.
- Features a single lever locking mechanism for reliable connection.
- Meets IP65 rating ensuring protection against dust and water jets.
- Compatible with Han B series connectors and size 6B housings.
- Side cable entry angle with PG16 thread size for standard cable fittings.
- Manufactured in Germany ensuring high quality and precision.
- Designed for use with Han DD, E, ES, EE, EAV, and Modular series inserts.
Product Description
HARTING 09300061256 heavy duty power connector housing is engineered for demanding industrial environments requiring secure and robust electrical connections. Constructed from premium die cast aluminium, this connector housing features surface mounting capabilities and a reliable single lever locking system for ease of use and longevity.
The housing supports an IP65 ingress protection rating, effectively sealing against dust ingress and water jets, making it ideal for harsh manufacturing and industrial settings. This 6B size housing offers side cable entry with a PG16 thread size, compatible with a variety of cable dimensions and standard fittings, ensuring versatility in installation.
Housings from the Han B series accommodate multiple insert types including Han DD, E, ES, EE, EAV, and Modular series, with the capability to include two Modular series inserts within the 6B housings. Note that only stock no. 114-7958 housing is compatible with the Han E AV series.
Designed and manufactured in Germany, this connector housing adheres to rigorous quality standards without additional certifications listed. It is not recommended to mate or unmate these connectors under electrical load and they feature polarization to prevent incorrect connections when arranged in a line.
Constructed from die cast aluminium for durability. IP65 protection rating suitable for industrial environments. Single lever locking mechanism for secure mating. Surface mount type with side cable entry and PG16 thread.
Compatible with Han B series and various insert options. Manufactured in Germany with high precision standards. Polarized design prevents incorrect connector mating. Recommended for industrial, manufacturing, and electronic component applications.
This product is included in the EnvMart Heavy Duty Power Connector Housing category, designed to meet the needs of industrial electrical connections where performance and reliability are essential.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector housing has an IP65 rating, providing protection against dust ingress and water jets, making it suitable for industrial environments.
It is constructed from die cast aluminium, which offers robust performance in demanding industrial settings.
This model features a surface mount type, allowing for secure installation in various applications.
It utilizes a single lever locking mechanism, ensuring a reliable connection when mated.
The cable entry has a PG16 thread size, which is compatible with standard cable fittings.
This housing is compatible with Han B series connectors, including various insert types such as Han DD, E, ES, EE, EAV, and Modular series inserts.
The cable entry angle for this connector housing is side entry, facilitating easier installation in tight spaces.
It is manufactured in Germany, ensuring adherence to high quality and precision standards.
It is not recommended to mate or unmate these connectors under electrical load due to safety considerations.
This model is designed for use in industrial, manufacturing, and electronic component applications where secure electrical connections are essential.
Yes, it features polarization to prevent incorrect connections when arranged in a line, enhancing usability.
This connector housing has one lever, which is part of its locking mechanism for secure mating.
