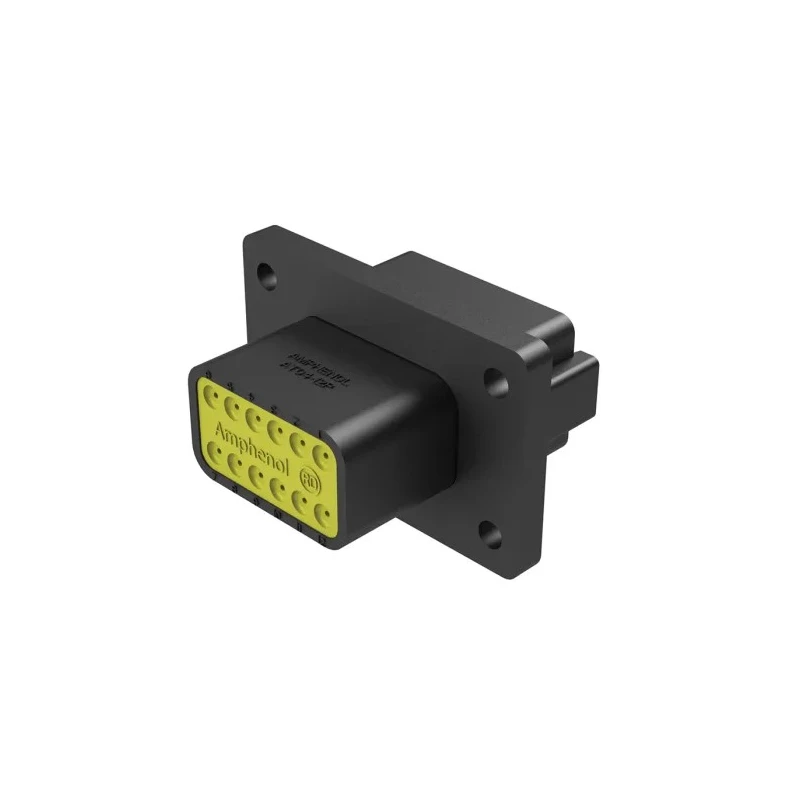

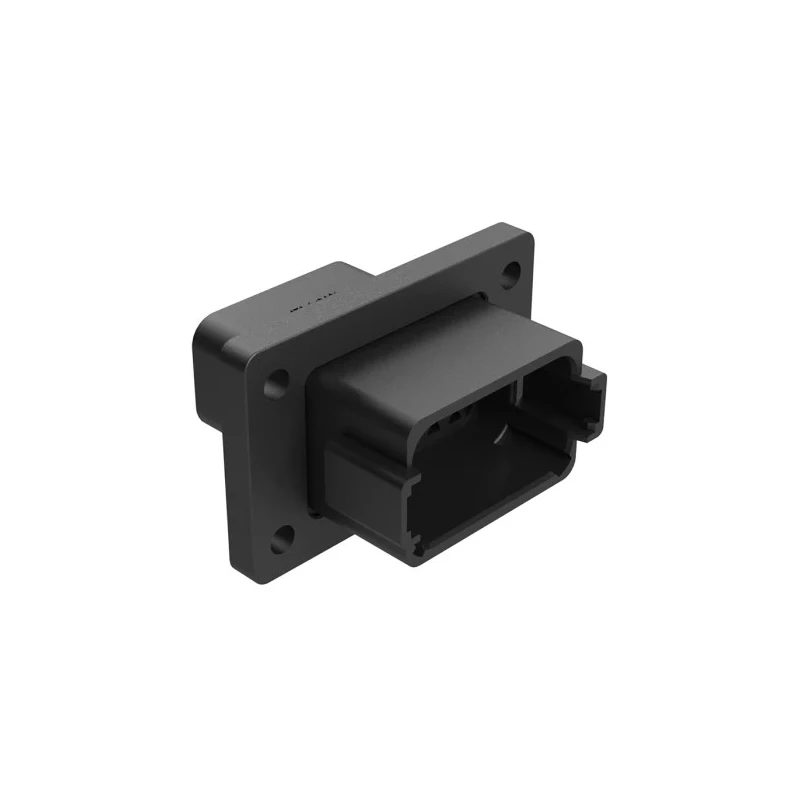

Amphenol Industrial Automotive Connector Male Black Panel Mount 12 Way Crimp Termination 13A Current AT04-12PA-CL06
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 0.145in |
| Brand | Amphenol Industrial |
| Colour | Black |
| Current | 13A |
| Height | 35.6mm |
| Model | AT04-12PA-CL06 |
| Depth | 45.8mm |
| IP Rating | IP67 |
| Width | 55.4mm |
| Gender | Male |
| Mount Type | Panel Mount |
| Housing Material | Thermoplastic |
| Series | AT04 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Automotive Connector |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Standards/Approvals | RoHS |
| Number of Contacts | 12 |
Key Features
- 12-way male automotive connector with crimp termination.
- Panel mount design suitable for robust installations.
- Black thermoplastic housing with integrated latch for secure mating.
- Operates between -55°C to 125°C ensuring durability in harsh environments.
- IP67 rated for protection against dust and water ingress.
- Features silicone elastomer rear seals for environmental sealing.
- Secondary wedge locks secure contacts, sold separately.
- Compact size with dimensions 55.4mm width, 45.8mm depth, and 35.6mm height.
Product Description
Amphenol Industrial AT04-12PA-CL06 is a high-performance automotive male connector featuring 12 contact crimp termination rated at 13 amps. This panel mount connector has a robust black thermoplastic rectangular housing integrated with a latch for secure mating, making it suitable for demanding interconnect architectures.
The connector complies with RoHS standards and offers an IP67 rating, ensuring excellent protection against dust and water ingress. It operates reliably across a wide temperature range from -55°C to 125°C, ideal for harsh automotive and industrial environments.
The connector includes silicone elastomer rear seals that provide enhanced environmental sealing. Contacts are held firmly by secondary wedge locks, sold separately, enhancing connector reliability under vibration and mechanical stress.
Measuring 55.4mm in width, 45.8mm in depth, and 35.6mm in height, with a diameter of 0.145 inches for contacts, it is engineered for compact integration. The connector features 2 rows of 12 contacts and supports a 13A continuous current capacity, perfect for heavy-duty transportation, marine, military, diagnostic, agricultural, and alternative energy applications.
12-way male automotive connector with crimp termination. Panel mount type for easy installation on panels. Thermoplastic housing with integrated latch prevents accidental disengagement. Wide operating temperature range from -55°C to 125°C.
IP67 protection rating against dust and water ingress. Silicone elastomer rear seals for enhanced environmental protection. Secondary wedge locks secure contacts firmly (sold separately). Dimensions: 55.4mm (W) x 45.8mm (D) x 35.6mm (H).
Compliance with RoHS environmental standards. Ideal for industrial, heavy-duty, automotive, marine, military, and alternative energy uses.
This Amphenol Industrial AT04 series connector is an essential component for reliable electrical connectivity in rugged automotive and industrial environments, ensuring continuous electrical performance and mechanical security. Explore more Automotive Connectors and industrial electrical components with EnvMart for your specific application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This automotive connector is rated for a continuous current of 13 amps.
It has an IP67 rating, providing protection against dust and water ingress.
The connector measures 55.4mm in width, 45.8mm in depth, and 35.6mm in height.
It operates reliably within a temperature range of -55°C to 125°C.
This model features crimp termination for secure electrical connections.
This connector has 12 contacts arranged in 2 rows.
The housing is made from black thermoplastic material, ensuring a robust design.
Secondary wedge locks are sold separately to secure the contacts firmly.
Yes, it complies with RoHS environmental standards.
It is suitable for heavy-duty transportation, marine, military, diagnostic, agricultural, and alternative energy applications.
The contacts have a diameter of 0.145 inches.
It includes silicone elastomer rear seals that provide enhanced environmental sealing.
