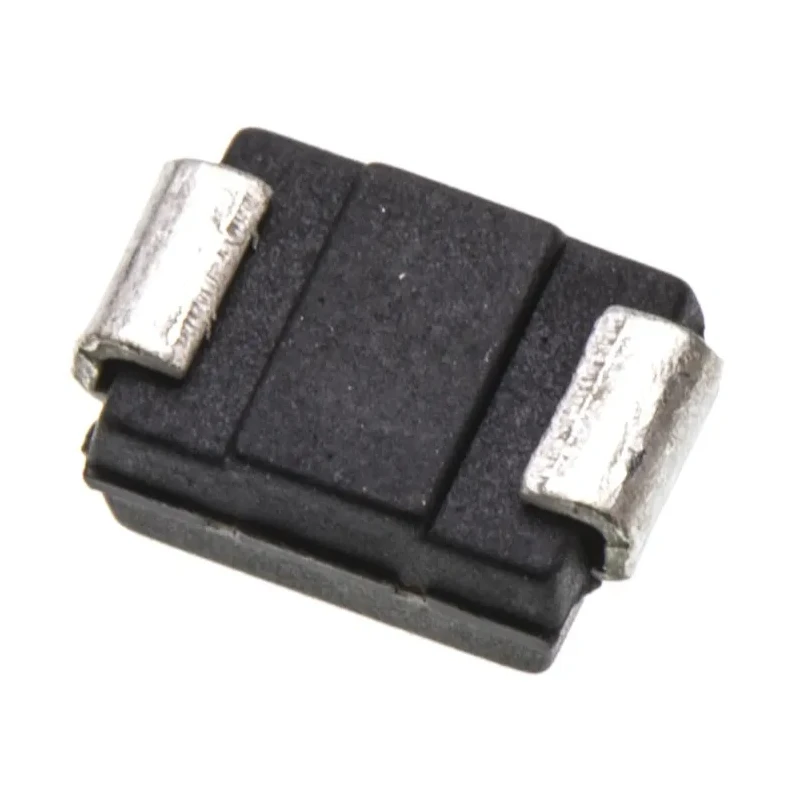

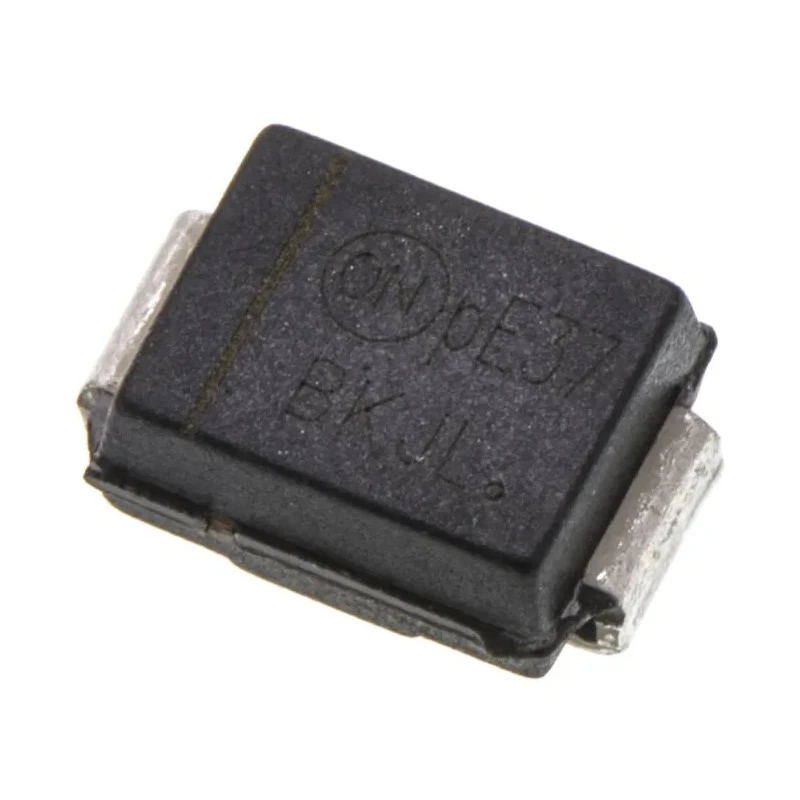

onsemi 40 V 2 A Surface Mount Schottky Diode DO-214AA Package MBRS2040LT3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.13mm |
| Length | 4.32mm |
| Model | MBRS2040LT3G |
| Width | 3.56mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 800μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 70A |
| Maximum Forward Voltage Vf | 430mV |
| Nexperia 40 V 2 A Diode Schottky 2-Pin SOD-128Brand | Nexperia |
Key Features
- Maximum continuous forward current is 2 amperes.
- Peak reverse repetitive voltage rating is 40 volts.
- Low forward voltage of 430 millivolts for high efficiency.
- Peak non-repetitive forward surge current can reach 70 amperes.
- Operating temperature range from -55°C to 125°C.
- Compact DO-214AA epoxy moulded package measuring 4.32 mm in length.
- Lightweight design with a package weight of approximately 11.7 mg.
- Meets AEC-Q101 automotive standard for reliable automotive use.
Product Description
onsemi MBRS2040LT3G is a high-performance Schottky barrier diode designed for power rectification in electronic circuits, available in a compact DO-214AA surface mount package. It operates with a maximum continuous forward current of 2 A and can withstand a reverse repetitive peak voltage of up to 40 V, making it suitable for low-voltage, high-frequency rectification applications.
This diode features a low forward voltage drop of approximately 430 mV, which contributes to improved efficiency and reduced heat generation. It has excellent surge current handling capability, tolerating peak non-repetitive forward surges up to 70 A. The operating temperature range spans from -55°C to 125°C, allowing reliable performance in harsh conditions.
The epoxy moulded DO-214AA case provides protection and enables automated assembly, with dimensions of 4.32 mm length, 3.56 mm width, and 2.13 mm height. The device weighs approximately 11.7 mg, contributing to lightweight circuit designs. This product is automotive-qualified according to the AEC-Q101 standard, ensuring suitability for automotive electronic applications.
The MBRS2040LT3G is ideal for use in power supply rectification, freewheeling diodes in DC motor drives, polarity protection circuits, and various consumer and industrial electronics where compact size and efficiency are priorities.
Maximum continuous forward current is 2 amperes. Peak reverse repetitive voltage rating is 40 volts. Low forward voltage of 430 millivolts for high efficiency. Peak non-repetitive forward surge current can reach 70 amperes.
Operating temperature range from -55°C to 125°C. Compact DO-214AA epoxy moulded package measuring 4.32 mm in length. Lightweight design with a package weight of approximately 11.7 mg. Meets AEC-Q101 automotive standard for reliable automotive use.
Pin count of 2 for simple circuit integration.
This diode supports industrial, automotive, electronics manufacturing, and high-frequency switching applications. Its surface mount configuration makes it perfect for automated manufacturing processes and space-saving PCB designs. Explore more semiconductors and Schottky diodes on EnvMart for enhanced industrial efficiency.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 2 amperes.
It features a low forward voltage drop of approximately 430 millivolts.
The diode can tolerate peak non-repetitive forward surge currents of up to 70 amperes.
The operating temperature range for this model spans from -55°C to 125°C.
The dimensions of the DO-214AA package are 4.32 mm in length, 3.56 mm in width, and 2.13 mm in height.
This unit weighs approximately 11.7 mg, contributing to lightweight circuit designs.
It has a pin count of 2, allowing for simple circuit integration.
This model meets the AEC-Q101 automotive standard, ensuring its reliability for automotive applications.
It is suitable for power supply rectification, freewheeling diodes in DC motor drives, and polarity protection circuits.
This device is a Schottky rectifier, known for its efficiency in low-voltage, high-frequency applications.
The country of origin for this Schottky diode is India.
