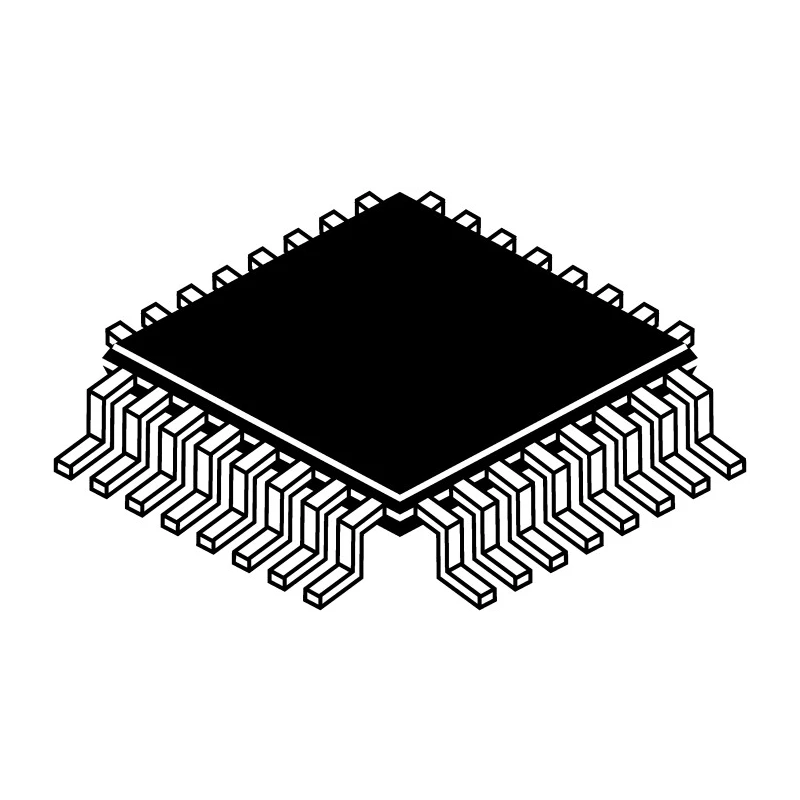

STMicroelectronics 32-Bit ARM Cortex M0 Microcontroller STM32F051K4T6 48 MHz, 16kB FLASH, 32-Pin LQFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 7.2mm |
| Model | STM32F051K4T6 |
| Width | 7.2mm |
| Mount Type | Surface |
| Series | STM32F0 |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 4kB |
| Pin Count | 32 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 357mW |
| Minimum Supply Voltage | 2V |
| Device Core | ARM Cortex M0 |
| Program Memory Size | 16kB |
| Maximum Clock Frequency | 48MHz |
| Analogue Comparators | 2 |
| Number of Timers | 11 |
| Instruction Set Architecture | MCU |
| ADCs | 13 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 12 Bit |
| Temperature ranges | -40°C to +85°C or -40°C to +105°C temperature |
| Cortex™-M0 | 48MHz Frequency |
| STM32F05 | Flash memory up to 32kB, SRAM up to 4kB |
Key Features
- Employs ARM Cortex-M0 32-bit RISC core for efficient processing.
- Operates at a maximum clock frequency of 48 MHz.
- Includes 16kB of high-speed flash program memory.
- Features 4kB of RAM for data handling.
- Supports single 12-bit DAC and 13 channels of 12-bit ADCs.
- Operates within 2V to 3.6V supply voltage range for versatile applications.
- Temperature range from -40°C to +85°C supports harsh environment use.
- Equipped with 11 timers including 16-bit and 32-bit timers with PWM capability.
Product Description
The STMicroelectronics STM32F051K4T6 is a 32-bit ARM Cortex-M0 microcontroller designed for real-time applications and low power consumption. Operating at a frequency of up to 48 MHz, it incorporates 16kB of high-speed FLASH memory and 4kB of RAM to support efficient program execution and data processing.
This microcontroller features a 32-pin LQFP package that measures 7.2 mm by 7.2 mm with a height of 1.45 mm, making it suitable for compact electronic designs. It supports a broad voltage supply range from 2V to 3.6V, enabling operation in battery-powered and embedded systems.
The STM32F051K4T6 includes a rich set of peripherals such as 13 channels of 12-bit ADC, one 12-bit DAC, and 11 timers including 16-bit and 32-bit timers with advanced PWM for motor control applications. With operational temperature ratings from -40°C to +85°C, it is well-suited for industrial environments.
This microcontroller is ideal for use in HVAC systems, consumer appliances, handheld equipment, application control, and PC peripheral devices. Its ARM Cortex-M0 core architecture offers a balance of performance and power efficiency suitable for embedded system development.
Employs ARM Cortex-M0 32-bit RISC core at 48 MHz. 16kB FLASH and 4kB RAM support complex applications. Rich peripheral set including ADC, DAC, and multiple timers. Compact LQFP 32-pin package with 7.2 mm dimensions. Low power consumption with wide voltage and temperature ranges.
Application versatility from consumer to industrial. Explore more Microcontrollers and embedded solutions on EnvMart for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STM32F051K4T6 operates at a maximum clock frequency of 48 MHz.
It includes 16kB of high-speed FLASH program memory.
This microcontroller supports 13 channels of 12-bit ADCs.
It operates within a supply voltage range of 2V to 3.6V.
The operational temperature range is from -40°C to +85°C.
It is packaged in a 32-pin LQFP with dimensions of 7.2 mm x 7.2 mm and a height of 1.45 mm.
This model has 4kB of RAM for data handling.
It is equipped with 11 timers, including both 16-bit and 32-bit timers with PWM capability.
Yes, it includes one 12-bit DAC.
The maximum power dissipation is 357mW.
It employs an ARM Cortex-M0 32-bit RISC core.
This microcontroller is suitable for applications in HVAC systems, consumer appliances, handheld equipment, application control, and PC peripheral devices.
