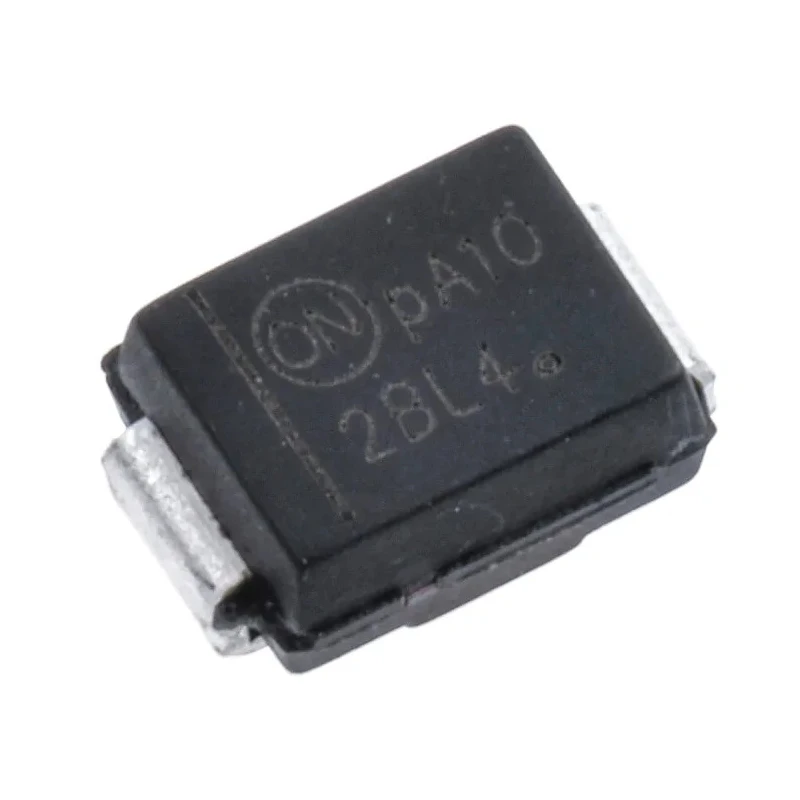

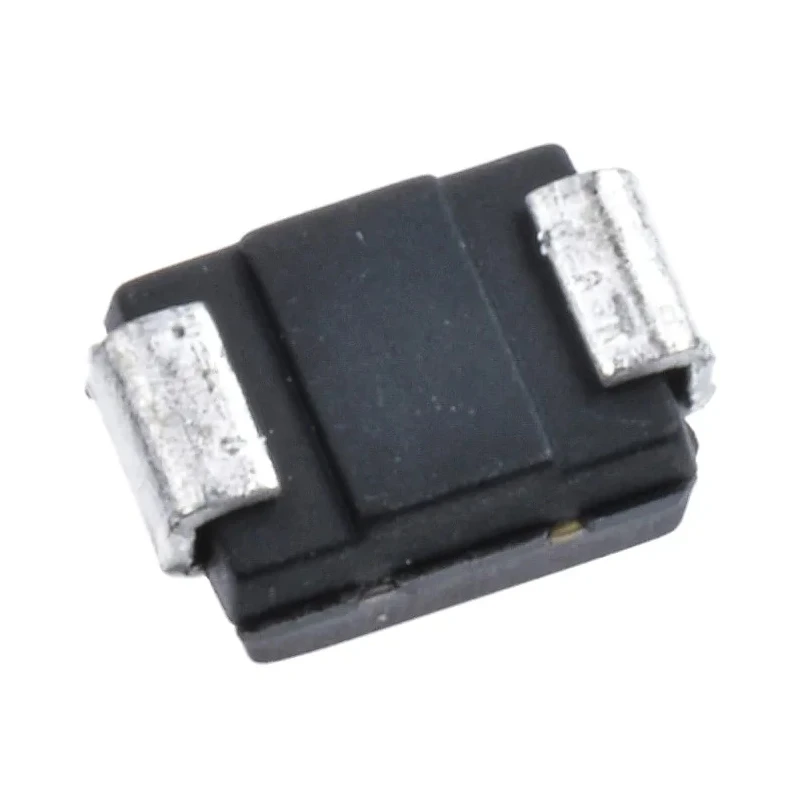

onsemi 40 V 2 A Surface Mount Schottky Diode DO-214AA MBRS240LT3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.13mm |
| Length | 4.32mm |
| Model | MBRS240LT3G |
| Width | 3.56mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 25A |
| Maximum Forward Voltage Vf | 540mV |
Key Features
- Designed for low forward voltage drop and high efficiency.
- Suitable for high-frequency rectification applications.
- Compact surface mount DO-214AA package ideal for automated assembly.
- Operating temperature range from -55°C to 125°C.
- Peak non-repetitive forward surge current up to 25 A.
- Automotive grade with AEC-Q101 qualification.
- Epoxy moulded lightweight package weighing approximately 11.7 mg.
- Low peak reverse current of 2 mA for improved reliability.
Product Description
onsemi MBRS240LT3G is a surface mount Schottky diode packaged in DO-214AA format, engineered for efficient power rectification at 40 V and 2 A current ratings. This diode uses the Schottky barrier principle with barrier metal technology to optimize forward voltage drop and reverse current trade-offs, making it ideal for high-frequency and low voltage applications.
Its compact size with dimensions 4.32 mm length, 3.56 mm width, and 2.13 mm height allows integration in dense circuit designs. The diode supports a wide operating temperature range from -55°C to 125°C, ensuring performance in industrial, automotive, and consumer electronic environments.
This diode is well suited for freewheeling and polarity protection in surface mount circuits where high efficiency and low energy loss are critical. The MBRS240LT3G’s peak non-repetitive forward surge current rating of 25 A provides robustness against voltage spikes and transients.
The device is automotive qualified with the AEC-Q101 standard, guaranteeing high reliability and quality. The epoxy moulded case helps with mechanical stress protection, while the lightweight package weight of approximately 11.7 mg facilitates automated assembly processes.
Use cases include industrial power supplies, automotive electronics, power management circuits, and any application demanding compact, high-efficiency Schottky diode rectification. Its surface mount DO-214AA form factor is compatible with standard automated PCB assembly lines.
Designed for low forward voltage drop and high efficiency. Suitable for high-frequency rectification applications. Compact surface mount DO-214AA package ideal for automated assembly. Operating temperature range from -55°C to 125°C.
Peak non-repetitive forward surge current up to 25 A. Automotive grade with AEC-Q101 qualification. Epoxy moulded lightweight package weighing approximately 11.7 mg. Low peak reverse current of 2 mA for improved reliability.
High mechanical stress protection for durability in demanding conditions. Explore more semiconductor components and Schottky diodes at EnvMart for reliable industrial and automotive applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this Schottky diode is 2 A.
The peak reverse repetitive voltage for this model is 40 V.
The dimensions of the DO-214AA package are 4.32 mm in length, 3.56 mm in width, and 2.13 mm in height.
This diode operates within a temperature range of -55°C to 125°C.
The peak non-repetitive forward surge current rating is 25 A.
The peak reverse current for this diode is 2 mA.
Yes, this diode is automotive grade and complies with the AEC-Q101 standard.
This diode supports surface mounting.
This model is suitable for applications such as industrial power supplies, automotive electronics, and power management circuits.
The maximum forward voltage drop for this diode is 540 mV.
The epoxy moulded package weighs approximately 11.7 mg.
This diode has a pin count of 2.
