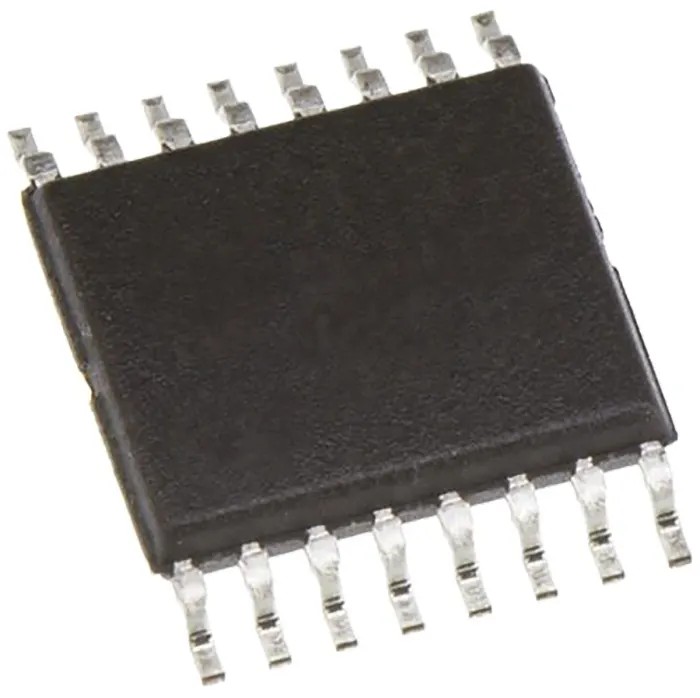

DiodesZetex 7-Input MOSFET, 16-Pin TSSOP, Surface Mount, ULN Logic Family ULN2003V12T16-13

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex 7-Input MOSFET, 16-Pin TSSOP, Surface Mount, ULN Logic Family ULN2003V12T16-13

Name: DiodesZetex 7-Input MOSFET, 16-Pin TSSOP, Surface Mount, ULN Logic Family ULN2003V12T16-13
Brand: DiodesZetex
SKU: 136771
Price: 0.32 USD
Availability: InStock



Category MOSFET Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	1.08mm
Length	5.1mm
Model	ULN2003V12T16-13
Mount Type	Surface
Output type	Voltage
Input Type	CMOS
Maximum Operating Temperature	125°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Pin Count	16
Maximum Supply Voltage	5V
Logic Family	ULN
Minimum Supply Voltage	3.3V
Maximum High Level Output Current	700mA
Maximum Low Level Output Current	140mA
Number of Inputs per Gate	7

Key Features

Device features 7 CMOS input channels for versatile usage.
Comes in a 16-pin TSSOP surface mount package.
Operates within -40°C to 125°C temperature range.
Minimum supply voltage of 3.3 V, maximum of 5 V.
Maximum high-level output current of 700 mA.
Maximum low-level output current of 140 mA.
Does not include Schmitt Trigger input.
Complies with RoHS standards and manufactured in China.

Product Description

DiodesZetex ULN2003V12T16-13 is a high-performance 7-input MOSFET logic IC housed in a compact 16-pin TSSOP surface mount package. This device belongs to the ULN logic family and is widely used for driving inductive loads in industrial electronic applications, including power management and peripheral device control.

The component operates efficiently across a wide temperature range from -40°C up to 125°C, making it suitable for harsh and demanding environments. It supports a minimum supply voltage of 3.3V and can operate safely up to a maximum supply voltage of 5V, providing flexibility for integration in various electronic circuits.

This MOSFET logic IC features low-level and high-level output current ratings of 140mA and 700mA respectively, ensuring robust signal driving and reliable switching performance. Its 16-pin TSSOP package is designed for surface mounting to facilitate automated PCB assembly and compact design requirements.

The device does not include a Schmitt Trigger input, aligning it with specific logic signal requirements. It uses CMOS input logic, consistent with modern semiconductor technologies, enhancing power efficiency and signal integrity.

Manufactured in China, this product complies with RoHS standards, ensuring environmental friendliness and adherence to global electronics manufacturing best practices. This MOSFET logic IC is ideal for industrial electronics, including power drivers and inductive load control.

Typical applications include relay drivers, logic gates, and multi-channel peripheral driving in manufacturing and automotive electronics. Its compact surface mount TSSOP form factor supports high-density PCB integration.

The wide supply voltage and output current range make it adaptable for diverse electronic and control systems.

Explore more high-quality semiconductor components and MOSFET solutions in the Electronics & Electricals category on EnvMart to support your industrial and commercial projects efficiently.
