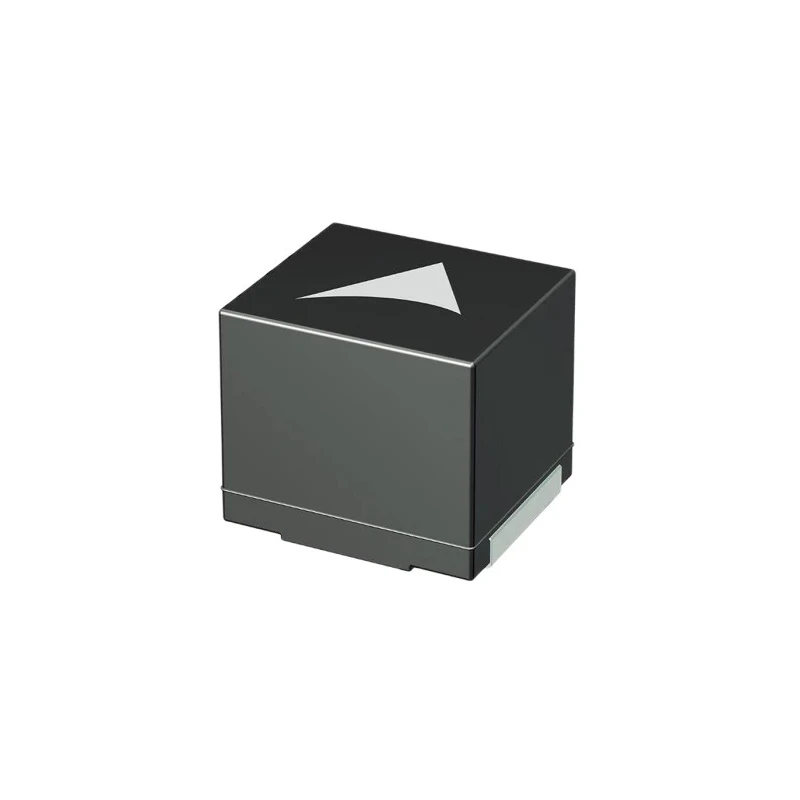

TDK SIMID 2220 Unshielded Wirewound Surface Mount Inductor 100 μH ±10% 510 mA Idc Q20 B82442T1104K050
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 5mm |
| Length | 5.6mm |
| Model | B82442T1104K050 |
| Depth | 5mm |
| Packaging | Tape & Reel |
| Series | SIMID |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 100μH |
| Standards/Approvals | RoHS |
| Package/Case | 2220 |
| Maximum DC Current | 510mA |
| Pin Count | 2 |
| Maximum DC Resistance | 990mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 6.1MHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
| High Inductance values | 1 μH to 10000 μH |
Key Features
- Constructed with a ferrite core for stable magnetic performance.
- Unshielded design suitable for compact SMT applications.
- Compliant with automotive standard AEC-Q200 for reliability.
- Operates within temperature range from -55°C to 150°C.
- Maximum DC resistance of 990 mΩ ensures low power loss.
- Available in a 2220 package size with 2 pins for solder termination.
- RoHS compatible and halogen-free, supporting lead-free reflow soldering.
- Maximum self-resonant frequency of 6.1 MHz for efficient filtering.
Product Description
The TDK B82442T1104K050 is a high-quality wirewound surface mount inductor from the SIMID series, featuring a ferrite core for effective magnetic flux handling and enhanced stability. Designed for use in compact electronic assemblies, this 2220 size inductor provides an inductance of 100 μH with a tolerance of ±10%, making it suitable for a variety of filtering and energy storage applications.
This SIMID series inductor supports a maximum DC current rating of 510 mA and maintains low power dissipation with a maximum DC resistance of 990 mΩ. Its construction is optimized for high reliability, complying with the automotive AEC-Q200 standard, suitable for use in automotive, telecommunications, and industrial electronics.
With a temperature operating range from -55°C to 150°C, it withstands diverse environmental conditions, while the unshielded and moulded wirewound design allows for stable operation and reduced electromagnetic interference. The device has a quality factor (Q) of 20 and a maximum self-resonant frequency of 6.1 MHz, ensuring efficient performance in high-frequency circuits.
The inductor is packaged in a tape and reel format for automated pick-and-place assembly, with a 2-pin solder termination style compatible with lead-free reflow soldering processes as per JEDEC J-STD-020 standards. It is environmentally compliant with RoHS and is halogen-free, promoting safe and sustainable manufacturing.
Industrial and commercial applications include power supply filtering, DC/DC converters, voltage coupling and decoupling, automotive electronics, telecommunications equipment, and consumer electronics.
Constructed with ferrite core material for magnetic performance. Temperature range from -55°C to 150°C for diverse applications. RoHS compliant and halogen-free for environmental safety. Automotive standard AEC-Q200 ensures automotive grade reliability.
Wirewound construction supporting high current handling. Packaged in tape and reel for efficient surface mount assembly.
For a comprehensive range of Surface Mount Inductors and electronic components, explore the related categories and brands at EnvMart, your industrial and electronics component marketplace.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance of 100 μH with a tolerance of ±10%.
The maximum DC current rating for this inductor is 510 mA.
It can operate at a maximum temperature of 150°C.
The maximum self-resonant frequency is 6.1 MHz, which allows for efficient filtering in high-frequency applications.
The inductor has a height of 5 mm, a length of 5.6 mm, and a depth of 5 mm.
It is constructed with a ferrite core, which enhances its magnetic performance.
The termination style is solder, designed for automated pick-and-place assembly.
Yes, it complies with the automotive standard AEC-Q200, ensuring reliability for automotive applications.
The maximum DC resistance is 990 mΩ, which helps in maintaining low power loss.
It is packaged in a tape and reel format, suitable for surface mount technology.
This model is RoHS compliant and halogen-free, supporting safe and sustainable manufacturing practices.
It is suitable for applications such as power supply filtering, DC/DC converters, and automotive electronics.
